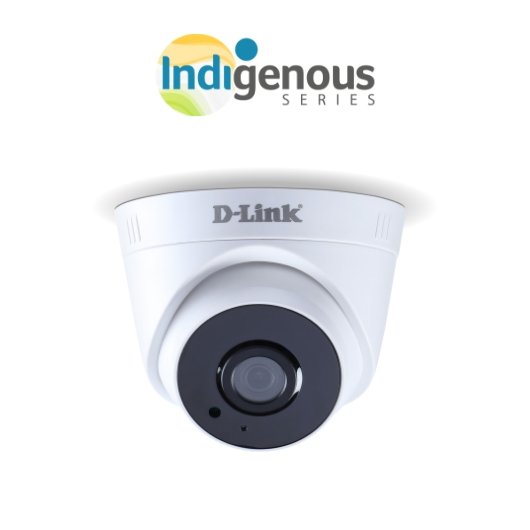

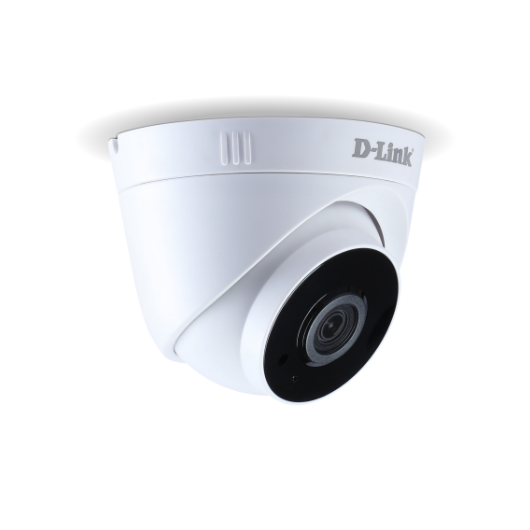

D-Link DCS-F5612-L1 | 2MP Dome IP Camera with Audio | 3.6mm Fixed Lens | Full HD 1920×1080 Resolution | ROI | Dual Stream Support | IR Range up to 30m
The D-Link DCS-F5612-L1 2MP Dome IP Camera delivers crystal-clear Full HD 1080p video with built-in audio, DWDR, 3DNR, and smart surveillance features. Featuring IR night vision up to 30m, Defog, Region of Interest (ROI), and Day/Night (ICR) capabilities, this IP camera ensures round-the-clock security with dual-stream support for efficient monitoring and recording.
The D-Link DCS-F5612-L1 2MP Dome IP Camera is a high-performance surveillance solution designed for homes, offices, and business environments. With a 2MP CMOS sensor, it provides Full HD 1080p resolution, ensuring sharp and detailed video monitoring.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DCS-F5612-L1 is equipped with IR night vision up to 30 meters, the camera delivers clear footage even in complete darkness. Its DWDR (Digital Wide Dynamic Range) and 3D Noise Reduction (3DNR) help enhance video clarity in low-light and high-contrast environments. The Day/Night (ICR) function ensures seamless transitions between lighting conditions, providing consistent image quality 24/7.
This IP camera includes smart surveillance functions, allowing for proactive security monitoring. Defog technology improves visibility in foggy conditions, while Region of Interest (ROI) settings help focus on key areas, optimizing bandwidth and storage usage.
D-Link DCS-F5612-L1 comes with dual-stream support, the DCS-F5612-L1 enables efficient bandwidth management, making it ideal for remote monitoring and recording. The built-in audio function further enhances security by capturing ambient sounds, providing additional context to surveillance footage.
D-Link DCS-F5612-L1 has a compact dome design makes it a discreet yet powerful security solution, ideal for indoor and semi-outdoor installations. Whether for retail stores, offices, or residential spaces, this smart IP camera ensures high-quality surveillance with advanced security features.
Key Features:
✔ 2MP Full HD Video – Captures sharp 1920×1080 resolution for detailed surveillance.
✔ 3.6mm Fixed Lens – Wide-angle view for comprehensive area coverage.
✔ IR Night Vision (Up to 30m) – Ensures clear video even in complete darkness.
✔ DWDR & 3DNR – Enhances image clarity in high-contrast and low-light conditions.
✔ Day/Night (ICR) Switching – Automatically adjusts for optimal image quality 24/7.
✔ Smart Surveillance Functions – Advanced analytics for proactive security monitoring.
✔ Defog & Region of Interest (ROI) – Improves visibility and optimizes storage efficiency.
✔ Dual Stream Support – Efficient bandwidth usage for remote monitoring and recording.
✔ Built-in Audio – Captures ambient sounds for enhanced situational awareness.
| Category | Details |
|---|---|
| Image Sensor | 1/2.9” 2MP Progressive CMOS Sensor |
| Effective Pixels | 1920(H) x 1080(V) |
| Minimum Illumination | Color: 0.01 Lux @F1.2; B/W: 0.001 Lux @F1.2 |
| S/N Ratio | >60dB |
| IR Distance | Up to 30 meters |
| Shutter Speed | Auto, Manual Mode: 1/50 sec to 1/10000 sec |
| DWDR | Yes |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 3 Array LEDs |
Lens Specifications
| Category | Details |
|---|---|
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal: 74°; Vertical: 58°; Diagonal: 88° |
| Focus Control | Fixed |
Video Specifications
| Category | Details |
|---|---|
| Compression | H.264 / H.265 |
| Streaming Capability | 2 Streams |
| Resolution | 1080P (1920×1080), 720P (1280×720), D1 (704×576/704×480), VGA (640×480), CIF (352×288) |
| Streams | Mainstream: 1080P (1920×1080) @25FPS; Sub Stream: D1/VGA/CIF @25FPS |
| Frame Rate | 2MP @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate Range | 27Kbps ~ 8Mbps |
Key Features
| Category | Details |
|---|---|
| Sensor | 1/2.9” 2MP Progressive CMOS Sensor |
| Lens | 3.6mm Fixed Lens |
| PoE | Enabled |
| Compression | H.264 & H.265, Dual-Stream Encoding |
| IR Distance | Up to 30 meters |
Image Settings
| Category | Details |
|---|---|
| Day/Night | Automatic/Black and White |
| Exposure Mode | Automatic/Manual (1-1/10000) |
| BLC Mode | On/Off |
| HLC Mode | On/Off |
| AGC | Yes |
| Noise Filter | Auto, 2D (1-5 Levels) |
| Digital Zoom | 16X, Area selection with Mouse |
| Anti-Flicker | On/Off |
| I-Frame Interval | 1 to 20 |
| Noise Reduction | Yes |
| White Balance | Yes |
| AE Reference | 1-255 Level |
| AE Sensitivity | 1-10 Level |
| Flip | Off/On |
| IR Reverse Support | Yes |
| Mirror | Off/On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | 4 Private Masking Options |
Network & Audio
| Category | Details |
|---|---|
| Ethernet | 1 x RJ45, 10/100M adaptive |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UDP, RTSP, FTP, DHCP, DDNS, NTP, SMTP, UPnP, Alarm Server |
| Interoperability | ONVIF Profile S |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, One-click Snapshot, One-click Triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | D-Link Vision VMS |
| Smart Phone Support | D-Link Vision APP for iPhone, Android |
| Audio | 1 In |
Event Management
| Category | Details |
|---|---|
| Motion Detection | Yes |
| Video Blind Support | Yes |
| Abnormality Detection | Disk, Disk Error, Disk No Space, Network Cable Disconnected, IP Address Conflict |
| Smart Functions | Human Detection, Line Crossing, Area Intrusion |
| Event Actions | Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot |
Physical & Environmental
| Category | Details |
|---|---|
| Operating Conditions | -30°C ~ +60°C; <90% RH |
| Storage Conditions | -30°C ~ +60°C; <90% RH |
| Ingress Protection | NA |
| Vandalism Protection | NA |
| Power Rating | DC 12V / 1Amp, PoE |
| Power Consumption | Max 12W |
| Dimensions | 109.85mm (W) x 84.42mm (H) |
| Weight | 200g |
Certifications
| Category | Details |
|---|---|
| Product Certification | CE, BIS |
