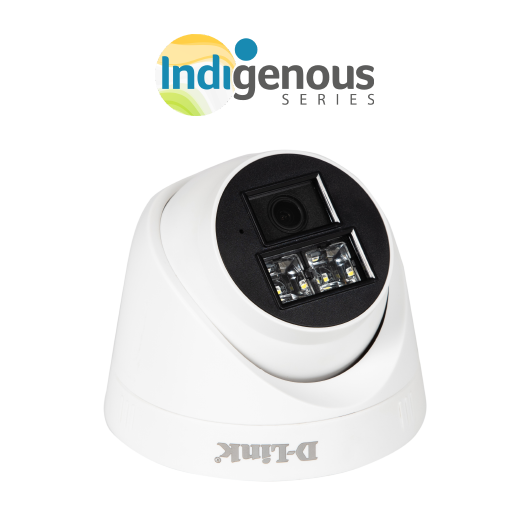

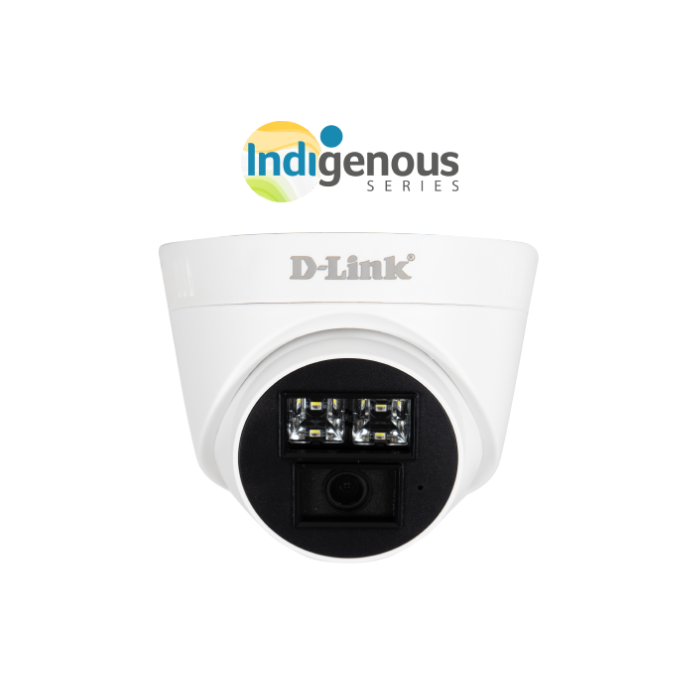

D-Link DCS-F5615-L1C | 5MP IP Dome Colour Camera with Audio | 1/3″ Progressive Scan CMOS Sensor | 2.8mm Fixed Lens | Full HD 2592×1944 Resolution | Smart Functions | Dual Stream Support
The D-Link DCS-F5615-L1C 5MP Dome Color IP Camera provides crystal-clear 2592×1944 Full HD resolution, built-in audio, and intelligent security features. With a 2.8mm fixed lens, 30m white light illumination, DWDR, and 3DNR, it delivers superior low-light and night surveillance performance.
The D-Link DCS-F5615-L1C is a high-performance 5 MP IP dome camera engineered for detailed video surveillance in indoor environments. D-Link DCS-F5615-L1C comes With its 5 MP resolution (2592 x 1944), D-Link DCS-F5615-L1C camera captures crisp, vibrant footage, making it ideal for monitoring offices, retail stores, and residential spaces. D-Link DCS-F5615-L1C has Wide Dynamic Range (WDR) technology ensures balanced image quality in high-contrast lighting, while infrared night vision up to 20 meters enables reliable round-the-clock monitoring.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
DCS-F5615-L1C is Equipped with a built-in microphone, this camera records high-quality audio alongside video for comprehensive security coverage. Compact and discreet, the DCS-F5615-L1C blends seamlessly into its surroundings, while advanced compression formats like H.265 optimize bandwidth and storage usage.
1/2.9″ Progressive scan CMOS Sensor
Key Features:
- 2.8mm Fixed lens
- Up to 2592 x 1944 Full HD resolution
- White light distance up to 30 Mtr
- DWDR, Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Support smart functions
- Support dual stream
- 5 MP High-Resolution Video: Captures sharp, detailed footage.
- Infrared Night Vision: Ensures visibility up to 20 meters in darkness.
- Audio Monitoring: Built-in microphone for enhanced security.
- Wide Dynamic Range (WDR): Balances exposure in complex lighting conditions.
- Compact Dome Design: Discreet and suitable for indoor installations.
- H.265 Compression: Reduces storage and bandwidth needs while maintaining quality.
Camera Specifications
| Category | Details |
|---|---|
| Image Sensor | 1/3″ 5MP Progressive CMOS Sensor |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color: 0.001 Lux @F1.2 |
| S/N Ratio | >60dB |
| White Light Distance | Up to 30 meters |
| Shutter Speed | Auto, Manual Mode: 1/50 sec to 1/10000 sec |
| DWDR | Yes |
| IR On/Off Control | Auto/Manual |
| LEDs | 2pcs White LED |
Lens Specifications
| Category | Details |
|---|---|
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.8mm |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal: 102.5°; Vertical: 55.2°; Diagonal: 122° |
| Focus Control | Fixed |
Video Specifications
| Category | Details |
|---|---|
| Compression | H.264 / H.265 |
| Streaming Capability | 2 Streams |
| Resolution | 5MP (2592×1944), 4MP (2560×1440), 1080P (1920×1080), 720P (1280×720), D1 (704×576), VGA (640×480), CIF (352×288) |
| Streams | Mainstream: 5MP (2592×1944) @20FPS, 4MP (2560×1440)/2MP (1920×1080) @25/30FPS; Sub Stream: D1/VGA/CIF @25/30FPS |
| Frame Rate | 5MP @25/30fps |
| Bit Rate Control | CBR/VBR |
| Bit Rate Range | 221Kbps ~ 8Mbps |
Image Settings
| Category | Details |
|---|---|
| Day/Night | Automatic/Black and White |
| Exposure Mode | Automatic/Manual (1-1/10000) |
| BLC Mode | On/Off |
| Profiles | Auto, Low Light Priority, High Light Priority |
| Noise Filter | Auto, 2D (1-5 Levels) |
| Noise Reduction | Auto, 2D (1-5 Levels) |
| I-Frame Interval | 1 to 20 |
| Digital Zoom | 16X, Area selection with Mouse |
| Anti-Flicker | On/Off |
| White Balance | Yes |
| AE Reference | 1-255 Level |
| AE Sensitivity | 1-10 Level |
| Flip | Off/On |
| Mirror | Off/On |
| Text Overlay | Title, Date & Time, Weekday |
| Privacy Masking | 4 Private Masking Options |
Event Management
| Category | Details |
|---|---|
| Motion Detection | Yes |
| Video Blind | Supported |
| Smart Functions | Human Detection, Line Crossing, Area Intrusion |
| Event Actions | Record alarm, Linkage alarm output, Sound alarm, Email link, Upload FTP, Snapshot |
Pan/Tilt Range
| Category | Details |
|---|---|
| Pan/Tilt Range | Pan: 0° ~360°; Tilt: 0° ~90°; Rotation: 0° ~360° |
Network & Audio
| Category | Details |
|---|---|
| ONVIF Authentication | On/Off |
| RTSP Authentication | Digest, None |
| Audio Compression | G.711A/U |
| Ethernet | 1 x RJ45, 10/100M adaptive Ethernet interface |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UDP, RTSP, FTP, DHCP, DDNS, NTP, SMTP, UPnP, Alarm Server, IP filter |
| Interoperability | ONVIF Profile S |
| Max. User Access | 30 Users |
| Edge Storage | Local PC for instant recording, One-click Snapshot, One-click Triple Snapshot |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | VMS |
| Smart Phone Support | Supports VMS App for iPhone, Android |
Physical & Environmental
| Category | Details |
|---|---|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F); <90% RH |
| Storage Conditions | -30°C ~ 60°C (-22°F ~ 140°F); <90% RH |
| Ingress Protection | NA |
| Vandalism Protection | NA |
| Power Rating | DC 12V / 1Amp, PoE |
| Power Consumption | Max 12W |
| Dimensions | 105 x 105 x 90mm |
| Weight | 225g |
