CCTV - Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera

CCTV - Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera - Image 2

CCTV - Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera - Image 3

CCTV - Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera - Image 4

CCTV - Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera - Image 5

CCTV – Camera TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera

Original price was: ₹11,999.00.Current price is: ₹8,320.00.

Brand Name	TP-Link
Model Name	VIGI C540V
Focal length	4mm
Dimension(cm)	19X15X16
Weight(kg)	0.68

SKU: CCTV - Camera TP-Link VIGI C540V 4MP 2K Categories: CCTV & Security Servillance, CCTV Camera Tags: camera, CCTV CAMERA, ip camera Brand: TP-Link

Description
Reviews (0)

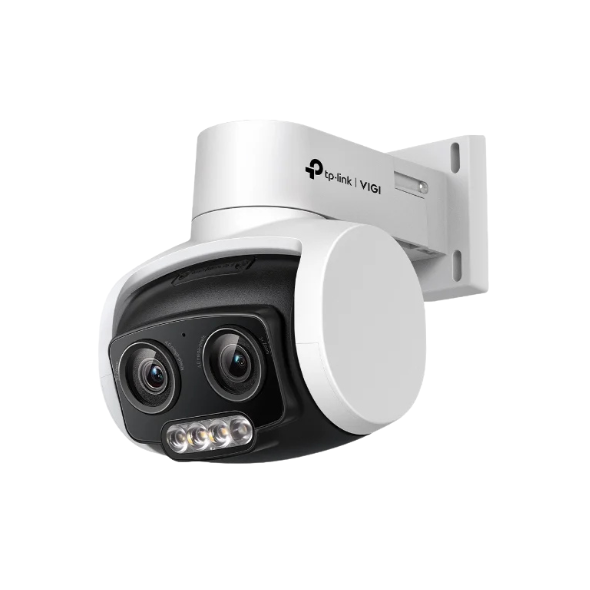

TP-Link VIGI C540V 4MP 2K Outdoor 3X Zoom Dual-Lens Varifocal Pan Tilt Camera

TP-Link VIGI C540V 3X ZOOM Dual-Lens Varifocal | 2K Resolution 4MP Full Colour | IP66 Waterproof, Human & Vehicle Classification, Two-Way Audio, SD card slot (up to 256GB) – available in 4mm lens

TP-Link VIGI C540V features a 3x zoom for closer inspection of objects in expansive areas, instant zoom without delays, human and vehicle classification for accurate event notifications, and smart detection for boundary crossing, object removal, and more. With 2K Resolution 24h full-color 4MP Camera, this makes the best PTZ camera in this category.

4MP Super-High Definition: 4MP offers more than enough pixels to pick up some of the more discreet details.
24h Full-Color: Captures 24 hours of full-color details, even in pitch-black conditions, thanks to large-aperture lens, a high-sensitivity sensor, and 4× attached supplemental lights.
3× Zoom: Allows for closer viewing of objects in expansive areas.
Instant Zoom: Zooming is instant without suffering from delays and image dragging.
Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you’ve set, obstructs the camera, removes/abandons objects, or enters/exits certain region.
Powerful Pan Tilt: Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve security within your property.
Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
IP66 Waterproof: Reliable IP66 for stable outdoor performance.
Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Day/Night/Auto/Schedule-Switch
Zoom	3x Mixed Zoom

LENS
Focal Length	4-12 mm (Mixed Zoom)
Aperture	F1.6
FOV	Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount	M12*P 0.5

PTZ
Pan/tilt Range	Pan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt Speed	Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/sTilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Manual Control Speed	Configurable from 8° to 35°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes

ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0° to 332°, Tilt: 0° to 120°

ILLUMINATOR
IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
White LED	Quantity: 3 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off

VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 2560×1440, 2304×1296, 2048×1280, 1920×1080,1280x720Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fpsResolution: 640×480, 352×288, 320x240Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps

Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	≥ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes

AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)

NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
ONVIF	Yes
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Network Storage	NAS (NFS, SMB/ CIFS)

ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push

INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A

GENERAL
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)

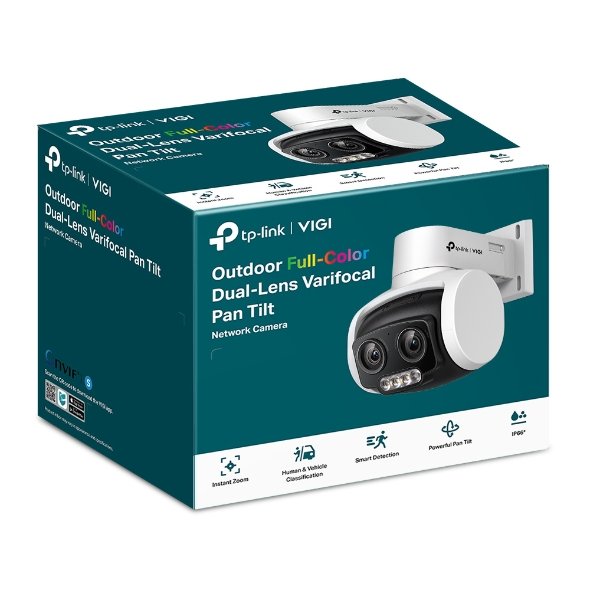

Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Material	Plastic
Net Weight	0.43 Kg
Gross Weight	0.66 Kg
Power Supply	12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3at, class 4)
Power Consumption	Maximum: 14 W Typical (Day Mode): 2.9 W Typical (Night Mode with IR LED): 5.7 W Typical (Night Mode with White LED): 6.1 W
Protection	IP66
Product Dimensions (L x W x H)	107136139 mm
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
