CP PLUS 2MP Network IR Dome Camera - 30Mtr (CP-UNC-DA21L3C-Q)

CP PLUS 2MP Dome CCTV Camera | 30M IR | Built-in Mic | IP67 PoE (CP-UNC-DA21L3C-Q)

Original price was: ₹5,500.00.Current price is: ₹2,500.00.

1/2.8″ 2MP PS CMOS Image Sensor (0.9071 centimeters)
Max. 2MP (1920 × 1080)@1–25/30fps
Instastream, H.265, H.264, H.264H, H.264B, MJPEG
Support Triple stream
Support Built-in Mic
3.6mm fixed Lens
DWDR, Day/Night (ICR), 3D NR, ROI, AWB, AGC, BLC, HLC, Digital watermarking
IR Range of 30 Mtr., PoE, IP67

Description
Reviews (0)

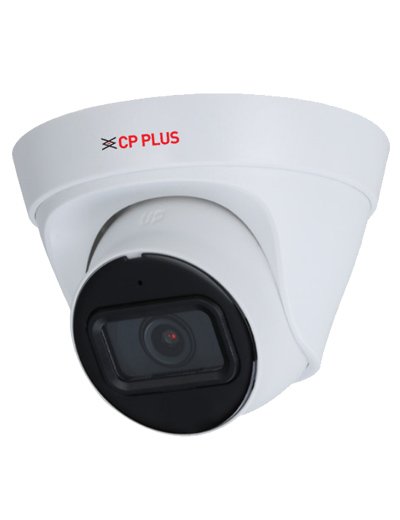

CP PLUS 2MP Network IR Dome CCTV Camera – 30Mtr (CP-UNC-DA21L3C-Q)

The CP PLUS 2MP Dome CCTV Camera is a compact and weatherproof surveillance solution ideal for indoor and outdoor monitoring. Featuring a 3.6mm fixed lens, Full HD video, and 30-meter IR range, it provides crisp footage day or night.

Image Sensor	1/2.8″ 2MP PS CMOS Image Sensor (0.9071 centimeters)
Effective Pixels	1920 (H) × 1080 (V)
Minimum Illumination	0.01 lux@F2.0 (Color, 30 IRE), 0.001 lux@F2.0 (B/W, 30 IRE), 0 lux (IR on)
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
White Balance	Auto, Natural, Street lamp, Outdoor, Manual, Regional custom
RAM	128 MB
ROM	128 MB
DORI Distance	Lens 3.6mm: 52.4 m (Detect), 21.0 m (Observe), 10.5 m (Recognize), 5.2 m (Identify)
Gain Control (AGC)	Auto/Manual
Lens Type	Fixed-focal
Max. Aperture	F2.0
Lens Mount	M12
Close Focus Distance	0.9
Lens	3.6mm fixed Lens
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
IR Number	1 IR LED
IR	IR Range of 30 Mtr.
Smart IR	Support
Day/Night	Auto(ICR)/Color/B/W
S/N Ratio	>56dB
Angle of view	3.6 mm: H: 86°, V: 47°, D: 103°
Back Light Compensation	BLC/ HLC/ DWDR
Stream Capability	Triple stream
Frame Rate	Main stream: 2MP (1920 × 1080)@1–25/30fps Sub stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps Sub stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Video Format	PAL/NTSC
Privacy Mask	4 areas
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
ROI	Support (4 areas)
OSD	Camera title, Date & Time
Audio	Built-in Mic
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Bit Rate	H.265: 3 kbps-6144 kbps, H.264: 8 kbps-6144 kbps
Bit Rate Control	CBR/VBR
Human Body Detection	Support the classification and accurate detection of human & Motor Vehicle
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
SDK and API	Support
Iris Control	Fixed
Ethernet	RJ-45 (10/100 Base-T)
Smart search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Alarm Event	Network disconnection, IP conflict, illegal access, Motion detection, Video tampering, Audio detection, SMD (human & Motor Vehicle), Security exception
Cyber Security	AES 256-bit Encryption, Configuration encryption, trusted execution, Digest, security logs, WSSE, account lockout, syslog, video encryption, IP/MAC filtering, HTTPS, trusted upgrade, trusted boot
Mirror Function	Support
IR Control	Auto, Manual
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP resolution and lower)
Certificates	ISO9001, CE, FCC and RoHS, BIS
Power Source	12 VDC/PoE (802.3af)
Power Consumption	Basic: 1.3 W (12 VDC), 1.6 W (PoE) Max. (H.265 + intelligence on + WDR+ IR intensity): 3.3 W (12 VDC), 4.2 W (PoE)
User/Host	6 (Total bandwidth: 36 M)
Weatherproof Standard	IP67
Browser	IE, Chrome, Firefox
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95% (RH), non-condensing
Storage Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity	≤95%(RH), non-condensing
Dimensions	85.5 mm × 109 mm
Casing	Metal + Plastic
Weight	250g
