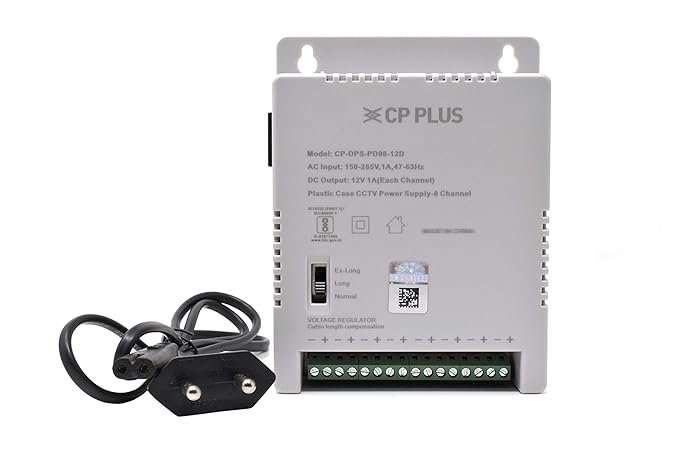

CP PLUS CP-LPS-PD08-12D 8 Channel Eco Power Supply

CP PLUS CP-LPS-PD08-12D CCTV Power Supply – 8 Channel, 12V DC Output

Original price was: ₹1,199.00.Current price is: ₹599.00.

Model: CP PLUS CP-LPS-PD08-12D
8 Channel CCTV Power Supply – Ideal for multiple cameras
Input Voltage: 150VAC – 240VAC
Output Voltage: 12V DC (Adjustable up to 15V)
Each Channel Current: 0–1A
Energy-efficient SMPS design
LED power indicator for easy monitoring
Short-circuit, overload, and over-voltage protection (Auto Recovery)
Fire-retardant ABS Plastic body
Supports Indian power standards (50–60Hz)
Compact and lightweight – Only 233.1g
Dimensions: 154.7mm x 97.38mm x 32.90mm

Description
Reviews (0)

CP PLUS CP-LPS-PD08-12D 8 Channel Eco Power Supply – 12V DC Output, CCTV Power Supply Distribution Box, Energy Efficient, Short-Circuit Protection

Upgrade your surveillance setup with the CP PLUS CP-LPS-PD08-12D CCTV Power Supply. Designed for 8-channel systems, this 12V DC power distribution box ensures stable, energy-efficient performance with built-in protections against overload, short-circuits, and voltage fluctuations—perfect for any professional CCTV installation.

Input voltage	150VAC – 240VAC
Output Connector	Terminal Block Type
Output voltage	12V DC
Current Range	0-1A Each Channel
Voltage Adj. Range	12V DC – 15V D
Ripple & Noise (max.)	<200mV
Rated Power	48W
Voltage Tolerance	10%
Line Regulation	<3% at 150Vac-240Vac
Linear modulate	SMPS (Switch mode power supply)
Load Regulation	<10% at 150VAC-240VAC
Setup Rise time	30mS max @ rated load, output voltage from 10% to 90%.
Hold Up Time (Typ.)	30ms max @ full load & 230Vac input turn of
Temperature coefficient	Max 75 degree
start time	30mS max @ rated load, output voltage from 10% to 90%.
Frequency Range	50Hz-60Hz. Normal
Efficiency (Typ.)	70%
AC Current (Typ.)	1.2A Max @ max 100-240VAC Input & full load
guard time	MAX 2Sec@ 150-240VAC at Input & full load
override protection	Supported
Inrush Current (Typ.)	50A max @ 240 Vac input & full load
Leakage Current	0.008 A Max.
Over Voltage Protection	Supported
short-circuit protection	Supported (AUTO RECOVERY)
Over Load	Supported
Withstand Voltage	Input (100 – 240)V AC/ Output (12 -15)V DC
Isolation Resistance	50MΩ min at primary to secondary add 500Vdc test voltage
Over Current	Supported
Working temperature	-10°C to +45°C
Store temperature	-40°C to +70°C
Weight	233.1gm
Working Humidity	5% to 95%
Dimension	154.7mm x 97.38mm x 32.90mm
Body Type	Plastics ABS
