D-Link DGS-1210-28XS/ME 28-Port Gigabit Fiber Metro Ethernet Switch

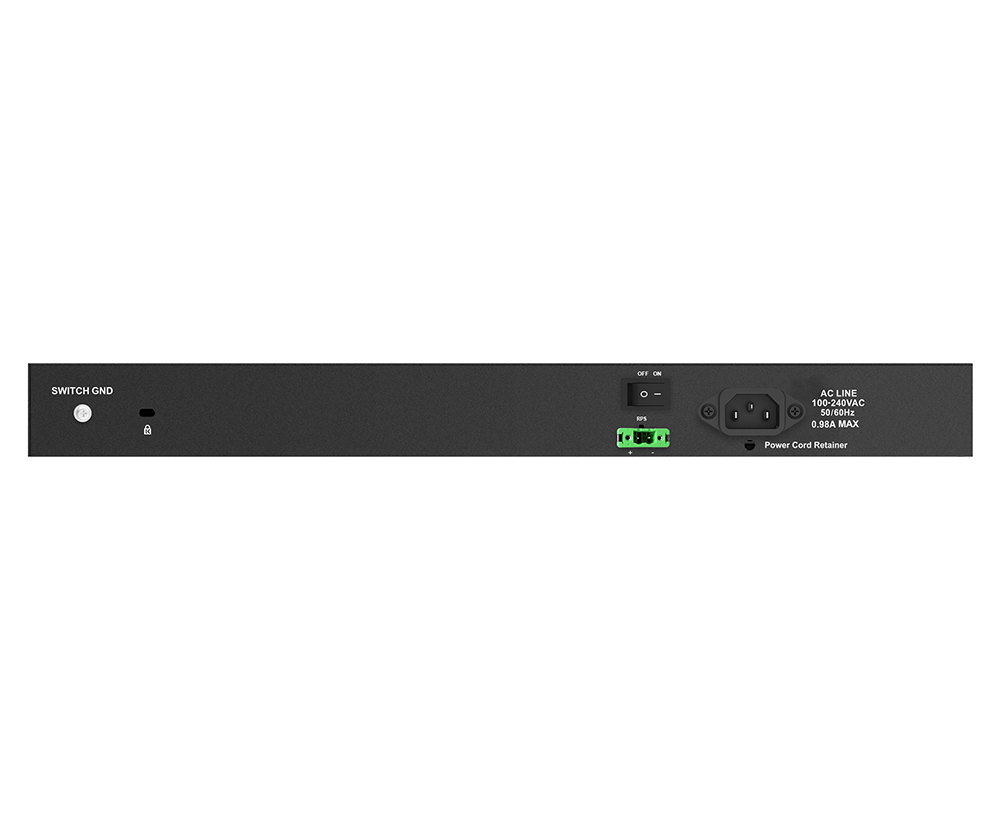

D-Link DGS-1210-28XS/ME 28-Port Gigabit Fiber Metro Ethernet Switch - Image 3

D-Link DGS-1210-28XS/ME 28-Port Gigabit Fiber Metro Ethernet Switch - Image 4

D-Link DGS-1210-28XS/ME 28-Port Gigabit Fiber Metro Ethernet Switch

Original price was: ₹165,000.00.Current price is: ₹161,000.00.

24 x SFP ports
4 x 10G SFP+ ports
Comprehensive Layer 2 features including Link Aggregation, Port-based Q-in-Q, and VLAN trunking
Enhanced network security with IP-MAC Port-Binding (IMPB), Access Control List (ACL), and IEEE 802.1X
mbedded 6 kV surge protection, sub-50 ms recovery ERPS, and Dying Gasp provide optimal reliability

MTCTE CERTIFIED

Categories: NETWORKING SWITCHES, SWITCHES Tags: dlink switch, Switch

Description
Reviews (0)

Ideal for Metro Ethernet

The DGS-1210ME Series Metro Ethernet Switches feature a variety of port configurations, including 10/100/1000BASE-T RJ-45 ports, 1G SFP ports, and 10G SFP+ ports for increased network bandwidth. Surge protection, advanced Layer 2 functions, and a suite of security and management tools make the DGS-1210ME Series Metro Ethernet Switches ideal for Metro Ethernet applications.

Efficient and Resilient

For mission critical environments, the DGS-1210ME Series Metro Ethernet Switches support IEEE 802.1D 2004 edition, 802.1w, and 802.1s Spanning Tree Protocols (STP). The switches also support IEEE 802.3ad link aggregation, increasing bandwidth and redundancy for higher availability. This series furthermore features IEEE 802.1p Quality of Service (QoS), allowing for real-time traffic classification into Weighted Round Robin (WRR) and strict priority levels mapped to 8 queues. Advanced traffic classification parameters allow the network to be tuned for flexible configurations for specific multimedia applications such as VoIP or IPTV.

Security & Authentication

The DGS-1210ME Series supports IEEE 802.1X port-based/host-based access control, guest VLAN, and RADIUS/TACACS+ authentication for strict access control to the network. The IP-MAC-Port Binding (IMPB) feature allows administrators to further enhance user access control. The built-in D-Link Safeguard Engine™ protects the CPU from broadcast, multicast, and unicast flooding. In addition, the Access Control List (ACL) feature enhances network security and switch performance.

Multicast Applications

The DGS-1210ME Series features a full set of L2 multicast functions, including IGMP snooping, IGMP filtering, Fast Leave, and multicast traffic configuration for specific ports. With L2 multicast support, the DGS-1210ME Series is ready and capable of handling growing IPTV applications.

Management Capabilities

A user-friendly web interface gives administrators access to advanced management features such as DHCP auto-configuration, allowing central management of device configurations. The switches support Link Layer Discovery Protocol (LLDP), which advertises the device’s capabilities and identity to the local network, allowing administrators to better manage their network topology. Each port also supports cable diagnostics to troubleshoot cable length and functionality problems remotely.

Traffic & Bandwidth Control

Integrated bandwidth control allows network administrators to define the throughput levels for ingress and egress bandwidth. It provides a minimum granularity of 64kbps for ingress port and flow-based bandwidth control, and a minimum granularity of 64kbps for egress queue bandwidth. The DGS-1210ME Series also supports traffic control, which optimizes overall performance, while port mirroring helps administrators perform traffic diagnostics and track network performance.

Specification

Interfaces	24 x 1000M SFP 4 x 10G XFP 24 x SFP ports 4 x 10G SFP+ ports 4 x Max IP Interface
Console Port	Yes
Switching Capacity	128 Gbps
Maximum Forwarding Rate	95.24 Mpps
Store & Forwarding Forwading	Yes
Dimensions	440 x 210 x 44 mm
Weight	2.96 kg
Temperature	Operating: -5 to 50° C (23 to 122° F) Storage: -20 – 70 ˚C
Humidity	Operating: 0% – 95% RH Storage: 0% – 95% RH
Operating Altitude	1500 m
Max Power Consumption	32.9 W/100 V 33.4 W/240 V
Standby Power Consumption	15.5 W/100V 16.7 W/240V
Maximum Heat Dissipation	115.17 BTU/hr
MTBF	243,327 hours
Power Input	100 to 240 V AC
CPU Speed	400MHz
DRAM Size	256MB
Flash Memory Size	32 MB
Packet Buffer Size	1.5Mbits
Comply with RoHS 6	Yes
Energy Efficiency Ethernet (EEE)	Yes
Power Saving	By Link Status By LED Shut-Off By Port Shut-Off By System Hibernation
MAC Address Table Size	16K
Control	802.3x Flow
Head-of-line (HOL) Blocking Prevention	Yes
Spanning Tree Protocol (STP)	IEEE 802.1D STP IEEE 802.1s MSTP IEEE 802.1w RSTP
Aggregation	8 x Link Aggregation Group Per Device 8 x Max Port Per Link Aggregation Group
Jumbo Frame	9,216 Bytes
IGMP Snooping	Max 1024 IGMP Snooping Groups
