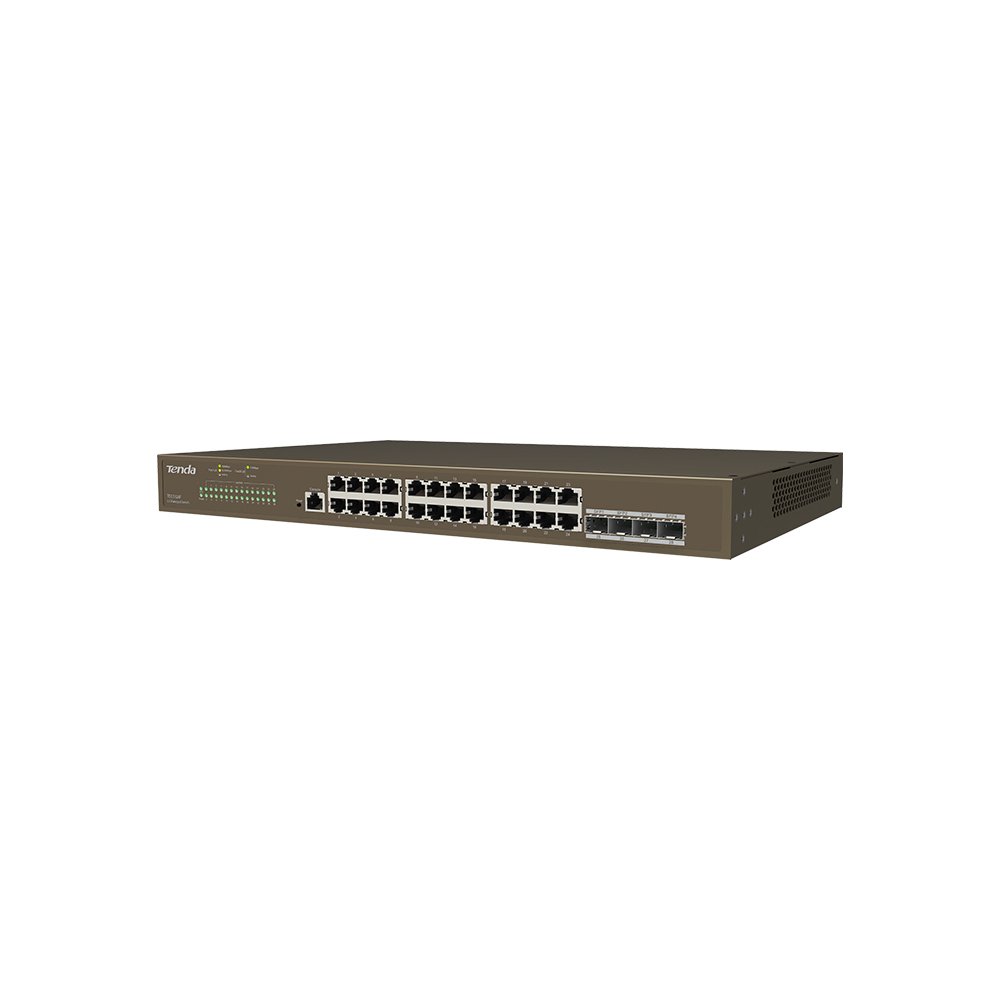

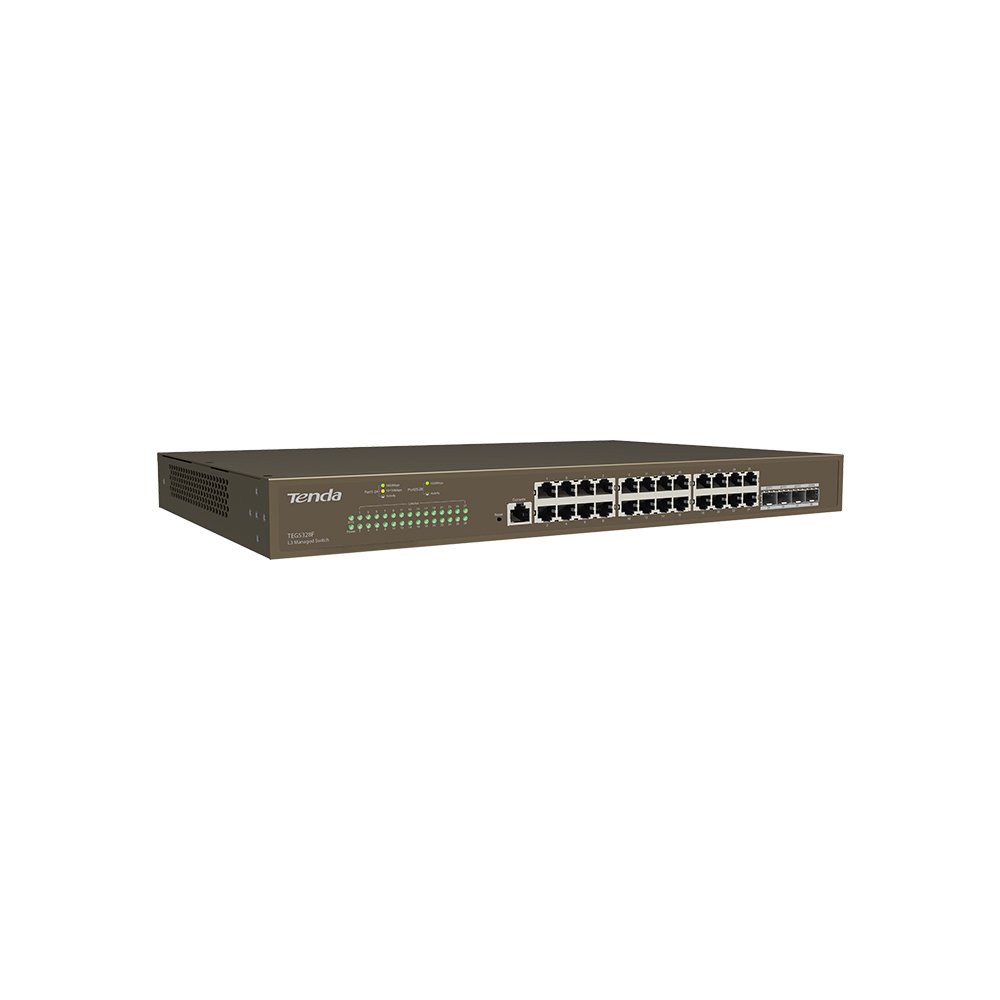

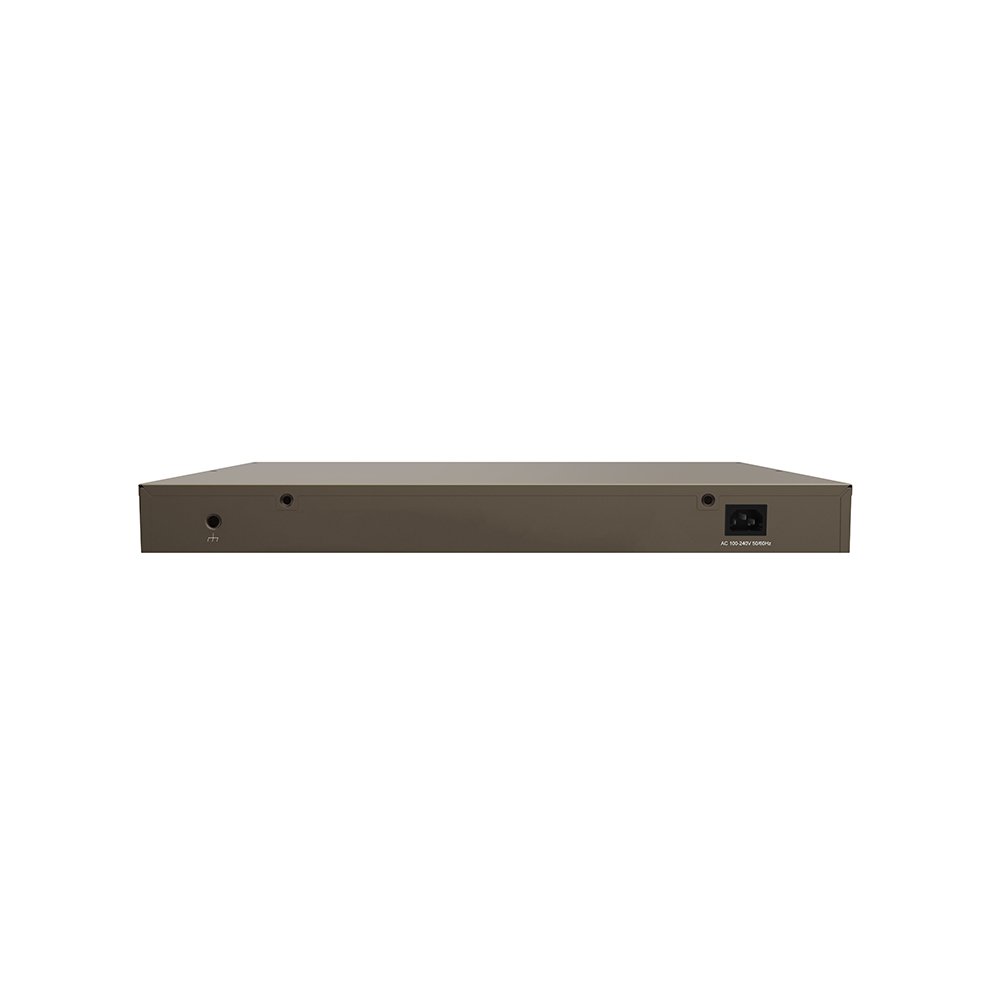

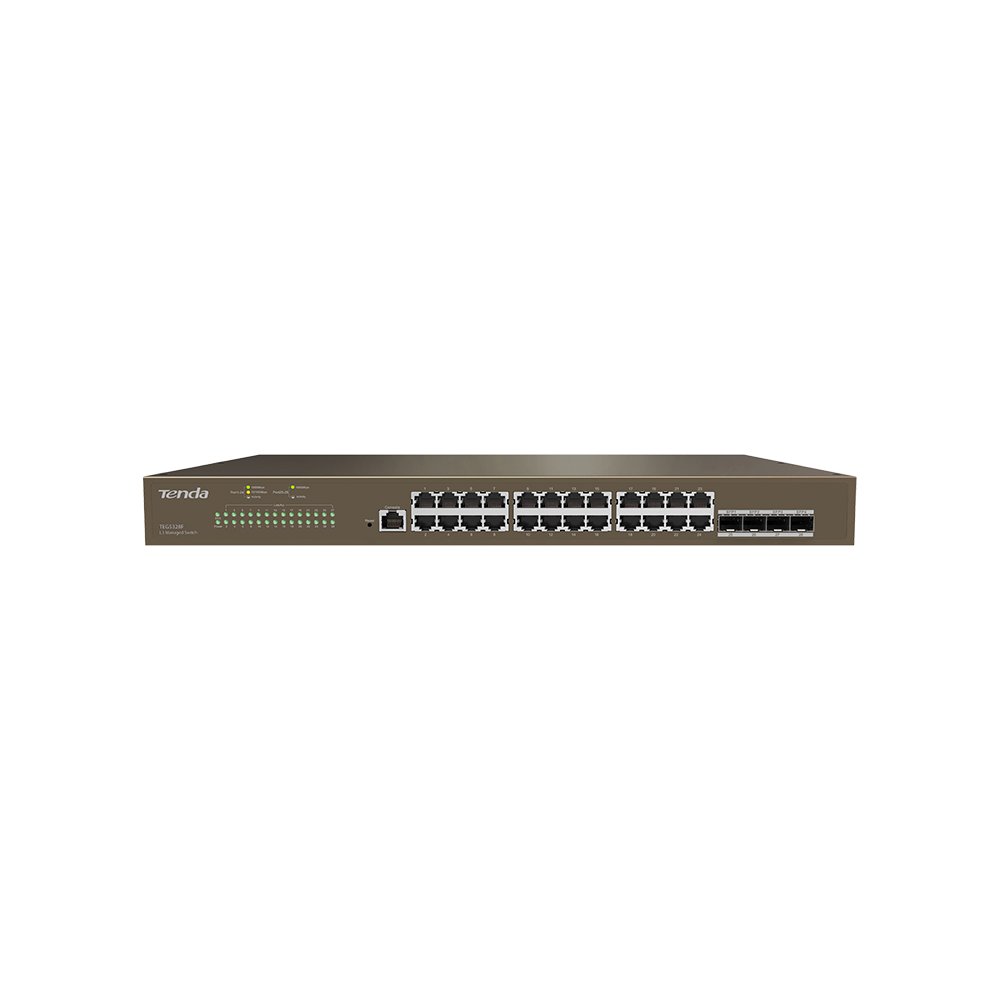

Tenda TEG5328F L3 Managed Switch

Name: Tenda TEG5328F L3 Managed Switch
SKU: Tenda TEG5328F L3 Managed Switch
Availability: InStock

Original price was: ₹21,000.00.Current price is: ₹15,000.00.

100 in stock

Compare

SKU: Tenda TEG5328F L3 Managed Switch Categories: NETWORKING SWITCHES, SWITCHES Tags: L3 Managed Switch, Managed Switch, tenda manged switch

Description
Reviews (0)

TEG5328F L3 Managed Switch

TEG5328F is a Tenda Layer-3 managed switch. To meet the demand of high-performance access, the switch provides 24 10/100/1000 Mbps Base-T Ethernet ports and 4 separate 1000 Mbps Base-X SFP ports. With an innovative hardware structure and software platform, it features a powerful processing capacity and complete security protection mechanism, making management and maintenance easy and simple, fully meeting the demands of high-density user access and high-performance aggregation, ideal for the aggregation layer or core layer of such medium to large networks as enterprises and campuses.

Network standards	IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator	1Link/Act LED indicator 1Power LED indicator 1*SYS LED indicator
Interfaces	2410/100/1000 Base-T Ethernet ports 41000 Base-X SFP ports 1*Console port
Transmission media	Recommended: CAT5/5e UTP or better
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	56Gbps
Packet forwarding rate	41.70Mpps
Buffer	12Mb
MAC address table	16K
Jumbo frame	10K
Input voltage	100-240V AC 50/60Hz
Power consumption	Full load: ＜24W Empty load: ＜10W
Dimension	440.0mmx178.8mmx44.0mm
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Energy Efficient	Support
Environment	Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing
Certification	FCC、CE、RoHS
L3 Features	Supports VLAN-based routing Supports IPv4 static routing Supports static ARP
Security features	ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication Radius security authentication
VLAN	IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid
DHCP Server	DHCP Relay DHCP Snooping Supports Option 82 policy configuration
Port aggregation	Static aggregation LACP dynamic aggregation
Spanning tree	IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics
Multicast	IGMP Snooping V1/V2/V3 Supports port fast leave
Port Mirroring	Supports N: 1 port mirroring
Quality of Service	SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8-queue service quality mapping
ACL	Supports MAC ACL and IP ACL
Loading and upgrade	Supports FTP/TFTP/HTTP upgrade Supports configuration import and export
Management and maintenance	Supports Telnet, Console Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert/Connection Detection CPU Monitoring and memory monitoring
