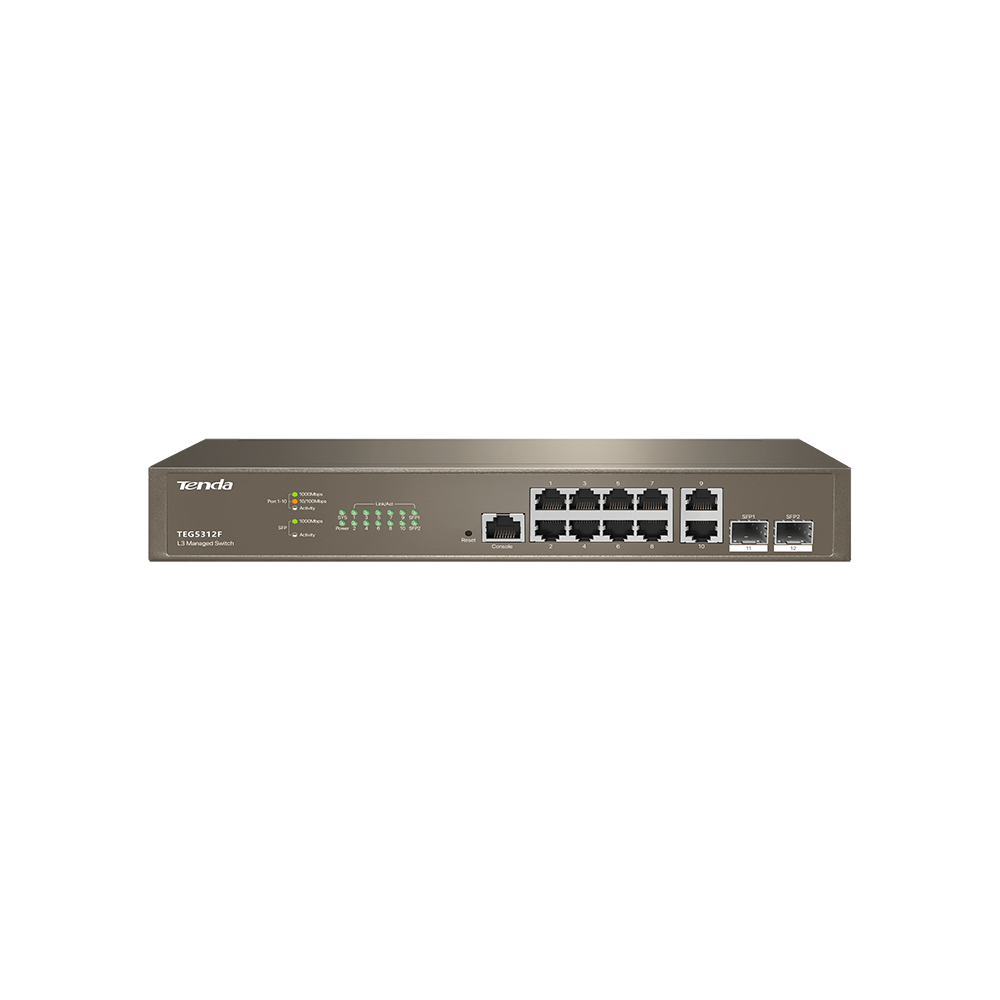

Managed Giga Switches Tenda TEG5312F L3 - Image 2

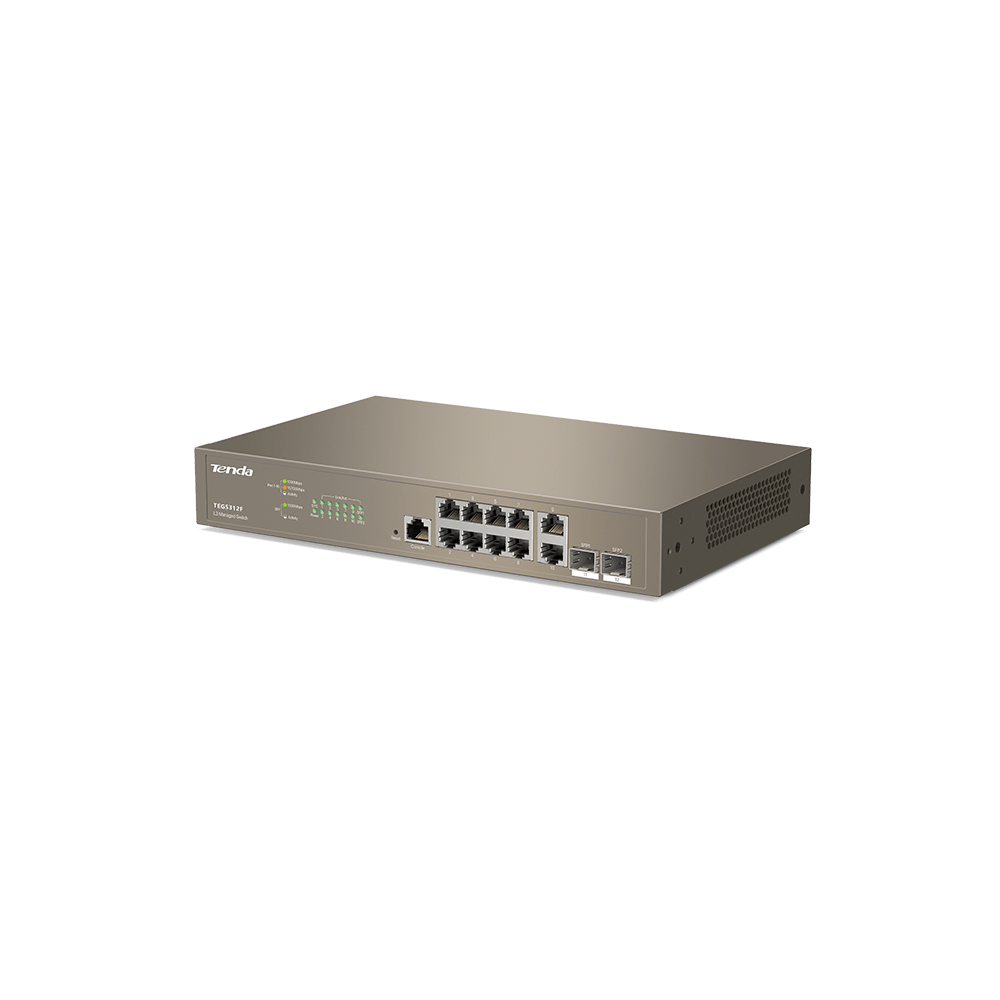

Managed Giga Switches Tenda TEG5312F L3 - Image 3

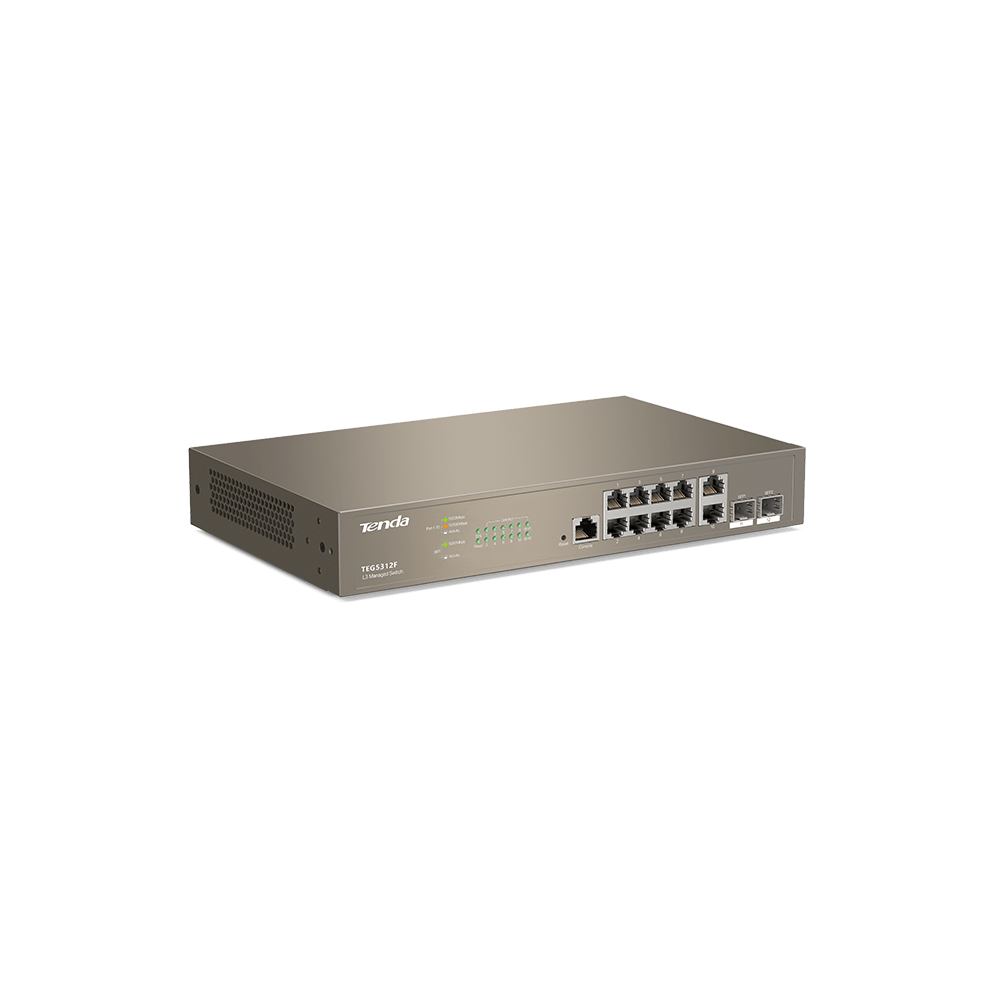

Managed Giga Switches Tenda TEG5312F L3 - Image 4

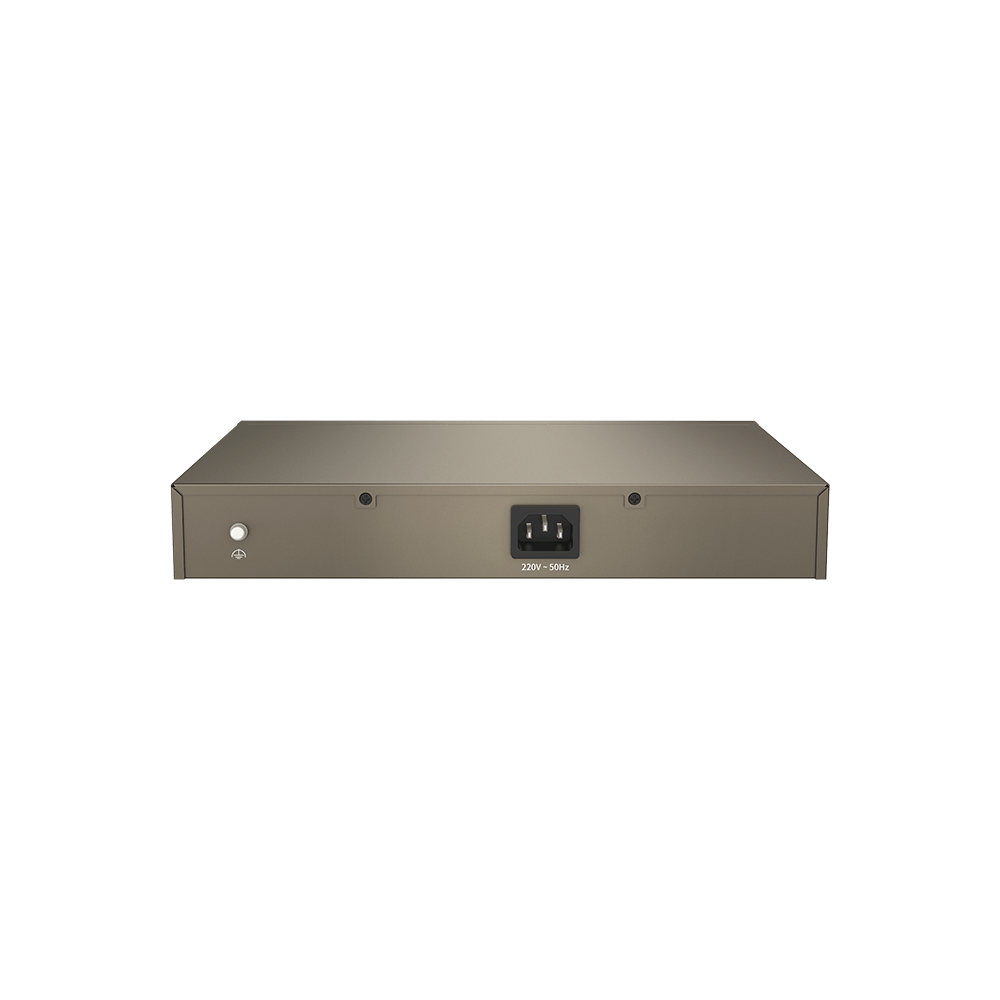

Managed Giga Switches Tenda TEG5312F L3 - Image 5

Managed Giga Switches Tenda TEG5312F L3

Name: Managed Giga Switches Tenda TEG5312F L3
SKU: Managed Giga Switches Tenda TEG5312F L3
Availability: InStock

Original price was: ₹18,700.00.Current price is: ₹10,200.00.

100 in stock

Compare

SKU: Managed Giga Switches Tenda TEG5312F L3 Categories: NETWORKING SWITCHES, SWITCHES Tags: L3 Managed Switch, Managed Switch

Description
Reviews (0)

TEG5312F L3 Managed Switch

Network standards	IEEE802.3、 IEEE802.3u、 IEEE802.3ab、 IEEE802.3ad、 IEEE802.3z、 IEEE802.3x、IEEE802.1p、 IEEE802.1q、 IEEE802.1w、 IEEE802.1d、 IEEE802.1s
LED Indicator	1Link/Act LED indicator 1Power LED indicator 1*SYS LED indicator
Interfaces	1010/100/1000 Base-T Ethernet ports 21000 Base-X SFP ports
Transmission media	Recommended: CAT5/5e UTP or better
Level of protection	Lightning protection for ports: 6kV Lightning protection for power: 6kV ESD: Air discharge: ±10kV Contact discharge: ±8kV
Forwarding mode	Store-and-forward
Switch capacity	24Gbps
Packet forwarding rate	17.90Mpps
Buffer	12Mb
MAC address table	16K
Jumbo frame	10K
Input voltage	100-240V AC 50/60Hz
Power consumption	Full load: ＜19W Empty load: ＜9W
Dimension	294.0mmx179.6mmx44.0mm
Mounting	Desktop mounting: support Wall mounting: support Rack mounting:non-support
Energy Efficient	Support
Environment	Operating temperature: 0°C – 45℃ Storage temperature: -40°C – 70°C Operating humidity: (10% – 90%) RH, non-condensing Storage humidity: (5% – 90%) RH, non-condensing
Certification	FCC、CE、RoHS
L3 Features	VLAN-based routing IPv4 static routing adding Supports static ARP adding/deleting Supports ARP aging time configuration
Security features	ARP receiving limit Unknown MAC address discard DoS attack defense 802.1x security authentication Radius security authentication
VLAN	IEEE 802.1Q VLAN VLAN Layer-3 interfaces Supports three port modes: Access, Trunk and Hybrid
DHCP Server	DHCP Server DHCP Relay DHCP Snooping Supports Option 82 policy configuration
Port aggregation	Static aggregation LACP dynamic aggregation
Spanning tree	IEEE 802.1d STP (Spanning Tree Protocol) IEEE 802.1w RSTP (Rapid Spanning Tree Protocol) IEEE 802.1s MSTP (Multiple Spanning Tree Protocol) Supports edge port Supports BPDU statistics
Multicast	IGMP Snooping V1/V2/V3 Supports port fast leave
Port Mirroring	Supports N: 1 port mirroring
Quality of Service	SP (Strict Priority) SWRR (Simple Weighted Round Robin) WRR (Weighted Round Robin) Supports 802.1p port trust mode Supports DSCP port trust mode Supports a maximum of 8-queue service quality mapping
ACL	Supports MAC ACL and IP ACL
Loading and upgrade	Supports FTP/TFTP/HTTP upgrade Supports configuration import and export
Management and maintenance	Supports Telnet Supports SNMP V1/V2/V3 Supports WEB management and maintenance Supports Ping/Tracert/Connection Detection CPU Monitoring and memory monitoring Local visualization management
