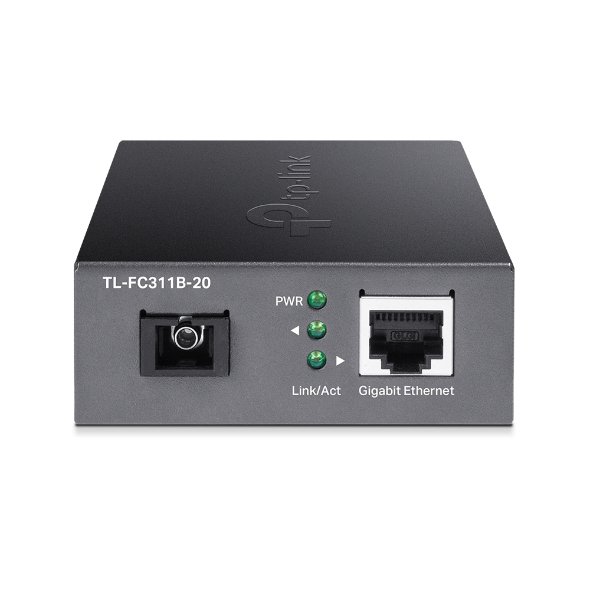

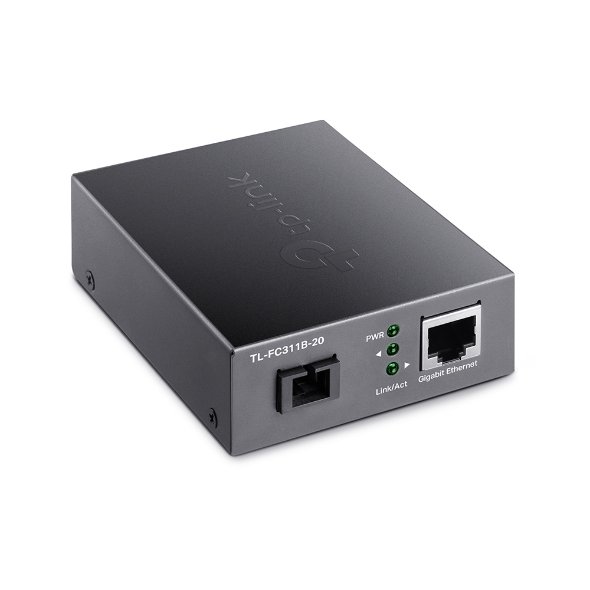

TP Link TL-FC311B-20 Gigabit WDM Media Converter
TP Link TL-FC311B-20 Gigabit WDM Media Converter enables Gigabit Ethernet over single-mode fiber for distances up to 20 km using WDM technology, allowing bi-directional data transmission on a single fiber strand. Ideal for high-speed, long-distance network extensions.
TTP Link TL-FC311B-20 Gigabit WDM Media Converter is a high-performance networking device designed to provide Gigabit Ethernet connectivity over long distances using Wavelength Division Multiplexing (WDM) technology. TP Link TL-FC311B-20 It allows Ethernet signals to be transmitted over single-mode fiber for distances of up to 20 kilometers, making it ideal for enterprise networks, data centers, and service provider applications that require extended range and high-speed transmission.
The TP Link TL-FC311B-20 operates by using bi-directional transmission on a single fiber strand, with transmission at 1550 nm and reception at 1310 nm, allowing both upstream and downstream data to flow on separate wavelengths on the same fiber. This efficient use of fiber infrastructure enables high-speed communication while minimizing costs associated with fiber cables.
TP Link TL-FC311B-20 It supports Gigabit Ethernet speeds and complies with IEEE 802.3z and 802.3ab standards. The media converter offers plug-and-play installation, real-time LED indicators for monitoring status, and can be used in conjunction with other WDM devices, such as the TL-FC311B-10, for creating more extensive, scalable networks.
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km



| Brand Name | TP-Link |
| Model Name | TL-FC311B-20 |
| Dimension(cm) | |
| Weight(kg) | 0.450 |
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× Gigabit SC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Network Media | • Single-mode Fiber • UTP category 5, 5e cable (maximum 100m) |

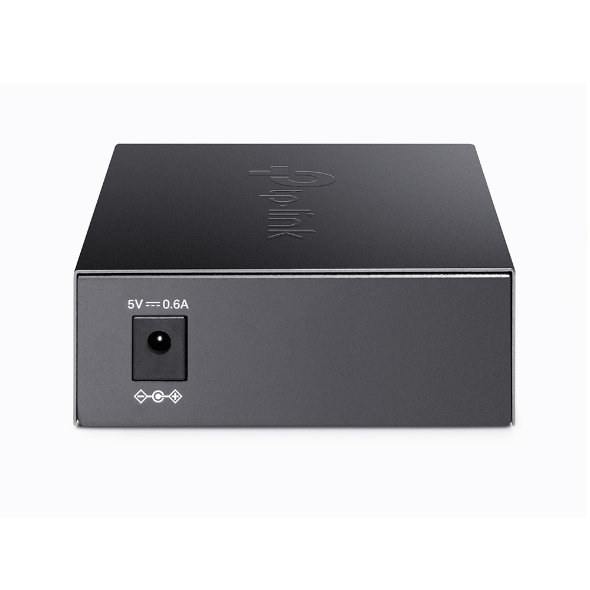

| Power Supply | External Power Adapter: 5 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | • 1310 nm TX • 1550 nm RX |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| MEDIA CONVERTER & MODULE | |
|---|---|
| Fiber Type | 9/125 μm single-mode fiber |
| OTHERS | |
|---|---|
| Package Contents | • Media Converter TL-FC311B-20 • Power Adapter • Installation Guide |
