TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA - Image 2

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA - Image 3

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA - Image 4

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA - Image 5

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA

Name: TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA
Brand: TP-Link
SKU: 10843
Availability: InStock

Original price was: ₹98,999.00.Current price is: ₹35,552.00.

Compare

Categories: CCTV & Security Servillance, NVR/DVR/XVR Brand: TP-Link

Description
Reviews (0)

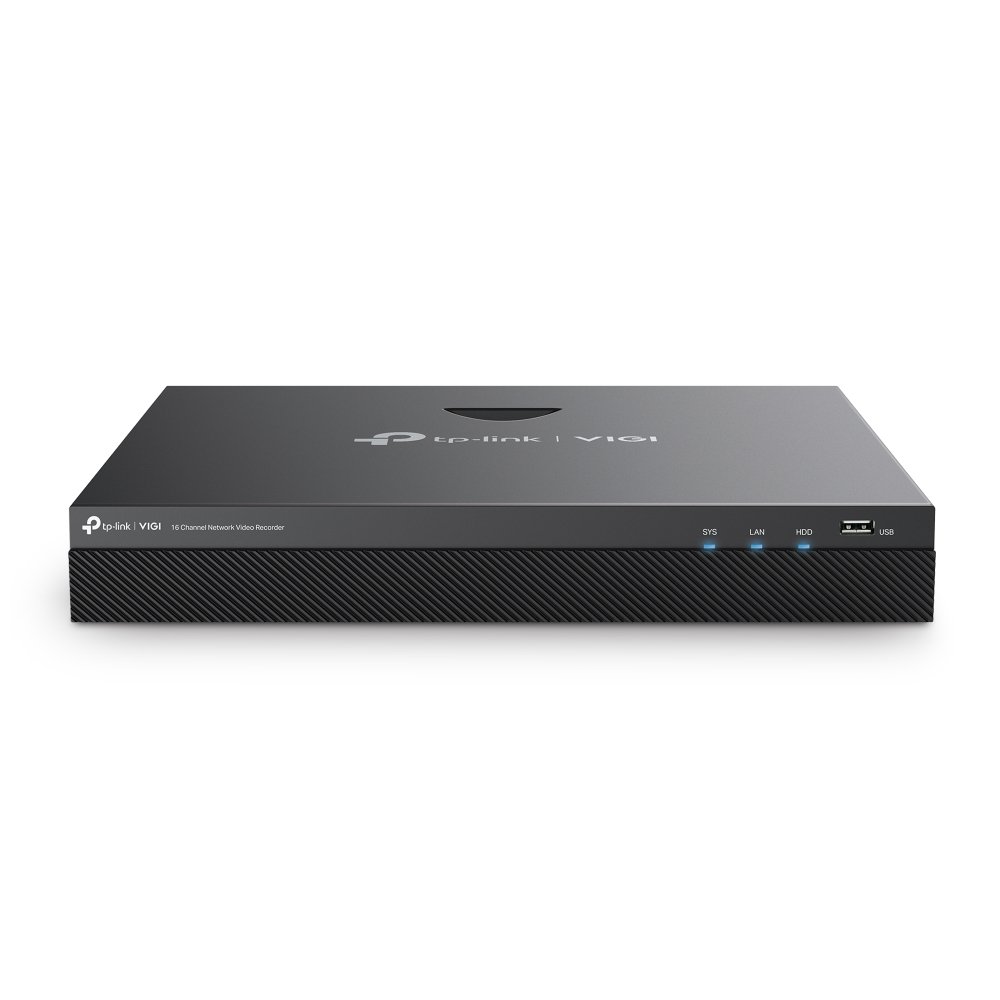

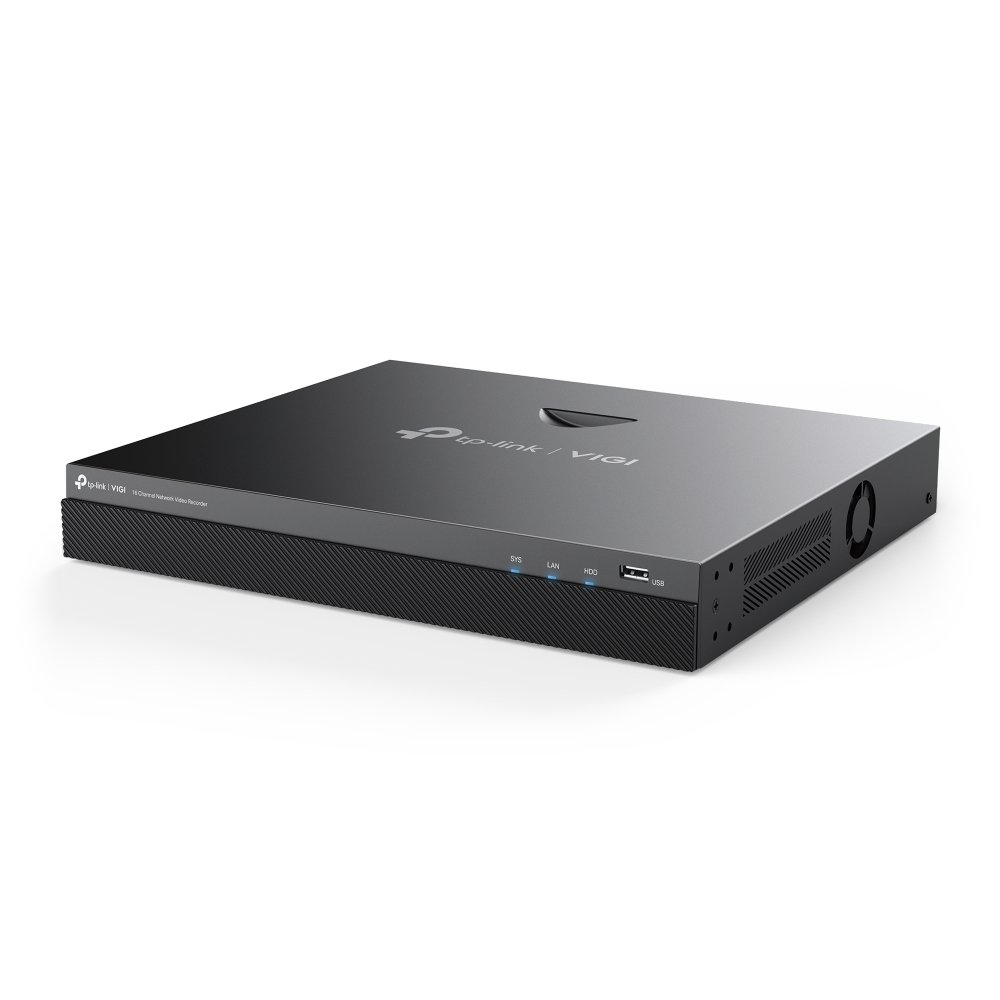

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder with 2 SATA

TP-Link VIGI NVR2016H 16-Channel NVR system comes with 4K HDMI Video Output & 16MP Decoding Capacity,16-Channel Simultaneous Playback,H.265+,ONVIF Ensures Compatibility,Plug & Play, 24/7 Continuous Recording, Two-Way Audio, Remote Monitoring

TP-Link VIGI NVR2016H 16 Channel Network Video Recorder offers 4K HDMI output with 16MP decoding, delivering sharp images up to 8MP and supporting 8-channel live view and playback at 2MP. It enables simultaneous playback from 16 channels, with speed adjustments and event search. H.265+ compression optimizes storage and network load, while ONVIF compatibility allows integration with VIGI and other brands. Plug & Play setup instantly adds new VIGI IP cameras. It supports 24/7 recording, storing up to 20 TB for extensive data security. With two-way audio, users can remotely communicate via the VIGI app, ensuring flexible monitoring and protection.

4K HDMI Video Output & 16MP Decoding Capacity: Sharp image definition up to 8MP, and 8-ch@2MP^†decoding capacity allows you to enjoy more-channels live view and playback at the same time.
16-Channel Simultaneous Playback^*: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
H.265+: Compresses the video size without sacrificing video quality, easing the network load and saving disk space.
ONVIF Ensures Compatibility^△: Easily add IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.
Plug & Play: Tp-link VIGI NVR2016H allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
24/7 Continuous Recording: Stores up to 20 TB of footage (1048 storage days^‡) from connected cameras to secure your data for quick, convenient access.
Two-Way Audio: With voice intercom support, scare off any potential thieves or intruders from wherever you are.
Remote Monitoring: The dedicated VIGI app and client enable remote monitoring, providing ease and convenience.

TP-Link VIGI NVR2016H allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.

VIDEO AND AUDIO
IP Video Input	16-Channel
Incoming Bandwidth	80 Mbps
Outgoing Bandwidth	60 Mbps
HDMI Output Resolution	1 Channel, Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	HDMI/VGA Simultaneous Output
Multi-View Display	1/4/6/8/9/16

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
Synchronous Playback	16-Channel
Capability	25fps: 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP30fps: 4-ch @ 3MP, 2-ch @ 5MP

RECORD MANAGEMENT
Record Mode	Manual Recording, Scheduling Recording, Motion Detection Recording
Playback Mode	Instant Playback, Regular Playback, Tag Playback, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing)
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF, CGI

EXTERNAL INTERFACE
Network Interface	1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
USB Interface	1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
Audio Interface	1, Audio In; 1, Audio Out
Alarm In/Out	N/A
Serial Interface	N/A
Power	1× DC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	1
VGA	1

HARD DISK
SATA	2 SATA Interfaces
Capacity	Up to 10 TB Capacity for Each HDD

ALARM
General Alarm	Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
Anomaly Alarm	Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	VIGI Network Video Recorder Power Adapter HDD Screws Mouse Quick Installation Guide
Working Temperature	NVR: -10–55 °C Power Adapter: 0–40 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	330 × 285 × 45 mm
Net Weight	1.9 Kg
Gross Weight	3.2 Kg
Power Supply	12V DC/3.3A
Power Consumption	4.78 W (Without Disk) 24.16 W (With Disk)
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI
Origin Country	China
