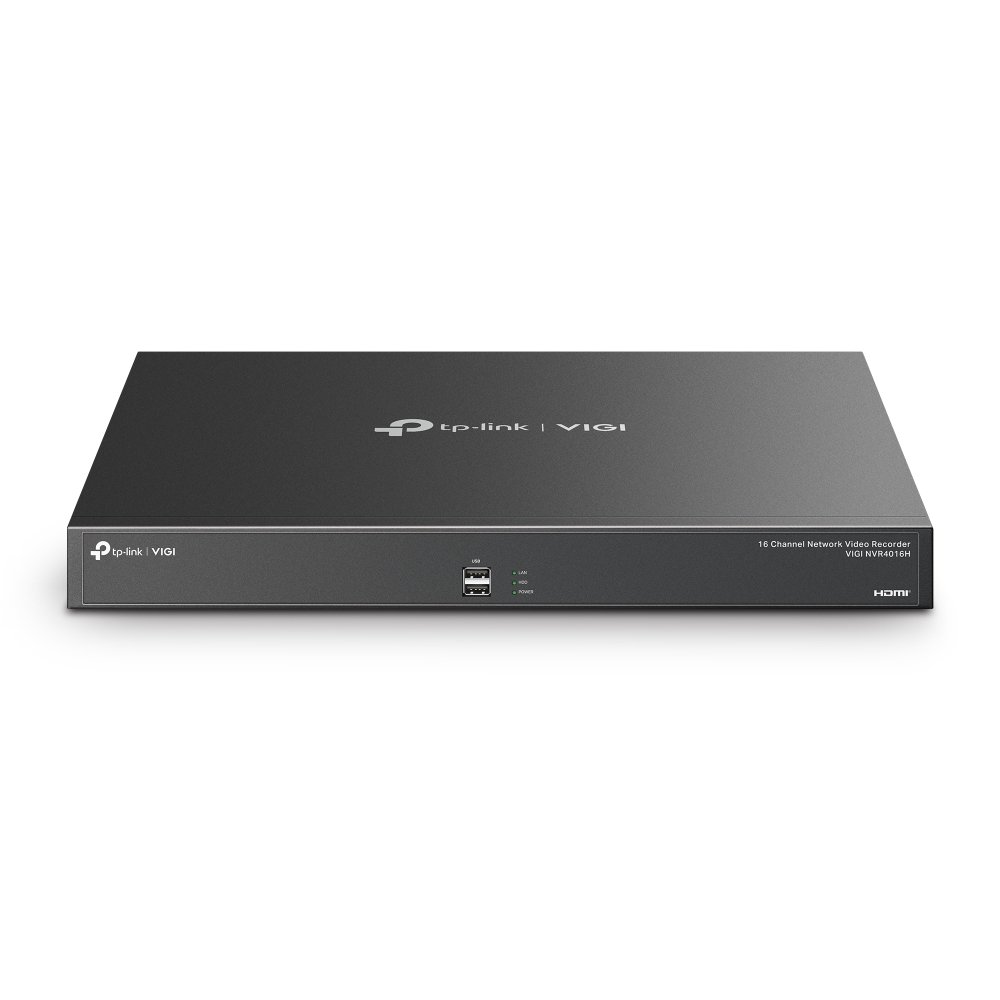

NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder

NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder - Image 2

NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder - Image 3

NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder - Image 4

NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder

Name: NVR TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder
Brand: TP-Link
SKU: 11051
Availability: InStock

Original price was: ₹26,299.00.Current price is: ₹19,840.00.

Compare

Categories: CCTV & Security Servillance, NVR/DVR/XVR Tags: DVR, NVR Brand: TP-Link

Description
Reviews (0)

TP-Link VIGI NVR4016H 16-Channel 4K Network Video Recorder | 320 Mbps Bandwidth

VIGI NVR4016H V1 | 16-Channel 4K Network Video Recorder, 320 Mbps Bandwidth, H.265+ Compression, 4 SATA Interfaces, HDMI/VGA Output, Smart Detection, ONVIF Support – Perfect for high-performance surveillance setups.

VIGI NVR4016H V1 is a high-performance 16-channel network video recorder with 4K HDMI output, H.265+ compression, and up to 16TB storage per drive. It supports 320 Mbps bandwidth, multi-channel synchronous playback, smart detection, and remote monitoring—perfect for professional surveillance setups.

Key Features:

16-Channel IP Video Input – Supports up to 16 cameras with synchronous playback.
4K HDMI Video Output – Dual HDMI & VGA outputs for high-definition monitoring.
320 Mbps Bandwidth – Ensures smooth, high-quality video streaming and recording.
H.265+ Compression – Saves storage space while maintaining high-quality footage.
Up to 4 SATA Interfaces – Supports up to 16TB per HDD for maximum storage capacity.
Smart Detection & Alarms – Features motion detection, intrusion alerts, video tampering, human & vehicle detection.
Remote Monitoring – Access live feeds and playback via Android, iOS, and web browsers.
ONVIF Compatibility – Ensures integration with various IP cameras.

Video & Playback Capabilities:

Up to 10-ch @ 3MP (25fps) or 16-ch @ 1080P (25fps) decoding.
Supports playback functions: Play, Pause, Stop, Fast Forward, Digital Zoom, Export Clip, and more.
Multiple viewing modes: 1, 4, 6, 8, 9, 16-channel display.

Connectivity & Interfaces:

Dual HDMI + VGA Outputs – Independent multi-screen viewing options.
2 Gigabit Ethernet Ports – Reliable high-speed network connectivity.
Multiple USB Ports – 2× USB 2.0 (front), 1× USB 3.0 (rear) for easy backups.
Alarm & Audio Interfaces – 16 Alarm Inputs, 4 Alarm Outputs, RCA Audio Input/Output.

Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	2 Channels • HDMI1 Resolution: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz • HDMI2 Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel, Resolution: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	• HDMI1/HDMI2 Independent output • HDMI1/VGA Independent outputNote: HDMI2 and VGA cannot operate simultaneously. If both connections are made, HDMI2 will take precedence and function as the primary output.
Multi-View Display	1,4,6,8,9,16

DECODING
Audio Compression	G.711A/G.711U/G.726
Video Compression	H.265+/H.265/ H.264+/H.264
Record Resolution	8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-Channel^†
Capability	• 25fps: 10-ch@3MP、16-ch@1080P• 30fps: 4-ch@8MP、6-ch@5MP、8-ch@4MP

Record Management
Record Mode	• Manual Recording • Scheduling Recording • Motion Detection Recording
Playback Mode	• Instant Playback • Regular Playback • Tag Playback • Event Playback
Backup Mode	• Regular Backup • Video Clip Backup
Playback Function	• Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off

NETWORK
Protocol	UPnP (Plug and Play), NTP (Network Timing), SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S, CGI

External Interface
Network Interface	2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
USB Interface	2 Front USB 2.0 Ports, 1 Rear USB 3.0 Port
Audio Interface	1-ch RCA Input; 1-ch RCA Output
Alarm In/Out	16/4
Serial Interface	1, RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	2
VGA	1

HARD DISK
SATA	4 SATA Interfaces
Capacity	Up to 16 TB Capacity for Each HDD*

Alarm
General Alarm	• Motion Detection • Video Tampering • Scene Change Detection • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Loitering Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Abnormal Sound Detection • Smart Frame Note: The alarm function requires the use of a camera.
Anomaly Alarm	• Video Loss • Offline and IP Conflict • Disk Exception • Login Exception • Fan Exception Note: The alarm function requires the use of a camera.
Alarm Linkage	• Recording • White Light Alarm • Buzzer • Log • Audible Alarm Note: The alarm function requires the use of a camera.

GENERAL
Storage Temperature	-40–70 °C
Storage Humidity	10%~90% RH Non-Condensing
Package Contents	• VIGI Network Video Recorder • Mouse • Installation Guide • Power Cord • HDD Power Cables • HDD Data Cables • Terminal Blocks • Mounting Brackets • Screws • Rubber Feet
Working Temperature	NVR: -10–55 °C
Working Humidity	10%~90% RH Non-Condensing
Dimensions( W X D X H )	17.32 × 12.99 × 1.73 in (440 × 330 × 44 mm)
Net Weight	4.0 Kg^#
Gross Weight	5.0 Kg^#
Power Supply	100-240 VAC, 50 to 60Hz, 1.5A
Power Consumption	• 5.5 W (Without Disk) • 45 W (With Disk)
Certifications	CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
