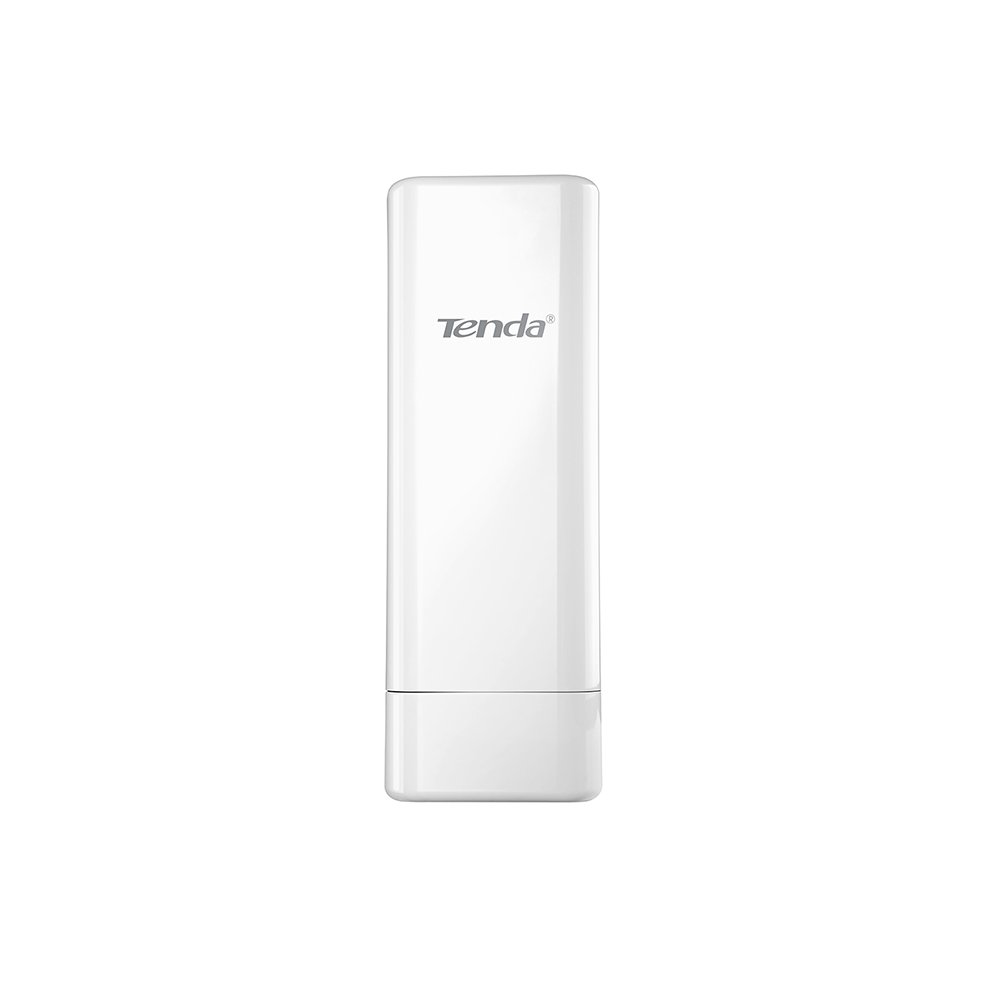

Tenda O3 2.4GHz Outdoor CPE | 5km Long-Range Point-to-Point Wireless Bridge

What it does

O3 2.4GHz Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 12dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.

Main Features

• •  2.4GHz 11n 150Mbps
• •  12dbi directional antenna
• •  IP64 waterproof enclosure
• •  6000V Lightning Protection
• •  AP,Station,WISP operating mode supported
• •  Up to 60 meters of flexible deployment with included PoE Injector
• Specifications


  Model	O3
  Dimension	270*94.86*67.5mm

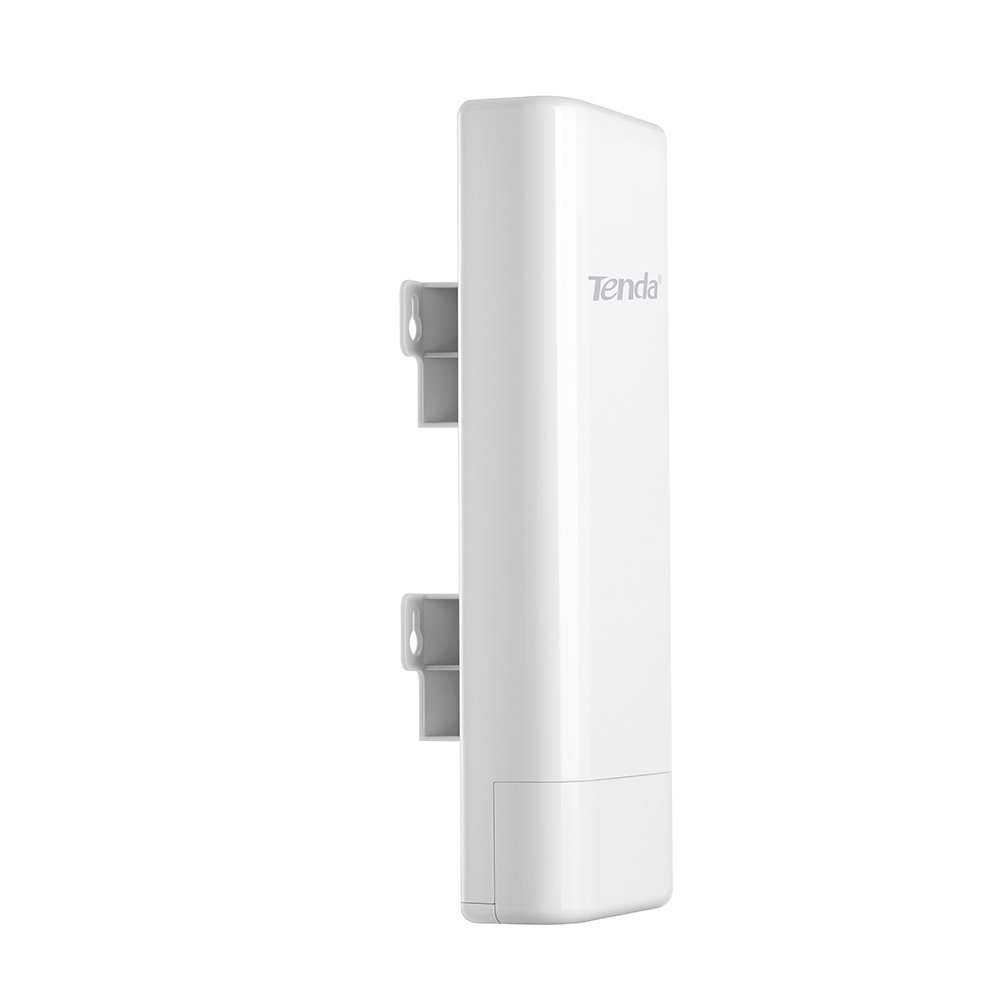

  Deployment	Pole Mount/Wall Mount
  Application Scenarios	PtP and PtMP wireless connection for Privated ISP access or CCTV Surveillance
  Frequency Range	2.4GHz
  Compliant Standards	IEEE 802.11b/g/n
  Maximum Wireless Rate	150Mbps

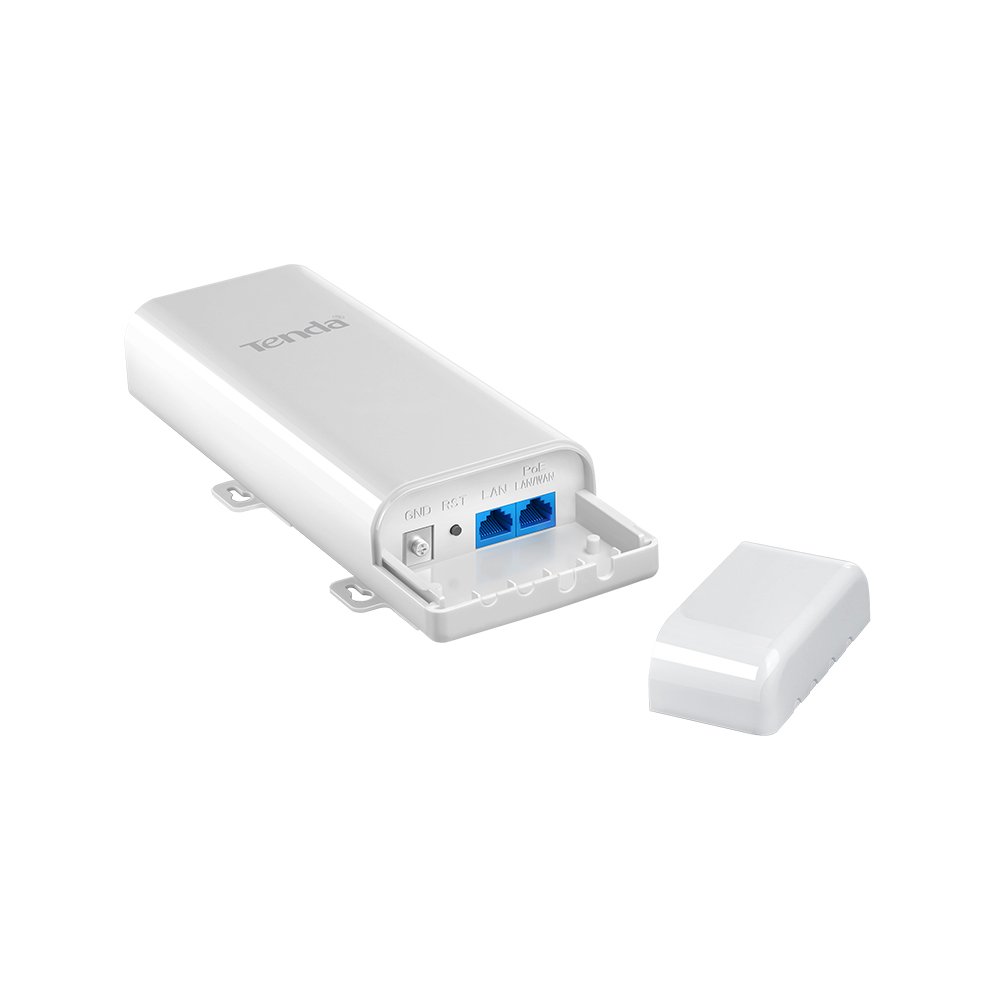

  Interfaces	2*10/100Mbps Ethernet Port
  Antenna Polarization	Horizational Polarization
  Antennas Gain	12dbi
  Antenna Beamwidth	Horizontal: 60° Vertical: 30°
  GND	1*GND
  Reset Button	1*Reset Button
  Power Consumption	4.3W
  Waterproof Level	IP65
  LED Indicator	PoE/LAN,LED1,LED2,LED3
  Power Method	12V1A Passive PoE
  Lightning Protection	6000V
  Passive PoE	Passive power over ethenet via PoE/LAN (+4,5pins -7,8pins) Voltage range: 9-13.8V DC
  Reception Sensitivity	11b 1Mbps -92dBm±1.5dBm 11n MCS0: -92±1.5dBm 11n MCS7: -72±1.5dBm
  TDMA	/
  Operating mode	AP/Station/WISP/P2MP/WDS Repeater/Router
  Enable/Disable Wireless Radio	Support
  SSID Hidden	Support
  Wireless Client isolation	Support
  SSID Isolation	Support
  Channel Bandwidth	20/40MHz
  Channel Shift	/
  Wireless Access Control	Support
  Weak Signal Client Limitation	Support
  Transmission Power	Adjustable power by 1dBm
  WMM Capable	Support
  APSD Capable	Support
  Wireless Security	64/128 WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2
  Transparent Bridge	Support
  VLAN Tagging for SSID	Support
  DHCP Server	Support
  VPN Pass-Through	PPTP,L2TP
  Remote Web access	Support
  Schedule Reboot	Support
  Page Timeout	Support
  Ping Watchdog	Support
  Dyndns	noip, dyndns.org
  Network Diagnoses	Ping, Traceroute, Signal Scan
  Time and Date Setting	Support
  Firmware upgrade	Support
  Backup/Restore Configuration	Support
  Username Managerment	Support
  System Logs	Support
  Managed By Controller	PC Software CPE Assistant
  Package Contents	1*2.4GHz 11n 12dBi 150Mbps outdoor CPE O3 1*Power Adapter 1*PoE Injector 1*Quick Installation Guide
  Operation Temperature	-30℃ ~ 60℃
  Storage Temperature	-40℃ ~ 70℃
  Operating Humidity	10%~90% non-condensing
  Storage Humidity	10%~90% non-condensing
  Default login IP	192.168.2.1
  Default Login Username	admin
  Default Login Password	admin
  Certification	FCC/CE/RoHS
