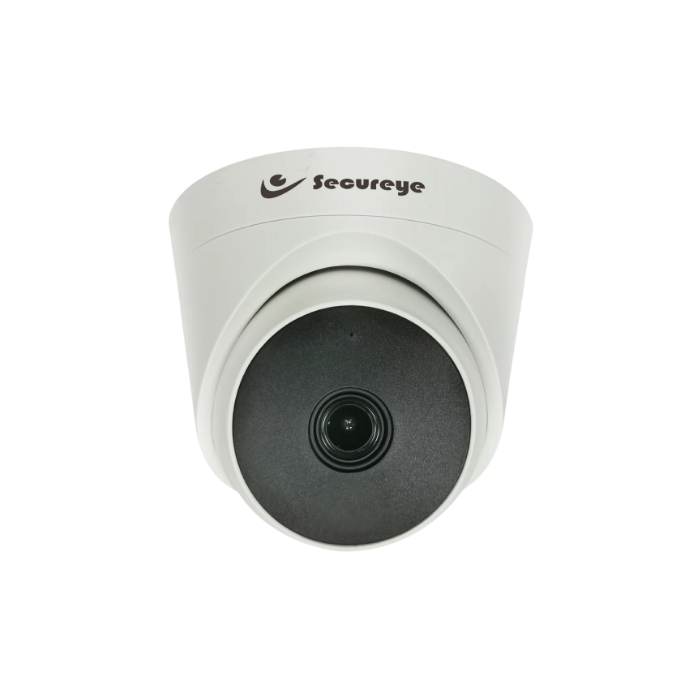

- 2MP HD Resolution – 1080P Full HD for clear surveillance
- Infrared Night Vision – 1PC SMD IR LED with 20m range
- Co-Axial Audio Support – Enhanced security with audio monitoring
- 3.6mm HD Lens – Wide-angle coverage for better monitoring
- Auto 3D-DNR – Reduces noise for superior image clarity
- Durable & Reliable – Ideal for home & business security
| Camera | |
| Solution | F37P+FH8536H |
| Image Sensor | 1/3″ CMOS Sensor |
| Signal System | PAL/NTSC |
| Effective Pixels | 1920(H) x 1080(V) |
| Electronic shutter | AUTO/ 1/50(1/60)-1/50,000sec |
| Min. Illumination | 0.1Lux@(F1.2,AGC ON), 0Lux with IR |
| Video Frame Rate | PAL/NTSC: 25/30fps |
| Video Output | TVI / AHD / CVI / CVBS |
| Feature | |
| S/N Ratio | ≥50dB |
| Noise Reduction | 2D/3D DNR |
| Day & Night | EXT/Auto/Color/B&W |
| Smart IR | Open/Close |
| White Balance | ATW/Manual |
| WDR | D-WDR |
| IR LED | 1PC SMD IR LED |
| IR Range | 20M |
| Audio | Co-axial Audio (TVI Mode Only) |
| Lens | |
| Focal Length | 3.6mm |
| Angle of View | Horizontal: 76° |
| Lens Type | Fixed Iris |
| Mount Type | M12 |
| General | |
| IP Rating | IP66 |
| Weight | 90g |
| Housing Material | Plastic |
| Power Supply | DC12V(±10%) |
| Power Consumption | <5W |
| Working Temperature / Humidity | – 20~+50℃ RH95% MAX |
| Dimensions | Φ84 x 70mm |
