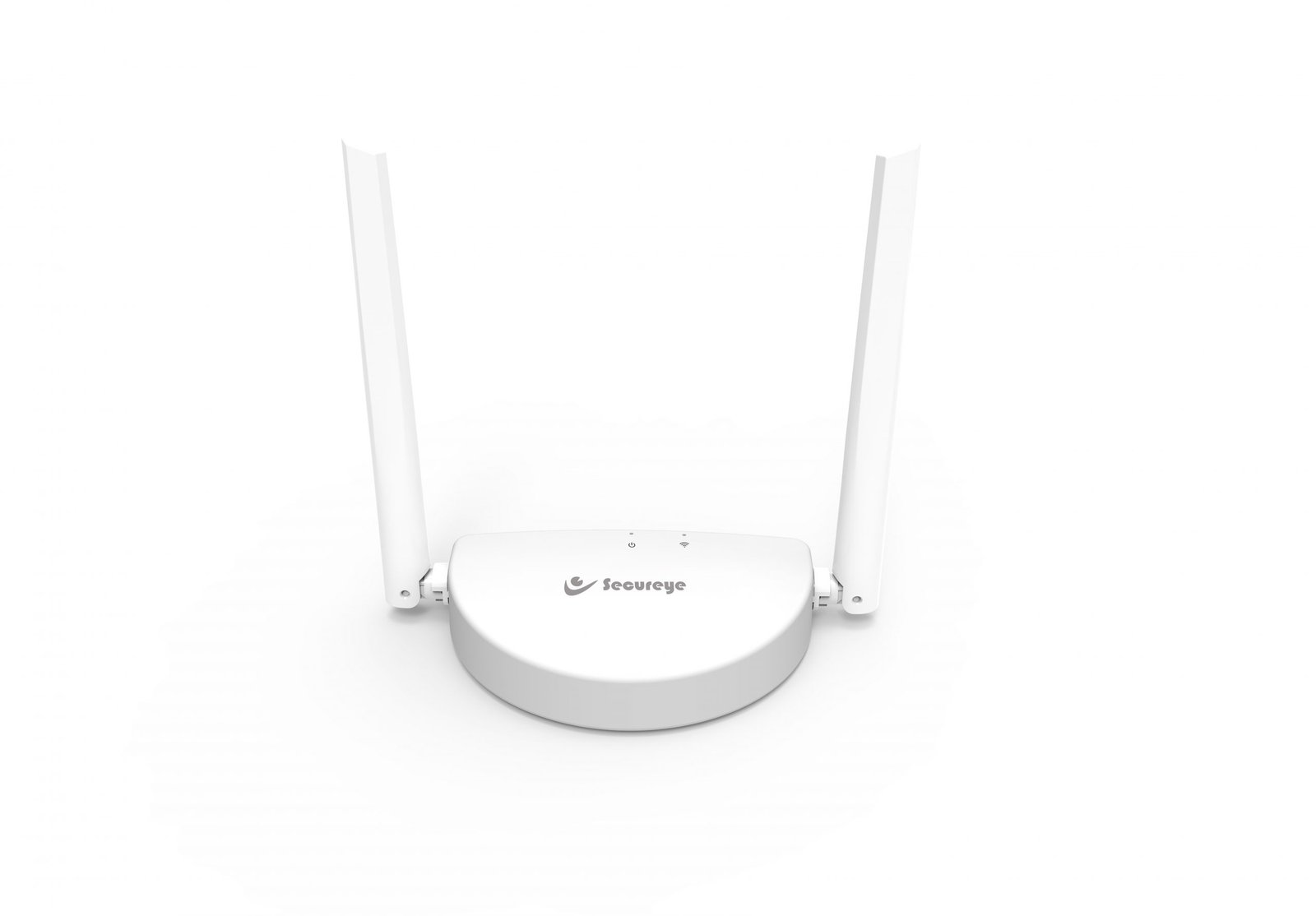

Secureye 4G WiFi Router S-4G1LW2 | 4G WiFi Router

Secureye S-4G1LW2 is a 4G WiFi router that converts TDD and FDD LTE signals to WiFi and Ethernet for local devices. It is based on LTE CAT4 and provides multi-interface connectivity for phones, laptops, tablets and other devices to access the same CPE simultaneously.

Key Details

• Model: S-4G1LW2 – 4G WiFi Router
• Network standards: TD-LTE, FDD-LTE, WCDMA, TD-SCDMA, GSM, GPRS, EDGE, EGPRS
• Bands: FDD B1/B2/B3/B4/B5/B7/B8/B20/B28A/B28B/B66, TDD B34/B38/B39/B40/B41, TDS B34/B39, WCDMA B1/B2/B4/B5/B8, GSM 850/900/1800/1900 optional
• Data rates: LTE FDD up to 150Mbps down / 50Mbps up, WCDMA up to 21Mbps down / 5.76Mbps up, TD-SCDMA up to 4.2Mbps down / 2.2Mbps up, EDGE up to 236.8kbps down / 118kbps up, GPRS up to 85.6kbps down and up, GSM up to 9.6kbps down / 2.7kbps up
• WiFi: IEEE 802.11b/g/n, 2.4GHz, up to 150Mbps, 2T2R, 20MHz and 40MHz channel bandwidth, modulation DSSS/CCK and OFDM, speeds 11Mbps for 11b, 54Mbps for 11g, 150Mbps for 11n
• Antennas: 4G main and diversity antennas, WiFi 2 x 3dBi external antennas, gain 2 to 3dBi
• Power: Input 5V to 16V typical 12V, output power 23dBm ±2dB for LTE FDD and TDD, 24dBm +1/-3dB for WCDMA and TD-SCDMA, GSM B5/8 +33 ±2dBm class 4, GSM B2/3 +30 ±2dBm class 1, WiFi 17dBm for 11b, 14dBm for 11g, 13dBm for 11n
• Interfaces: Nano USIM slot 1.8V/3.0V x1, Ethernet 10M/100M, reset button x1
• LEDs: Power signal and mobile data connection
• Users: Active user 8
• Software: IPv4/IPv6, PIN management and SIM lock, auto and manual network connection, full band scan with frequency lock and PCI lock, WPS, L2TP and PPTP client dialup and pass through, NAT with port forwarding and DMZ, firewall with IP/MAC/URL filter, SYN Flood, TCP port scan, diagnostics with TCP dump, ping, trace route, statistics for LTE status, connection time, uptime, DHCP client list, WiFi station list
• Physical: 110mm x 70.2mm x 24mm, about 50g
• Environment: Operating -20C to 60C, storage -25C to 70C, humidity 5% to 95%

Supports plug-and-play internet access with wired and wireless data transmission and wireless broadband data and voice services to end users.

What’s Included

• S-4G1LW2 Router
