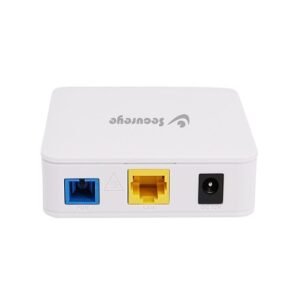

Secureye Fiber Products ONU ONT Xpon Router: 1G XPON ONU

Secureye Fiber Products ONU ONT Xpon Router: 1G XPON ONU - Image 2

Secureye Fiber Products ONU ONT Xpon Router: 1G XPON ONU

Original price was: ₹1,999.00.Current price is: ₹799.00.

Firewall: DDOS, Filtering Based on ACL/MAC/URL
O&M: WEB/TELNET/OAM(OMCI)/TR069
1G Xpon ONU Router – Dual mode Epon and Gpon

Categories: FIBER MODEM & ROUTER XPON ONT / ONU, XPON ONT -1GE Tags: ONT Xpon Router, XPON ONU Brand: Secureye

Description
Reviews (0)

Key Features

Dual Mode( can access gpon/epon olts ).
Compatible with popular OLTs
Industrial Design
Routing or Bridging Mode
Detecting Rogue ONU

General
PON interface	1 G/EPON port(EPON PX20+ and GPON Class B+) Wavelength: Tx1310nm,Rx 1490nm SC/UPC connector Receiving saturation: ≥ 2-8dBm Receiving sensitivity: ≤ -28dBm Transmitting optical power: 0-+4dBm Transmission distance: 20KM
LAN Interface	1 x 10/100/1000Mbps auto adaptive Ethernet interfaces.10/100/1000M Full/Half, RJ45 connector
LED	3, For Status of REG, SYS, LINK/ACT
Operating Condition	Temperature: -30°C – +70°C Humidity: 10% – 90% (non-condensing)
Storing Condition	Temperature: -30°C – +70°C Humidity: 10% – 90% (non-condensing)
Power Supply	DC 12V/0.5A
Power Consumption	≤4W
Dimension.	82mmx82mmx25mm (LxWxH)
Net Weight	85g
Software Parameters
Basic	Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Basic Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support authentication SN/Psw/Loid/Loid+Psw
Alarm	Support Dying Gasp Support Port Loop Detect Support Eth Port Los
LAN	Support Port rate limiting Support Loop detection Support Flow control Support Storm control
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(max 8 vlans
Multicast	Support IGMPv1/v2 Support IGMP Snooping Max Multicast vlan 8 Max Multicast Group 64
QoS	Support 4 queues Support SP and WRR Support 802.1 P
L3	Support Ipv4 Support DHCP/PPPOE/Static IP Support Static route Support NAT
Management	Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support WEB Support TELNET Support CLI
Throughput	Upstream >900Mbps Downstream >960Mbps
Paquete perdido	14Hours /Lost 0
