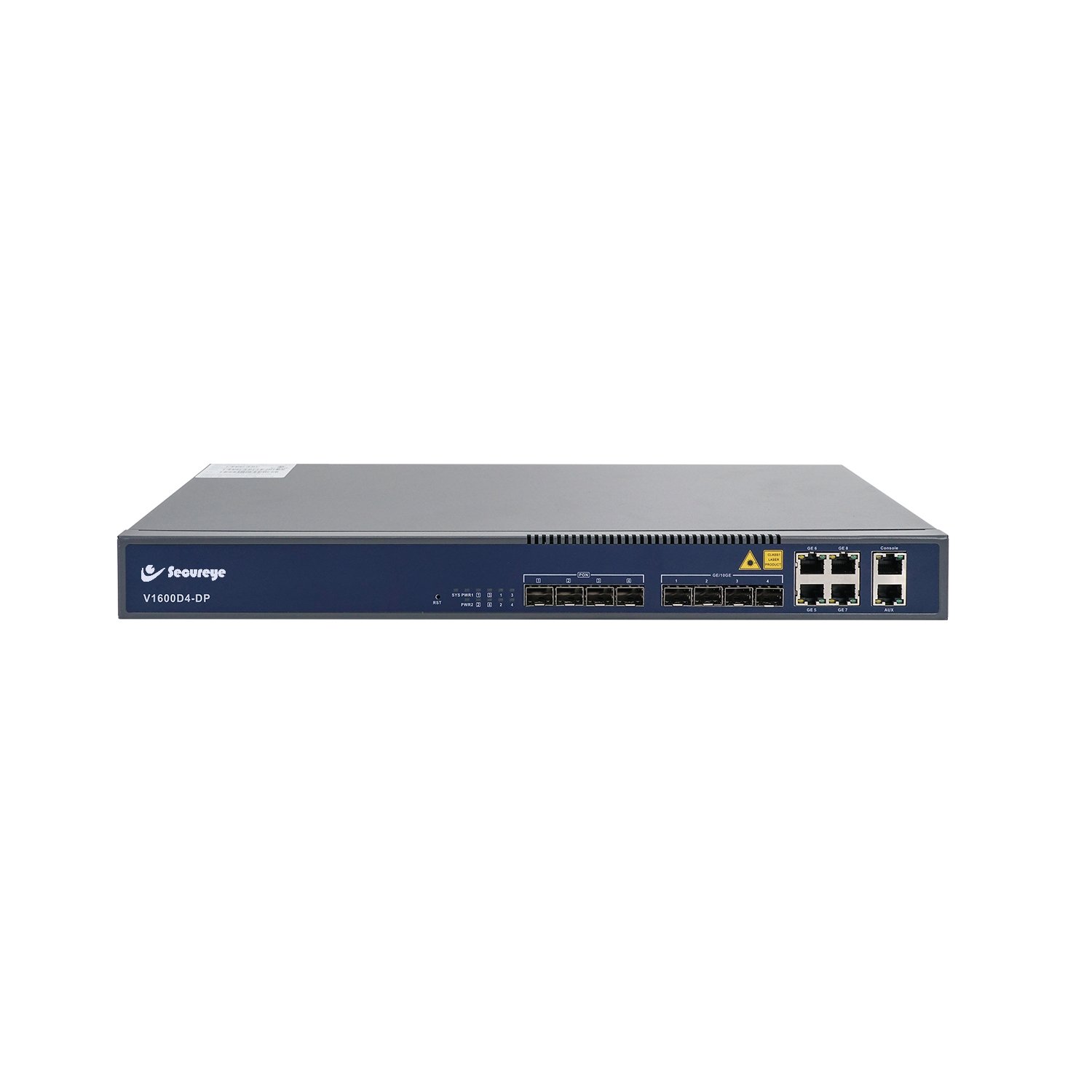

SECUREYE S-OLT-EPON 8 PORT OLT L3
Original price was: ₹151,000.00.₹128,000.00Current price is: ₹128,000.00.
100 in stock
Compare- DescriptionEPON OLT products are 1U height 19-inch rack mount products.
- Model NoS-OLT-EPON-16OLT-L3D (Dual Power Supply)
- Key Features
- Large capacity for ONTs deployment: Provide 8 PON ports, maximum support 512 ONT terminals.
- High bandwidth uplink ports: 4 *Gigabit Ethernet uplink ports, 4 *Gigabit SFP ports and 4* 10-Gigabit SFP+ uplink ports.
- Easy to manage, support CLI, SNMP, TELNET, SSH, WEB Interface Management.
- Desktop design, flexible deployment.
- Support dual power input.
- Support QoS feature.
- Support 3-Layer Switching.
Specifications
Appearance Rack 1U, 19 inch standard case 1G/10G Uplink Port Quantity 12 1G Copper Port Auto-negotiable(RJ45) 4 SFP 1G Interface 4 SFP+ 10G Interface 4 EPON Port Quantity 16 Module Type PX20+、PX20++ Max Splitting Ratio 1:64 Transmission speed Up and Down Symmetrical 1.25Gbps EPON Port Physical Interface SFP Slot Management Interface Management Interface 1*10/100M Ethernet out-of-band management port, 1*Console Port Management Mode Management Mode Support EMS Management Platform Support Telnet、CLI、WEB、SSH
Layer 2 Function Layer 2 Function Support Port VLAN、Protocol VLAN Support VLAN TAG/UNTAG, VLAN transform, VLAN transparent
Support 4096 VLAN
SupportIEEE802.3ad Link Aggregation
Support IGMP Snooping
Support RSTP
Support QoS based on port, VID, TOS and MAC address
SupportIEEE802.x Flow Control
Support Port Stability Statistic and Monitoring
Layer 3 Function Layer 3 Function Support Dynamic Routing RIP v1/v2 Support Dynamic Routing OSPF
PON Port Function PON Port Function Conform to IEEE802.3ah International Standard Conform to China CTC2.1/3.0 Standard
Support ONU Uplink and Downlink Speed Limiting Functions
Support ONU Auto-discovery/Link Detection/Remote Upgrade of Software
Support Various LLID Configuration and Single LLID Configuration
Support Broadcast Storm Suppression
Support Port Isolation Between Different Ports
Support ACL and SNMP to Configure Data Packet Filter Flexibly
Support Dynamic Distance Calculation on EMS Online
Support Credit Time Control, CATV Management Special Function
Dimension(L*W*H)(mm) 442*320*43 Weight(kg) 6.5 Power Input AC AC 100～240V, 50/60Hz, DC -48V Dual Power Backup Support Max Power Consumption(W) 95W Environmental Requirement Operating Temperature 0～+50℃ Storage Temperature 40～+85℃ Relative Humidity 5～90%(non-condensing) Overview Satisfactory standard Meet IEEE802.3ah standard Support IPv6 Function
Support DN, IPv6 Ping, IPv6 Telnet
Support ACL based on source IPv6 address, destination IPv6 address, L4 port, protocol type, etc.
Support MLD v1/v2 snooping
IP Route Support static route, dynamic route RIP v1/v2,OSPF v2 Easy to Manage Friendly EMS/Web/Telnet/CLI/SSH management CLI command style similar to mainstream manufacturers
Support APP management
Fully Open Platform Open to any brand of ONU High performance cost 1U height compact design dopt mainstream chip scheme
Management Function Fan Group Control; Port Status monitoring and configuration management;
Online ONU configuration and management;
User management, Alarm management
Multicast IGMP snooping; 256 IP Multicast Groups; EPON Function Support port-based rate limitation and bandwidth control; In compliant with IEEE802.3ah standard;
Up to 20KM transmission Distance;
Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;
Support Dynamic Bandwidth Allocation (DBA);
Support ONU auto-discovery/link detection/remote upgrade of software;
Support VLAN division and user separation to avoid broadcast storm;
Support various LLID configuration and single LLID configuration;
Different user and different service could provide different QoS by means of different LLID channels;
Support power-off alarm function, easy for link problem detection;
Support broadcasting storm resistance function;
Support port isolation between different ports;
Support ACL and SNMP to configure data packet filter flexibly;
Specialized design for system breakdown prevention to maintain stable system;
Support dynamic distance calculation on EMS online
Key Features Support C/S & B/S architecture Support auto topology or modify manually
Add Trap Server to detect ONU automatically
EMS can add and configure ONU automatically
Add ONU position information
Support EMS APP
