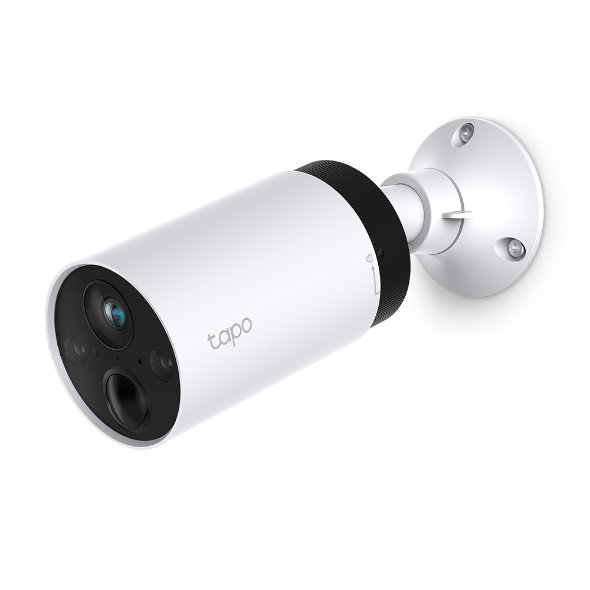

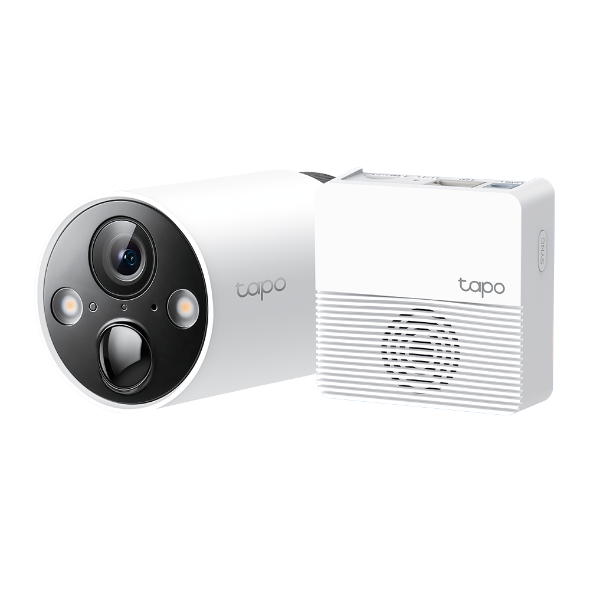

TP-Link Tapo C420S1 Smart Wire-Free Security Camera System
Tapo C420S1 features 2K QHD resolution, 180-day battery life, and full-color night vision,IP65 with a starlight sensor. It uses Smart AI for detecting people, pets, and cars, offers wire-free placement, and includes a light and sound alarm. With two-way audio and flexible storage options (microSD card or cloud storage).

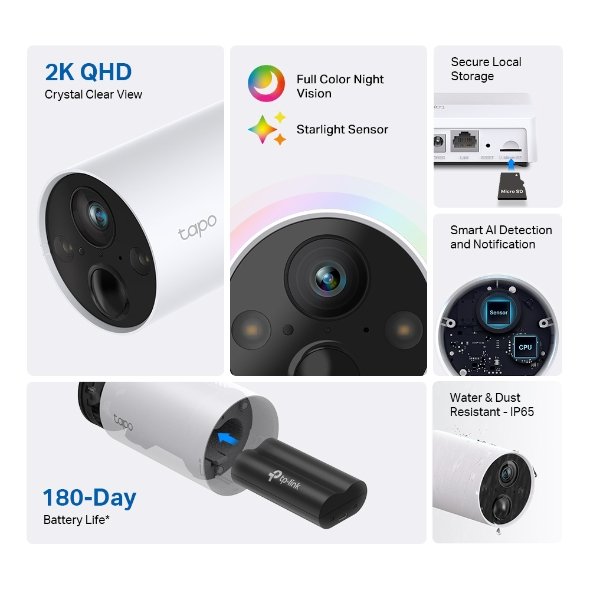

- 2K QHD-Now with 1.7 times more pixels in Tapo C420S1 than 1080p, providing clearer videos and photos.
- 180-Day Battery Life-The rechargeable and removable battery with a low-power protocol extends your usage.*
- Full-Color Night Vision-Reveal high-fidelity details and color at night with the starlight sensor.
- Smart AI Detection and Notification-Smart AI identifies people, pets, and cars, notifying users as needed.
- Wire-Free Placement-No wires means you can place the cameras almost anywhere inside or outside-whatever works for you!

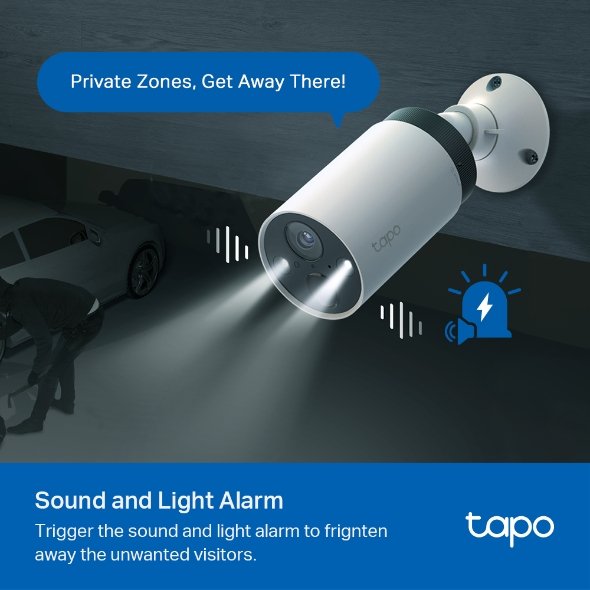

- Light and Sound Alarm-Tapo C420S1 triggers sound and light as an alarm when motion is detected.
- Two-Way Audio-Enables communication through a built-in microphone and speaker.
- Flexible Storage Choices-Save recorded videos on the hub-installed microSD card† (up to 512 GB) or by using Tapo Care‡ cloud storage services.
- IP65 Water&Dust Resistant-Offers excellent waterproof and dustproof performance for outdoor scenarios.
| Brand Name | TP-Link |
| Model Name | TAPO C420S1 |
| Dimension(cm) | 12X7X7X |
CAMERA | Image Sensor: 1/3″ Progressive Scan CMOS Starlight Sensor Lens: Focal Length: 3.2 mm Aperture: F1.6 Field of View: 113° (Diagonal), 97°(Horizontal), 54°(Vertical) Night Vision: 850 nm IR LED (49 ft / 15 m) Full-Color Night Vision Lighting: 2× Built-in Spotlights Interface & Button : 1× SYNC/RESET Button Hub Compatibility: Compatible with Tapo H200 (Included) |
HUB | Device Compatibility: Works with Tapo smart sensors, buttons, Sub-1G switches, cameras, and video doorbells. All Supported Products> Connection Capacity: Up to 64 Sub-1G switches, sensors, or buttons + 4 cameras or video doorbells Interface & Button: 1× Ethernet Port 1× RESET Button 1× SYNC Button 1× MicroSD Card Slot (Up to 512 GB) |
VIDEO & AUDIO | Maximum Resolution: 2K QHD 4MP (2560 × 1440 px) Frame Rate: 15 fps/20 fps Digital Zoom: 12× Video Compression: H.264 Live View: Yes Image Enhancement: 3DNR WDR Audio Input & Output: Built-in Microphone and Speaker Audio Communication: Two-Way Audio with Noise Cancellation Siren Volume: Camera: 92 dB (Level measured at 4-inch/10-cm distance) Hub: 100 dB (Level measured at 4-inch/10-cm distance) |
STORAGE | Local Storage: MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards > Cloud Storage: Tapo Care Cloud Storage Services (Subscription required) |
DETECTION and NOTIFICATIONS | Sensor: Single Motion Sensor (FOV: 110° horizontal) Single Ambient Light Sensors AI Detection: Motion Detection Person Detection Pet Detection Vehicle Detection Activity Zones: Yes Output Notification : System Notification System Notification with Snapshot (Tapo Care Services) |
NETWORK | Network Connectivity: Connect via Wi-Fi or Ethernet Wireless Connectivity: IEEE 802.11b/g/n, 2.4 GHz Wi-Fi Sub-1G, 868MHz or 922MHz (Used for local connection between camera and hub) Ethernet Port: 1× 10/100 Mbps RJ45 Port on Hub |
SECURITY | 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK |
POWER | Power Source: Hub: 9V DC Power AdapterCamera: 6700 mAh Removable Rechargeable Lithium-ion Battery Optional Solar Panel: Tapo A200 (Sold separately) Input Voltage: Camera Battery Pack Adapter Input: 100-240 V, 50/60 Hz Hub Adapter Input: 100-240 V, 50/60 Hz, 0.3 A Output Voltage: Camera Battery Pack Adapter Output: 5.0 V, 1.0 A Hub Adapter Output: 9.0 V, 0.85 A |
GENERAL | Smart Integration: Google Assistant, Amazon Alexa Weather Resistance: Camera: IP65 System Requirements : Tapo App: iOS 11.0 or higher, Andriod 5.0 or higher Mounting Options: Tabletop Ceiling-Mounted Wall-Mounted Operating Temperature: Camera: -20℃~45℃ Hub: 0℃~40℃ Storage Temperature: -20℃~60℃ Operating Humidity: 10%~90% RH, Non-condensing Storage Humidity: 5%~90% RH, Non-condensing Charging Temperature: 0-55℃ Dimensions: Camera Dimensions: 4.35 × 2.52 × 2.52 in (110.6 × 64.2 × 64.2 mm) Hub Dimensions: 2.8 × 2.8 × 1.2 in (71.45 × 71.45 × 31.25 mm) Package Contents: Tapo C420 Camera Tapo A100 Battery Tapo H200 Hub USB Adapter USB Adapter Cable DC Power Adapter Mounting Anchors Mounting Screws Mounting Template Camera Bracket Quick Start Guide RJ45 Ethernet Cable Certifications: CE, FCC, RoHS, RCM |
WARRANTY & MANUFACTURER DETAILS
| Warranty Period | 1 Year |
| Warranty Provider | Contact TP-link Service Centre for warranty |
| Country of Origin | China |
| Manufacturer Details | TP-Link Corporation Limited, Kowloon, Hong Kong |
| Importer Details | TP-Link India Private Limited, Palghar, Vasai, 401208 |
| Packer Details | TP-Link India Private Limited, Palghar, Vasai, 401208 |
