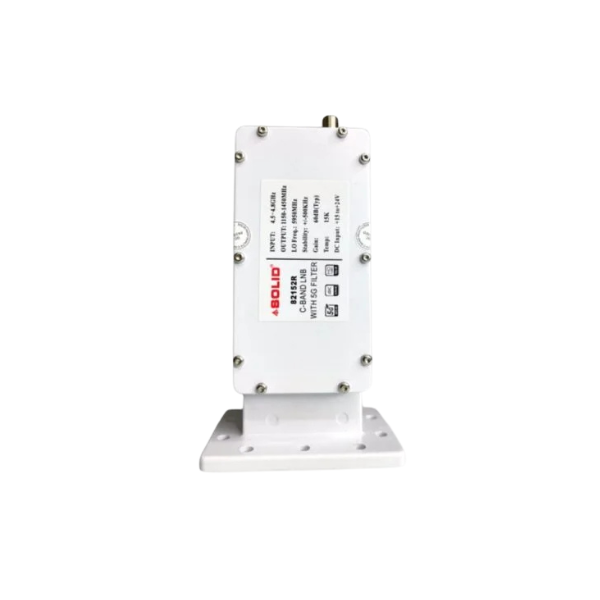

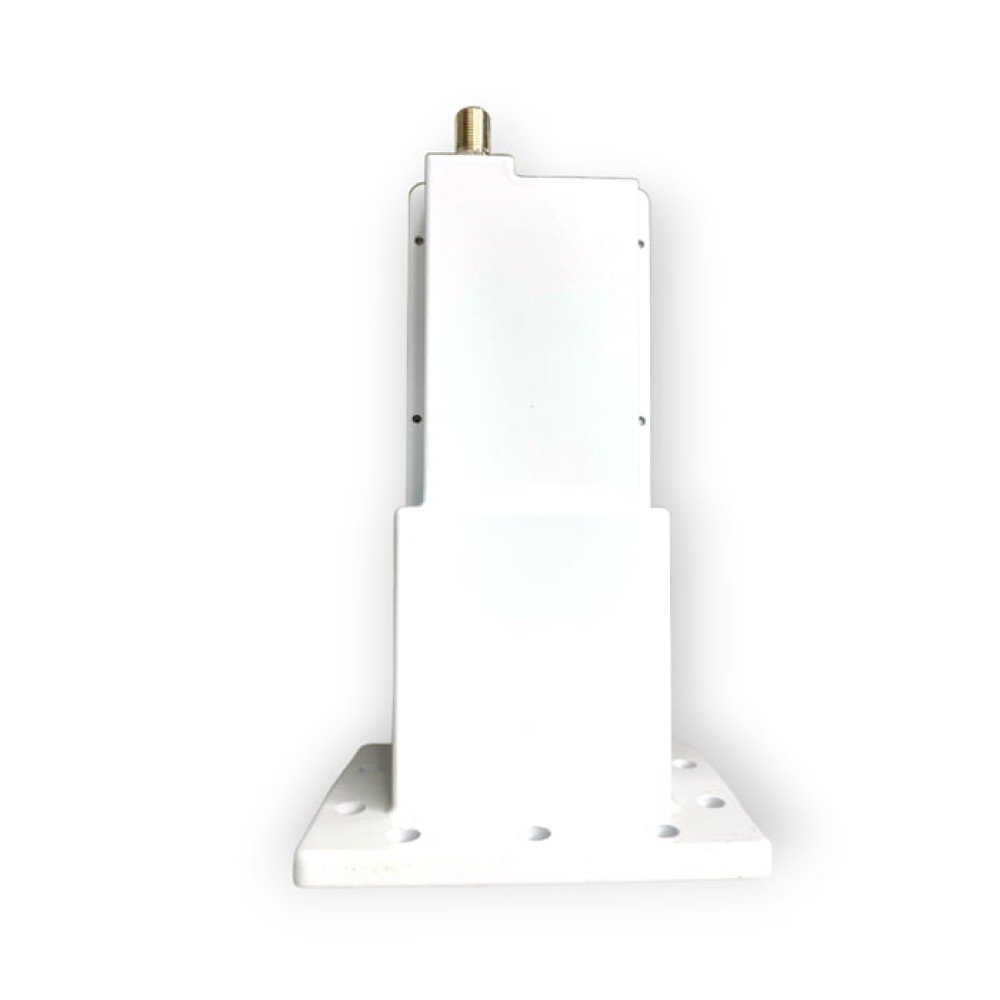

SOLID 82152R Extended C-Band 5G Filter LNBF

An Extended C-Band 5G Filter LNBF (Low-Noise Block downconverter) is designed to mitigate interference from 5G signals in the extended C-band frequency range (4.5-4.8 GHz)

Here’s how it works –

Interference Rejection –

The filter blocks unwanted 5G signals that fall within the extended C-band frequency range, preventing them from interfering with satellite signals

Signal Isolation –

 It isolates the satellite carriers within its passband, ensuring that only the desired satellite signals are received

Improved Performance –

By filtering out 5G interference, the LNBF helps maintain the quality and integrity of the satellite signal, reducing issues like pixelation and signal loss

.

Model – 82152R

Input Freq. (GHZ) – 4.5~4.8 GHz

Output Freq. (MHz) – 1150-1450 MHz

L.O. Freq. & Stability  – 5.950 GHz+/- 500KHz

Noise Temp.  – 15K (@+25C)  – 30K Max

Input VSWR    – 2.5:1 Max

Image Rejection  – 45 dBc min.

Conversion Gain  – 60dB typ. 55dB min. 70dB max.

Output VSWR  – 2.5 : 1 max.

Gain flatness   – 4 dBp-p max.

Gain ripple   – +/- 0.5 dB max.

1dB gain compression point – +5 dBm min.

Output impedance   –  75ohms

Leakage {@input port)  – -45dBm max.

Phase Noise –  -65dBc/Hz @ 1KHz Offset

• -80dBc/Hz @ 10KHz Offset
• -95dBc/Hz @ 100KHz Offset

Power Supply   – 012 to +24V DC

Required Current –  250 mA max.

Operating temperature  – -40’C to +60’C

Storage temperature   –  -40’C to +80’C C33

Relative Humidity   –  0% to 95% RH

Input waveguide flange   –   WR-229

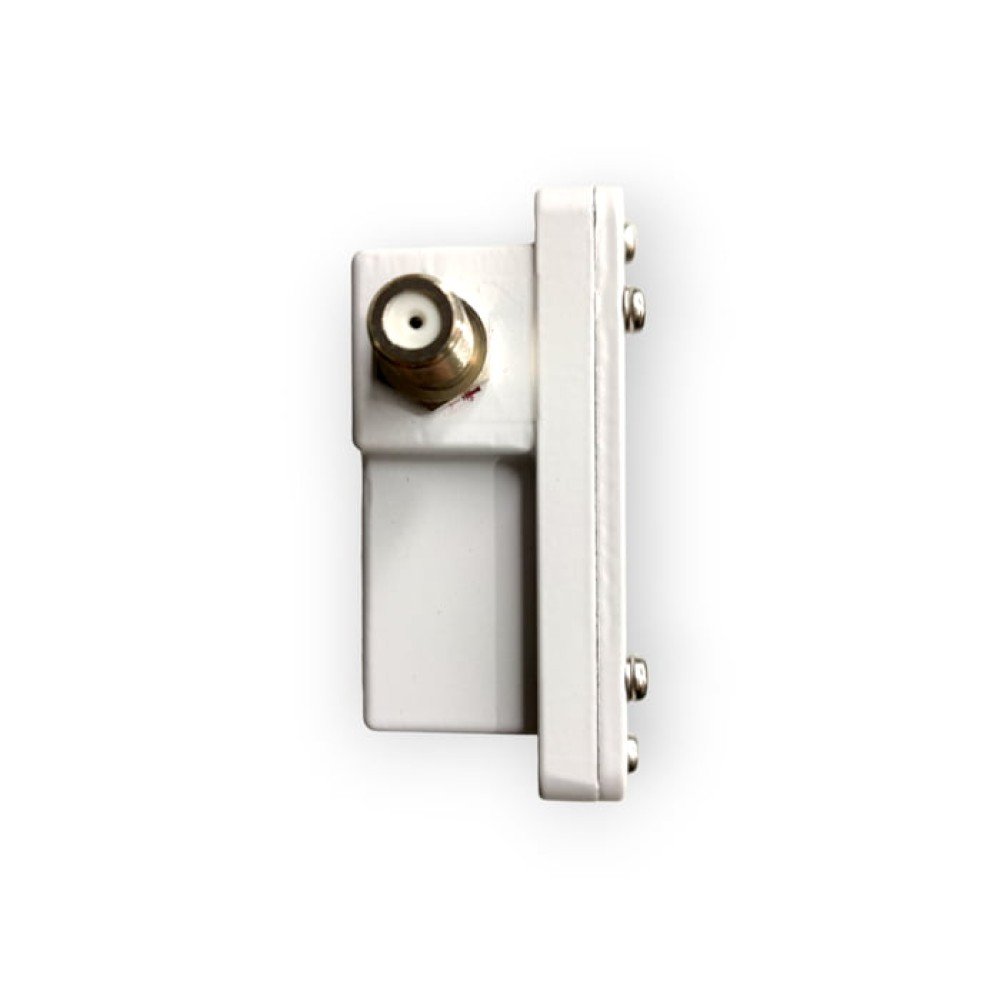

If output connector  –  – F-Type female

DC Input – +15 to 24 V

Weight    –    575g

Tested in :

We have successfully tested this LNB on Bangabandhu1 Satellite for Extended C-Band Signals.

Warning :

It will not work, in Normal C-Band Signals, It is only for extended C-Band signals. You can Receive TV Signals from the Bangabandhu C-Band satellite by fitting on the C-Band Dish Antenna.
