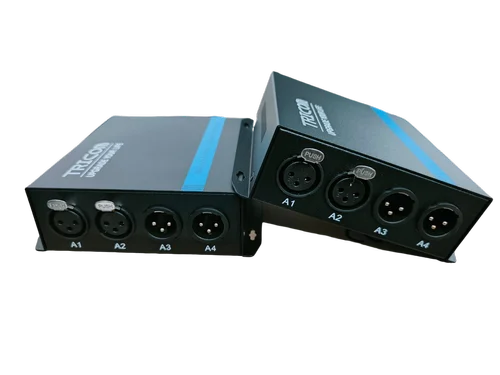

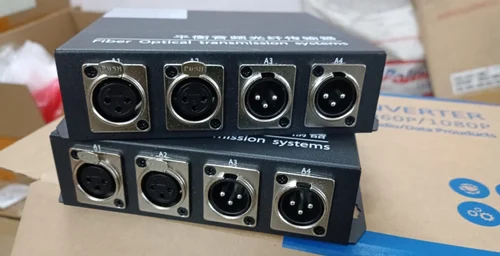

TRICOM Balanced XLR Audio to Fiber Converter Bi-directional (2 channel Bi-directional)
Original price was: ₹28,000.00.₹19,999.00Current price is: ₹19,999.00.
Product Details:
| Supported Application | Plug and Play |
| Distance | 20km |
| Brand | TRICOM |
| Wavelength | 1310/1550 |
| Color | Black |
| Usage/Application | Theatres, Broadcasting, Stages Events, Parks, Live Events, Two Way Communication, Defence. |
| Material | Metal |
| Bluetooth Enabled | No |
| Wifi Enabled | No |
| Number Of Ports | 2 + 2 Ports (2 Input and 2 Output) |
| Power | 5V 2A |
| Item Weight | 3 KG |
| Battery Included | No |
| Warranty and service | 1 Year Warranty |
| Speed | Over Fiber |
| Temperature | 5-50 degree |
| Voltage | 5V2A |
| Power Input | 5V2A Adapter |
| Audio support | XLR Audio |
| Fiber Mode | SC Port |
| Serial Port Connector | No |
| SDI Video Outputs | 2 + 2 Ports (2 Input and 2 Output) |
| SDI Video Inputs | 2 + 2 Ports (2 Input and 2 Output) |
| Analog Output Range | 20km |
| Number Of Channels | 4 channel (2 + 2 Ports (2 Input and 2 Output)) |
| Total Harmonic Distortion | <0.05% |
| Working Temperature | -35degree to 70 degree Celcius |
| Frequency Response | 10~3kHz |
| Channel Physical Interface | XLR |
| Working humidity | 0~95% ( Non Condensation) |
| Audio Input/Output Impedence | 600 Ohm |
| Audio Maximum Input/Output Voltage | 3.0Vp-p |
| Signal to Noise Ratio | >95dB |

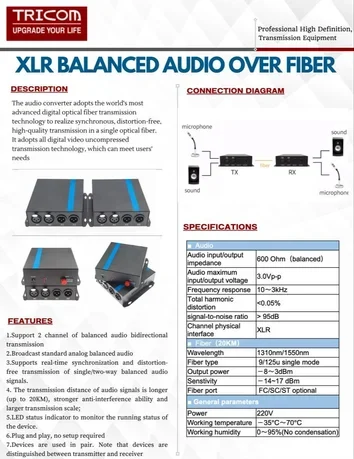

XLR Audio to Fiber Extenders support 2 + 2 Bidirectional Channels (2-Way Communication 2 Input + 2 Output ports) – 4 independent Balanced XLR audio ports of 16-bit digitally encoded broadcast quality audio over one Single Mode or Multimode (MM) optical fiber. These units are single direction – audio signal is transmitted from T (Transmitter) in the direction of R (Receiver).
These professionally designed devices are typically used in applications for Staging, Parks, Broadcast, Studio Audio and professional AV applications, etc. Use SC UPC / PC connectors with SM and MM fiber optic cables.
Plug and Play design ensures easy installation and operation, no configuration or driver installation are required.
Additional Information:
- Delivery Time: 1 day
- Packaging Details: 1x Transmitter, 1x Receiver, 2x Power Adapters, User Manual
