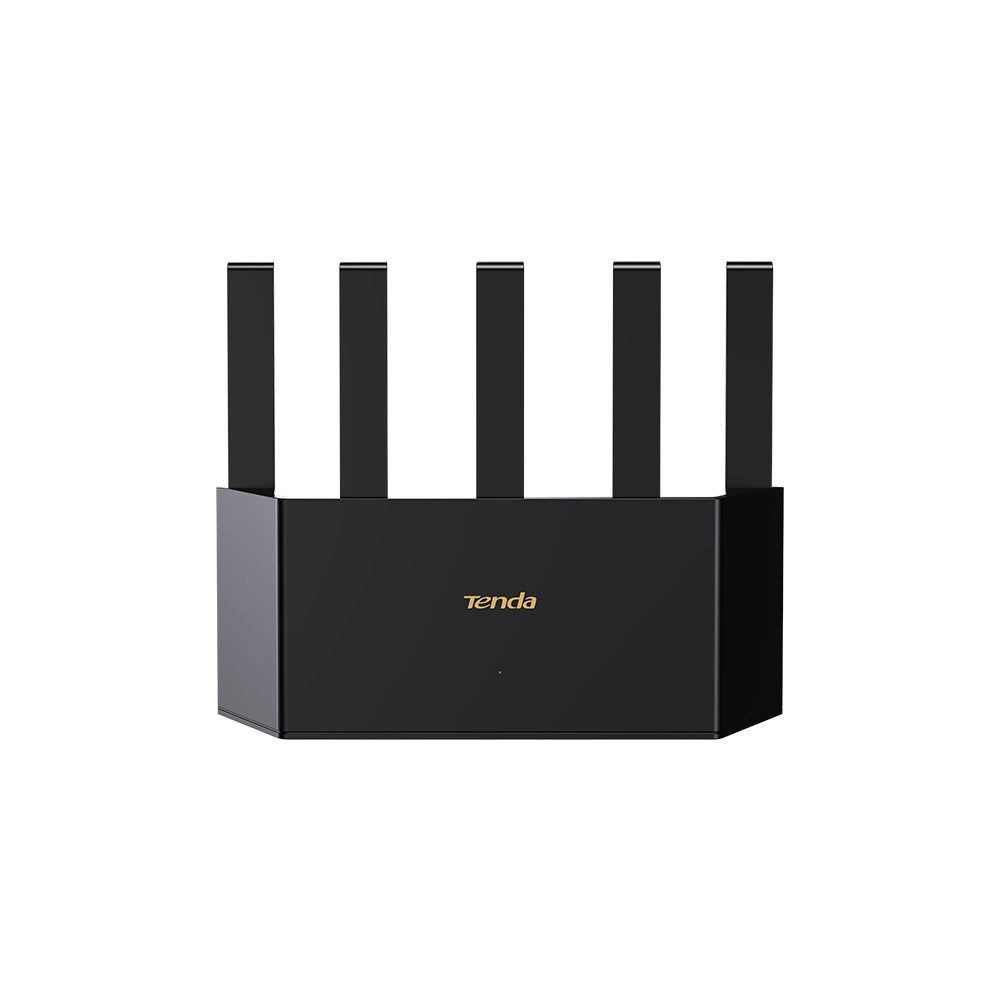

Wi-fi Router Tenda RE3L v1.0 BE3600 Dual Band Wi-Fi 7

Standard&Protocol   IEEE802.3, IEEE802.3u,IEEE802.3ab

CPU                          Dual-Core 1GHz CPU

RAM                         512MB

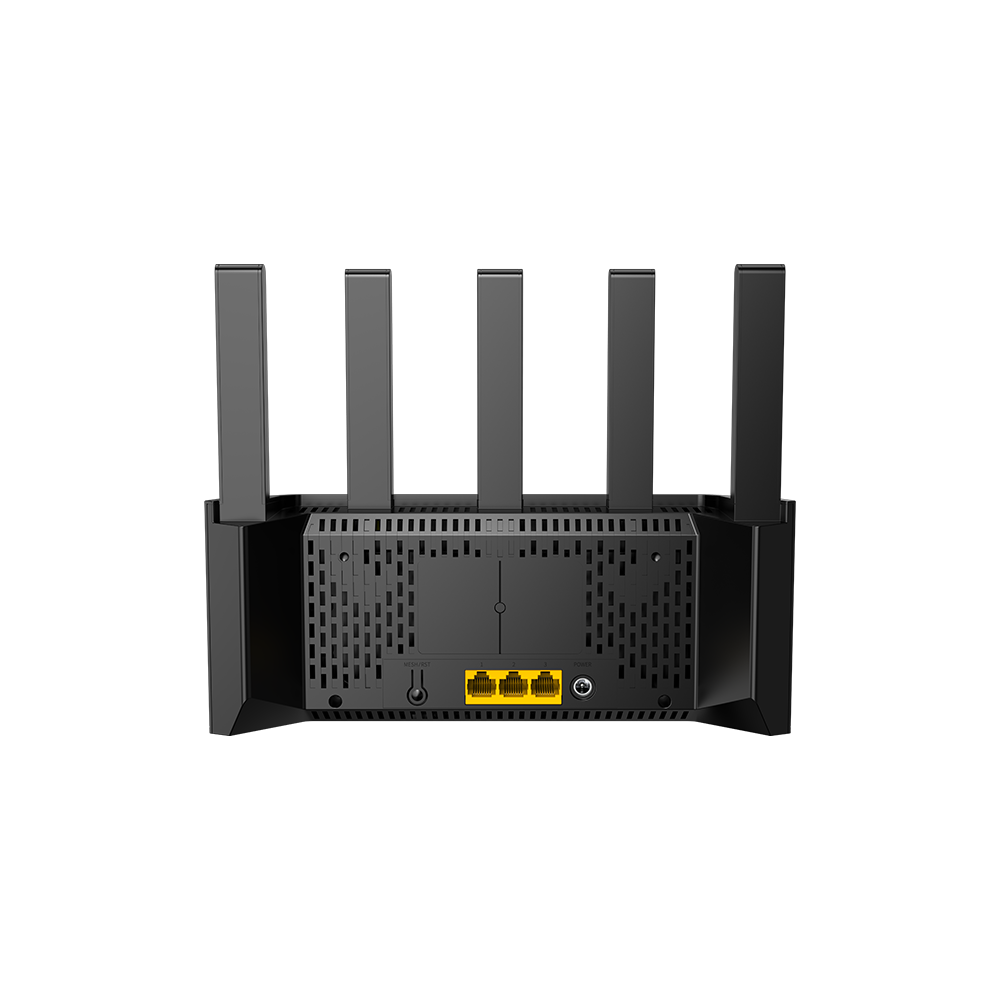

Interface                   3*10/100/1000Mbps WAN/LAN ports

Antenna                    5*external antennas

Button                       1*Mesh/Reset button

Power                        Input: AC 100-240V~50/60Hz
Output:                      DC 12V⎓1.5A

LED indicator            1* LED

Dimensions               (L*W*H)244*56*200mm

                                   IEEE 802.11be/ax/n/b/g 2.4 GHz

                                  5G: 5150-5350MHz(CH36-CH64)
5725-5850MHz(CH149-CH165)

Frequency                 5 GHz: 2882 Mbps (802.11BE, HE160)

                                  2.4 GHz: 688 Mbps (802.11BE)

Transmission Power  SSID broadcasting and hiding
MU-MIMO
Beamforming signal directional transmission technology
OFDMA

Wireless Security     WPA2-PSK
WPA3-SAE/WPA2-PSK
Wireless Security: Enable/Disable
WPS(WiFi Protected Set-up) fast encryption

Network Protocol                 IPv4&IPv6

Operating Mode                  Router Mode
AP Mode
Universal Repeater Mode（Client+AP,WISP）

DHCP                                  DHCP Server
DHCP Client List
DHCP Static IP Address Reservation and Allocation

Parental Control                  Client Filter
URL Filter
Time Limit

Virtual Server                       Port Forwarding
DMZ Host
UPnP

Firewall                                ICMP Flood Attack Defense
TCP Flood Attack Defense
UDP Flood Attack Defense
Block Ping From WAN

DDNS                                   DynDNS, no-ip, oray, 88ip

VPN                                     IPSec Transparent Transmission
PPTP Transparent Transmission
L2TP Transparent Transmission
PPTP VPN Server
PPTP VPN Client
L2TP VPN Client

Special Features                WAN/LAN Port Auto-Negotiation
Wi-Fi+(Mesh System)
Smart Diagnosis
IPTV
IPv6
Smart LED on/off

Other Function                   Support App and web management
Bandwidth Control
Guest Network
MAC Address Clone
Supports black list and white list
Unify 2.4 GHz & 5 GHz
Static Routing
Remote Web Management
Backup & Restore configurations
Firmware upgrade online

Certification                        CE, FCC,RoHS

Temperature                       Operating Temperature : 0℃~40℃
Storage Temperature : -40C ~70℃

Humidity                             Operating Humidity : 10 %~90% RH non-condensing
Storage Humidity : 5 %~ 90%RH non-condensing

Package Content               Wi-Fi Router *1
RJ45 Ethernet Cable*1
NFC Sticker*1
Power Adapter*1
Quick Installation Guide*1
