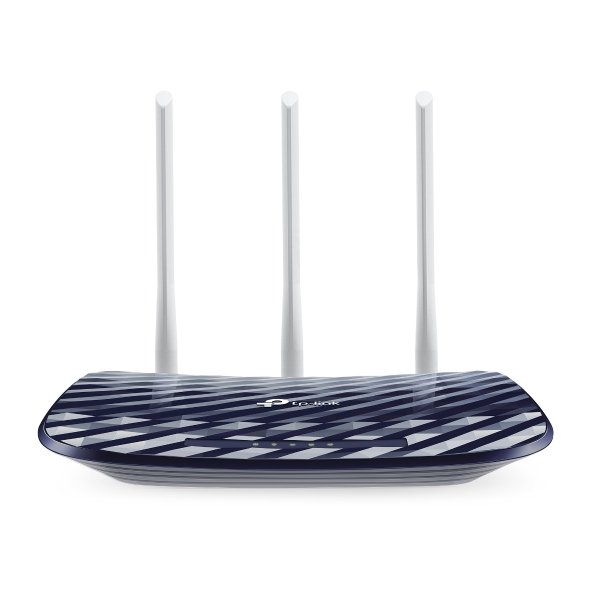

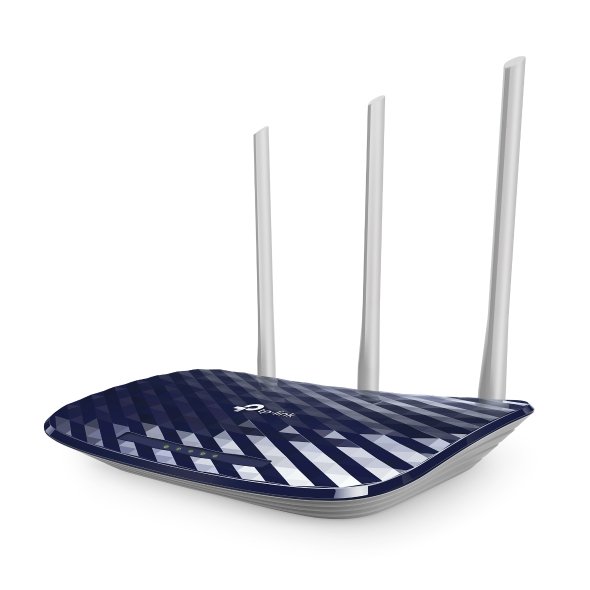

Archer C20
AC750 Wireless Dual Band Router
- High-Speed Wi-Fi: Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth.†
- Far-Reaching Coverage: Three external antennas provide stable omnidirectional signal and superior wireless coverage.
- Multi-Mode 3 in 1: Supports Router, Access Point, and Range Extender to add flexibilities.
- WPA3 Security: Brings new capabilities to improve cybersecurity in personal networks.§
- IPTV Support: IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming.
- Parental Controls: Manages when and how connected devices can access the internet.
- Guest Network: Provides separate access for guests while securing the host network.
| WIRELESS | |
|---|---|
| Standards and Protocols | Wi-Fi 5 IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/b/g 2.4 GHz |
| WiFi Speeds | AC750 5 GHz: 433 Mbps (802.11ac) 2.4 GHz: 300 Mbps (802.11n) |
| WiFi Range | 2 Bedroom Houses 3× Fixed Antennas |
| WiFi Capacity | Medium Dual-Band |
| Working Modes | Router Mode Access Point Mode Range Extender Mode |
| SECURITY | |
|---|---|
| Network Security | SPI Firewall Access Control IP & MAC Binding Application Layer Gateway |
| Guest Network | 1× 5 GHz Guest Network 1× 2.4 GHz Guest Network |
| WiFi Encryption | WEP WPA WPA2 WPA/WPA2-Enterprise (802.1x) WPA3-Personal |
| HARDWARE | |
|---|---|
| Processor | Single-Core CPU |

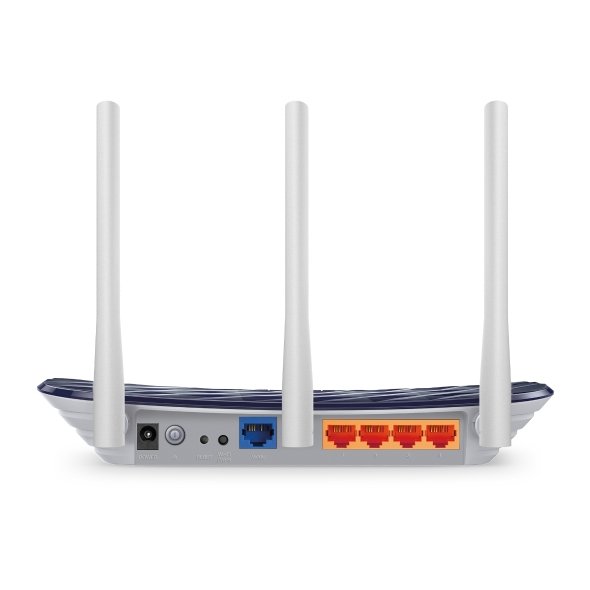

| Ethernet Ports | 1× 10/100 Mbps WAN Port 4× 10/100 Mbps LAN Ports |
| Buttons | WPS/Wi-Fi Button Power On/Off Button Reset Button |
| Power | 9 V ⎓ 0.6 A |
| SOFTWARE | |
|---|---|
| Protocols | IPv4 IPv6 |
| Parental Controls | URL Filtering Time Controls |
| WAN Types | Dynamic IP Static IP PPPoE PPTP L2TP |
| Quality of Service | QoS by Device |
| NAT Forwarding | Virtual Server Port Forwarding Port Triggering DMZ UPnP |
| IPTV | IGMP Proxy IGMP Snooping |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | NO-IP Comex DynDNS |
| Management Features | Tether App Webpage |
| OTHER | |
|---|---|
| System Requirements | Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) |
| Certifications | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| TEST DATA | |
|---|---|
| WiFi Transmission Power | CE: <20dBm(2.4GHz) <23dBm(5GHz) |
| WiFi Reception Sensitivity | 5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm |
| PHYSICAL | |
|---|---|
| Dimensions (W×D×H) | 9.1 × 5.7 × 1.4 in (230 × 144 × 35 mm) |
| Package Content | Wi-Fi Router Archer C20 Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.
‡Actual network speed may be limited by the rate of the product’s Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
§Use of WPA3 requires clients to also support WPA3.
