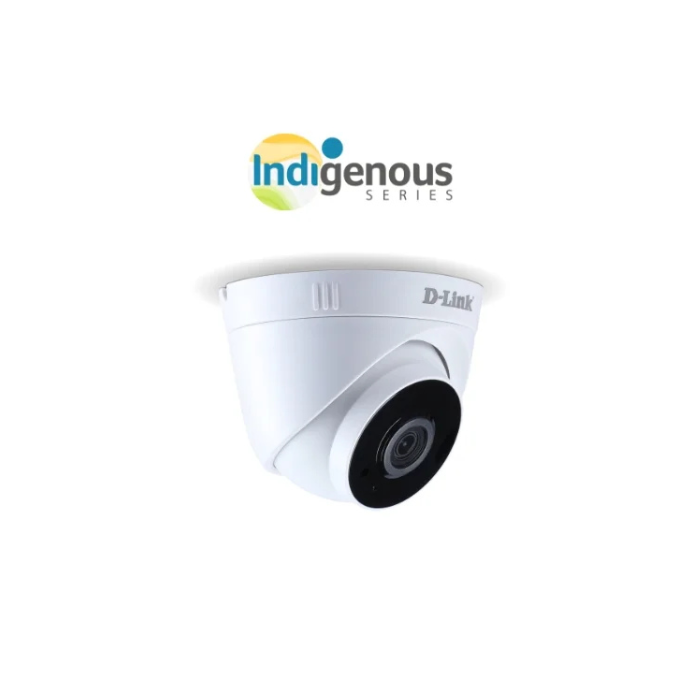

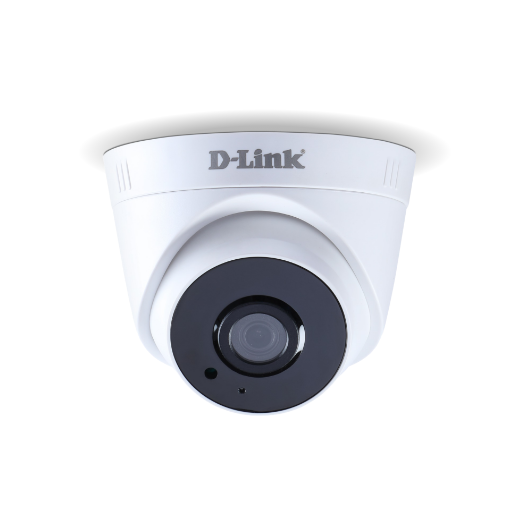

D-Link DCS-F5614-L1 | 5MP Dome IP Camera with Audio | 1/2.9″ Progressive Scan CMOS Sensor | 3.6mm Fixed Lens | Full HD 2592×1944 Resolution | Smart Functions | Dual Stream Support
The D-Link DCS-F5614-L1 5MP Dome IP Camera delivers crystal-clear 2592×1944 Full HD resolution, built-in audio, and intelligent security features. Equipped with a 3.6mm fixed lens, 30m IR night vision, DWDR, 3DNR, and Defog technology, it ensures high-quality surveillance in all lighting conditions.
The D-Link DCS-F5614-L1 5MP Dome IP Camera is a high-performance surveillance solution, designed to provide clear and detailed security footage both day and night. D-Link DCS-F5614-L1 IS featuring a 1/2.9″ Progressive Scan CMOS sensor, it delivers stunning 2592×1944 resolution video, ensuring sharp and precise monitoring of critical areas.
D-Link’s Indigenous Series is a range of surveillance solutions designed and manufactured in India, aligning with the government’s ‘Make in India’ initiative. This series includes a variety of IP-based cameras and Network Video Recorders (NVRs) tailored to meet the security needs of Indian consumers.
D-Link DCS-F5614-L1 comes with its 3.6mm fixed lens, the camera offers a balanced field of view for capturing key locations, making it ideal for homes, offices, warehouses, and commercial spaces. Infrared (IR) night vision up to 30m allows for detailed surveillance even in complete darkness.
D-Link DCS-F5614-L1 has DWDR (Digital Wide Dynamic Range) and 3D Noise Reduction (3DNR) technologies optimize image quality by balancing light exposure and reducing noise, ensuring crisp and clear images in challenging lighting conditions.
Its Defog technology enhances visibility in foggy or low-contrast environments, making it a reliable choice for outdoor installations. The Day/Night (ICR) mode ensures seamless adaptation to varying light levels, providing round-the-clock monitoring.
D-Link DCS-F5614-L1 is built-in smart functions, including motion detection and Region of Interest (ROI) tracking, help improve security efficiency by focusing on critical areas. The dual-stream support ensures smooth video streaming and efficient bandwidth management.
D-Link DCS-F5614-L1 comes with an integrated microphone, the DCS-F5614-L1 enhances security by capturing audio, making it perfect for retail stores, offices, warehouses, and residential surveillance. Designed to withstand various environments, this reliable and intelligent camera is a powerful addition to any security system.
Key Features:
✔ 5MP High-Resolution Video – Captures 2592×1944 ultra-clear surveillance footage.
✔ 3.6mm Fixed Lens – Optimized field of view for detailed monitoring.
✔ IR Night Vision (Up to 30m) – Clear black-and-white imaging in total darkness.
✔ DWDR & 3DNR – Reduces overexposure and noise for superior image clarity.
✔ Day/Night (ICR) Mode – Automatic switching for 24/7 surveillance.
✔ Defog Technology – Enhances visibility in foggy conditions.
✔ Smart Functions & ROI – Advanced analytics for proactive security alerts.
✔ Dual Stream Support – Optimized bandwidth management for smooth monitoring.
✔ Built-in Audio – Captures ambient sounds for enhanced security awareness.
Technical Specifications
| Brand | Dlink |
| Model No | DCS-F5614-L1 |
| Model Name | 4MP Fixed IP Dome Camera |
| Image Sensor | 1/2.7″ Progressive scan CMOS Progressive |
| Min. Illumination | 0.01lux (Color), 0lux (IR on) |
| Shutter Time | Auto/Manual, 1/3~1/10000s |
| Lens | 3.6 mm@F2.0: horizontal FOV: 86°, vertical FOV:64.5° |
| Lens Mount | M12 |
| Day/Night | IR cut filter with auto switch |
| Wide Dynamic Range | DWDR |
| IR LEDs Length | 30M |
| Smart IR | Support |
| Video Compression | H.264/H.264+/H.265/H.265+ |
| H.264 / H.264+ | Base/Main/High profile |
| H.265 / H.265+ | Main profile |
| Video Bit Rate | 11 Kbps ~ 8Mbps |
| Resolution | MAX 4MP (2560×1440) |
| Main Stream | 50Hz: 20fps 4MP (2560 × 1440), 25fps 3MP (2048 × 1536), 25fps 1080P (1920 × 1080), 25fps 960P (1280 × 960) 60Hz: 20fps 4MP (2560 × 1440), 30fps 3MP (2048 × 1536), 30fps 1080P(1920 × 1080), 30fps 960P(1280 × 960) |
| Sub Stream | 50Hz: 25fps D1(704 × 576), 25fps, CIF (352 × 288), 60Hz: 30fps D1(704 × 480), 30fps, CIF(352 × 240) |
| Mobile Stream | Brightness/Contrast/Saturation/Hue/Sharpness |
| Image Setting | 50Hz:25fps CIF (352 × 288), 60Hz:30fps CIF (352 × 240) |
| HLC/BLC/ROI/Defog | Support / On/Off, zone configurable/ Support / Support |
| Event | Motion Detection, Video Shelter |
| Smart Functions | Area Intrusion, Line crossing |
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,DHCP,DNS,DDNS,RTP, RTSP,RTCP,NTP,IGMP,UPnP,SMTP,UPnP-TM,P2P, Bonjour,IPV6 |
| System compatibility | Onvif 2.6, Profile S, CGI |
| Security | User authentication, IP address filtering, Video mask |
| Mobile Surveillance | iPhone, iPad, Android devices |
| Communication interface | 1 RJ45 10M / 100M Ethernet Port |
| Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | DC12V ± 10% ) |
| POE Supply | PoE (802.3af) |
| Power Consumption | Max. 7W |
| Weather Proof | IP66 |
| Dimensions | 102X90(H) mm |
| Weight | 420g |
| Mobile Software | D-Link Smart CCTV App |
| Desktop Software | DSVS (D-Link Smart Video Surveillance) |
| System Requirement for Web Interface | IE |
