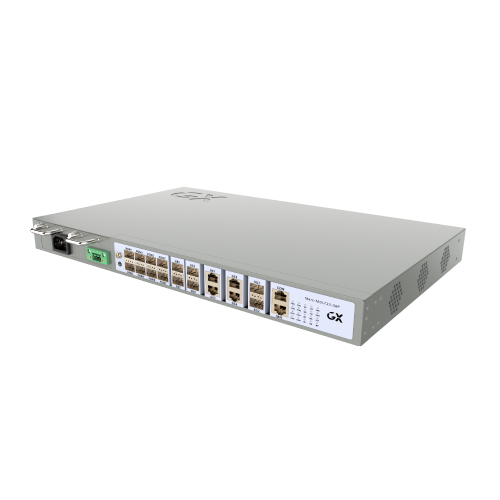

GX Mars OLT MOLT33-08P 8 PORT L3 with C++ sfp PON loaded 8 pce

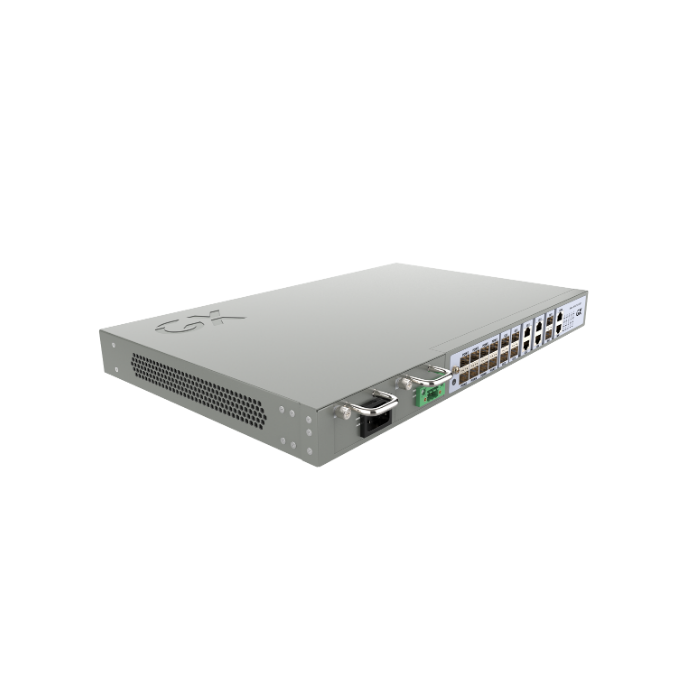

GX Mars OLT MOLT33-08P 8 PORT L3 with C++ sfp PON loaded 8 pce - Image 2

GX Mars OLT MOLT33-08P 8 PORT L3 with C++ sfp PON loaded 8 pce - Image 3

GX Mars OLT MOLT33-08P 8 PORT L3 with C++ sfp PON loaded 8 pce

Original price was: ₹175,500.00.Current price is: ₹145,999.00.

100 in stock

SKU: OLTGXGPON8PL+ Categories: GPON OLT, OLT -GPON / EPON Tags: epon olt, epon onu, gpon olt, gpon ont, xpon olt, xpon ont

Description
Reviews (0)

MOLT33-08P is the latest GPON OLT for hi-speed network bandwidth

MOLT33-08P is our latest Mars OLT meeting the requirements of ITU-T G.984/G.988 with carrier-class reliability and complete set of security functions. The compact 1U OLT provides 8 downstream GPON ports, 4 uplink GE optical port and 4 GE electrical ports with an expansion slot supporting an additional 2 x 10GE SFP+ ports.

OLT

Mars OLT

Product Features & Specifications

General Specifications

Dimensions (L x W x D) 440 x 380 x 44 mm

Weight ≤ 3 kg

Power supply AC 90 – 264 V, 47/63 Hz | DC -36 to -72 V

Power consumption (fully configured) ≤ 80 W

Swtiching Capacity 102.5 Gbps

Forward Capacity (IPv4/IPv6) 152.5 Mbps

Operating temperature -10 – 65 °C

Storage temperature -40 to 70 °C

Relative humidity 10% – 90%, non-condensing

8x GPON ports

4x GE Optical Electrical uplink ports

2x 10G uplink

OLT

Mars OLT

Product Features & Specifications

General Specifications

Dimensions (L x W x D) 440 x 380 x 44 mm

Weight ≤ 3 kg

Power supply AC 90 – 264 V, 47/63 Hz | DC -36 to -72 V

Power consumption (fully configured) ≤ 80 W

Swtiching Capacity 102.5 Gbps

Forward Capacity (IPv4/IPv6) 152.5 Mbps

Operating temperature -10 – 65 °C

Storage temperature -40 to 70 °C

Relative humidity 10% – 90%, non-condensing

Ports Interface

8x GPON ports

4x GE Optical Electrical uplink ports

2x 10G uplink

prodImg

OLT

Mars OLT

MOLT33-08P is the latest GPON OLT for hi-speed network bandwidth

MOLT33-08P is our latest Mars OLT meeting the requirements of ITU-T G.984/G.988 with carrier-class reliability and complete set of security functions. The compact 1U OLT provides 8 downstream GPON ports, 4 uplink GE optical port and 4 GE electrical ports with an expansion slot supporting an additional 2 x 10GE SFP+ ports.

Product Features

Compact 1RU 19inch design
8 GPON ports
4 GE Optical/Electrical uplink ports
2 x 10GE ports SFP+
Support B+ and C+ SFP
Web based GUI interface for NMS management

OLT

Mars OLT

Product Features & Specifications

General Specifications

Dimensions (L x W x D) 440 x 380 x 44 mm

Weight ≤ 3 kg

Power supply AC 90 – 264 V, 47/63 Hz | DC -36 to -72 V

Power consumption (fully configured) ≤ 80 W

Swtiching Capacity 102.5 Gbps

Forward Capacity (IPv4/IPv6) 152.5 Mbps

Operating temperature -10 – 65 °C

Storage temperature -40 to 70 °C

Relative humidity 10% – 90%, non-condensing

Ports Interface

8x GPON ports

4x GE Optical Electrical uplink ports

2x 10G uplink

GPON Specifications

ITU -T G.984.x compliant
Supports up to 128 x ONTs
Max. transmission distance 20km
Uplink and downlink triple churning encrypted function with 128Bits
Report illegal ONU registration ONU Terminal legitimacy certification
DBA algorithm, the particle is 1Kbit/s
Standard OMCI management function
Time upgrade, real time upgrade ONU batch software upgrade, fixed
PON port optical power detection

Product Features

Compact 1RU 19inch design
8 GPON ports
4 GE Optical/Electrical uplink ports
2 x 10GE ports SFP+
Support B+ and C+ SFP
Web based GUI interface for NMS management
