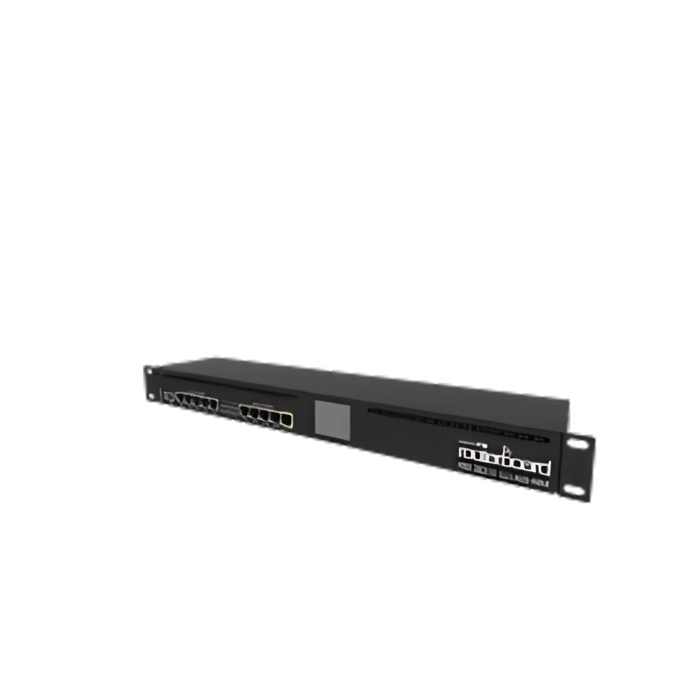

Mikrotik RB3011UiAS-RM | 10x Gigabit Router with SFP, USB 3.0, LCD & PoE-Out | 1U Rackmount

Mikrotik RB3011UiAS-RM | 10x Gigabit Router with SFP, USB 3.0, LCD & PoE-Out | 1U Rackmount

Original price was: ₹18,000.00.Current price is: ₹17,999.00.

Specifications

Details
Product code	RB3011UiAS-RM
Architecture	ARM 32bit
CPU	IPQ-8064
CPU core count	2
CPU nominal frequency	1.4 GHz
Switch chip model	QCA8337
Dimensions	443 x 92 x 44 mm
RouterOS license	5
Operating System	RouterOS v7
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-20°C to 70°C
IPsec hardware acceleration	Yes

Compare

Description
Reviews (0)

Mikrotik RB3011UiAS-RM

1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2×1.4GHz CPU, 1GB RAM, RouterOS L5

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Powering

Details
Number of DC inputs	2 (PoE-IN, DC jack)
DC jack input Voltage	10-30 V
Max power consumption	30 W
Max power consumption without attachments	10 W
Cooling type	Passive
PoE in	Passive PoE
PoE in input Voltage	10-30 V

PoE-out

Details
PoE-out ports	Ether10
PoE out	Passive PoE
Max out per port output (input 18-30 V)	600 mA
Max total out (A)	600 mA

Ethernet

Details
10/100/1000 Ethernet ports	10

Fiber

Details
SFP ports	1

Peripherals

Details
Serial console port	RJ45
Number of USB ports	1
USB Power Reset	Yes
USB slot type	USB 3.0 type A
Max USB current (A)	1

Mikrotik RB3011UiAS-RM

Details
PCB temperature monitor	Yes
Voltage Monitor	Yes
Beeper	Yes

Mikrotik RB3011UiAS-RM: Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Mikrotik RB3011UiAS-RM: Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
