Key Features
- Special designed for License plate Anti-tailgating feature to detect unauthorized people
- Crawling detection to avoid illegal intrusion
- DC brush less motor based highly reliable drive
- Alarm function in case of illegal intrusion and reverse intrusion
- Short opening times in seconds for a high through flow
- Automatic opening during power failure with battery backup

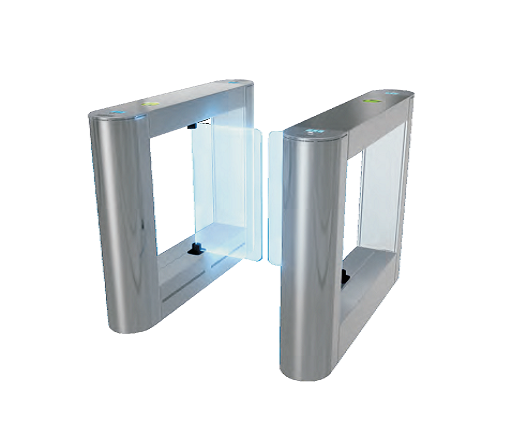

Secureye’s Swing Lane Flap Barrier is extremely graceful, elegant and secured entry equipment; designed to control pedestrians entering or exiting restricted areas. It less solution for admission control with high aesthetic and comfort requirements.
| General | |
| Mains Supply | 180 – 270V, 47 – 63Hz / 90 – 130V, 47 – 63Hz |
| Power Consumption | < 75 Watts |
| Weight | 120 Kg approx. |
| Throughput | 30 / min approx. |
| Drive | BLDC motor |
| Configuration | Fail Safe / Fail Lock |
| Access Time Out | Adjustable 1 -10 sec |
| Operating Temperature | -10° C to 55° C |
| Humidity | 95% Non-condensing |
| IP Rating | IP54 |
| Dimension (LxDx H) | 1350 x 200 x 1000mm ±5% |
| Body Type | M.S. powder coated / S.S. grade 304/316* |
| Opening time | < 1 Second |
| Passage width | 600mm / 900mm* |
| Flap/Wings | Acrylic, Polycarbonate*, Glass* |
| Optional | Queue barricade/Integration with access control |
