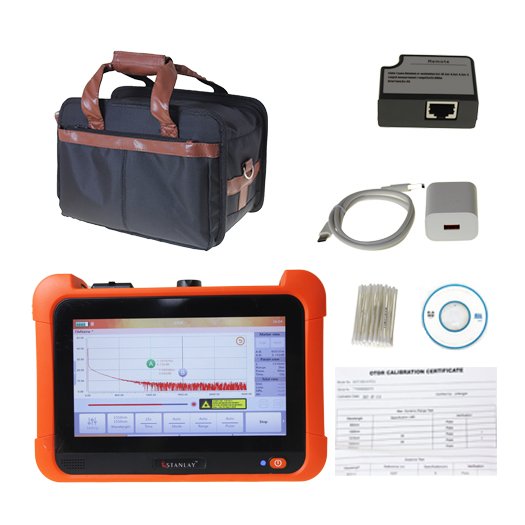

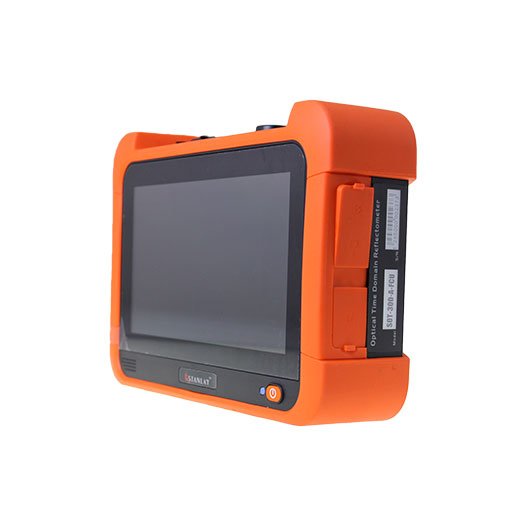

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 2

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 3

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 4

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 5

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 6

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator - Image 7

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator

Original price was: ₹325,000.00.Current price is: ₹175,000.00.

Multi touch screen LCD – 7inch
Built-in Optical light source and real-time monitoring Optical power meter, Built-in Visual fault locator
Built-in temperature test, humidity test, gradienter, ping test
Map link with pass/fail setting
OTDR self- test function
Multi-wavelength testing and display
Injection/receiving fiber settings
Optional : GPS

Category: Fiber Testing Measurements Devices Tags: Buy SOT 300 OTDR online, Optical Time Domain Reflectometer, otdr, OTDR machine, SOT 300 Optical Time Domain Reflectometer, SOT 300 OTDR, SOT 300 OTDR price, SOT300 OTDR fiber tester, STANLAY SOT 300 Optical Time Domain Reflectometer, STANLAY SOT 300 OTDR, STANLAY SOT 300 OTDR price Brand: Stanlay

Description
Reviews (0)

STANLAY SOT 300 OTDR SOT Series OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator

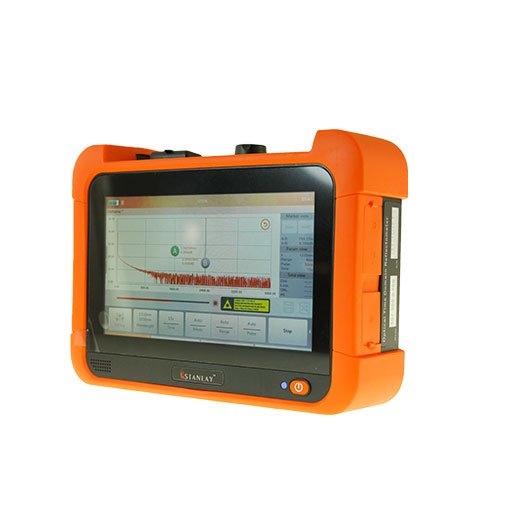

SOT Series OTDR is a full feature OTDR providing Built in Optical laser source, Optical power meter & Visual fault locator, based on a 7” multi-touchscreen.

An ideal economical OTDR Option for Service providers, Fiber roll out teams and O&M departments maintaining City/Metro Optical Fiber Cable networks , FTTX, CATV networks & Campus networks where networks distances require only 32dB or 36dB dynamic wavelength for distances ranging upto 150 kms.

SOT series Optical Time Domain Reflectometer has three wavelength options 1310 nm, 1550 nm & 1625 nm depending upon the model along with pulse width 5ns~2s. It comes with 10400mAh LG lithium-ion battery which provides longer battery life.

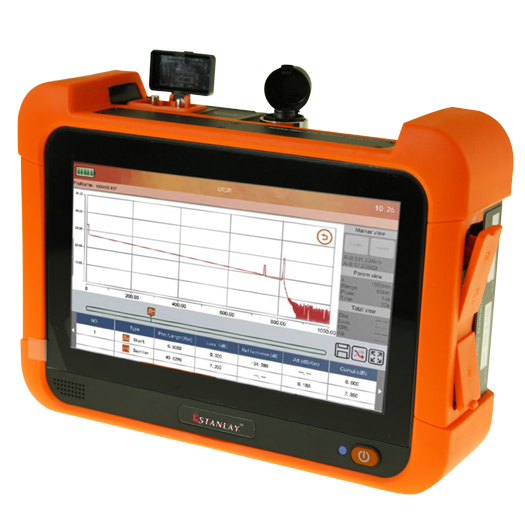

The OTDR machine offers a Link Map feature which allows an icon-based display of the tested network that identifies, displays, and labels such network elements as fiber-optic connectors, splices, macro-bends, splitters, and fiber ends.

Link map is displayed with the set’s event table to visually associate network elements to key parameters including location, loss, and reflectance.

In addition, The SOT 300 OTDR Tester has pass/fail setting options which applies to troubleshoot the network, failing events and measurements are highlighted to alert the technician to faults and their causes and allow toggle between trace and map link display at the touch of a button.

Data output is provided in a .SOR file.

Specification

Model	SOT-300-A	SOT-300-B	SOT-300-P2
Dynamic Range	32/30dB	36/34dB	36/34/34dB
Wavelength	1310/1550nm	1310/1550nm	1310/1550/1625nm(with filter)
LCD	7 inch multi-touch color screen
Pulse Width	5ns~2 s
Attenuation Dead Zone	6m
Event Dead Zone	1m
Loss Resolution(dB)	0.001
Distance Uncertainty	(0.8+0.005%*Testing distance + Resolution)

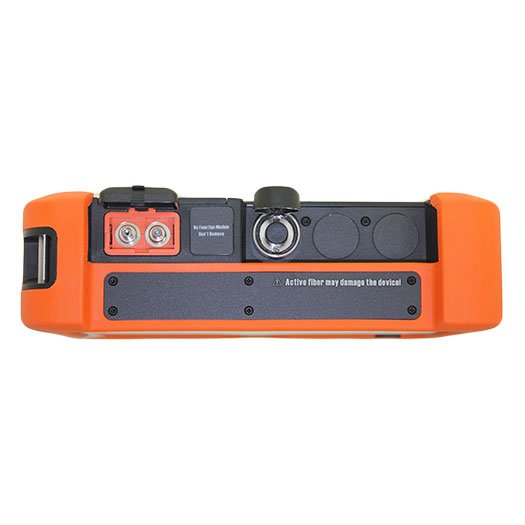

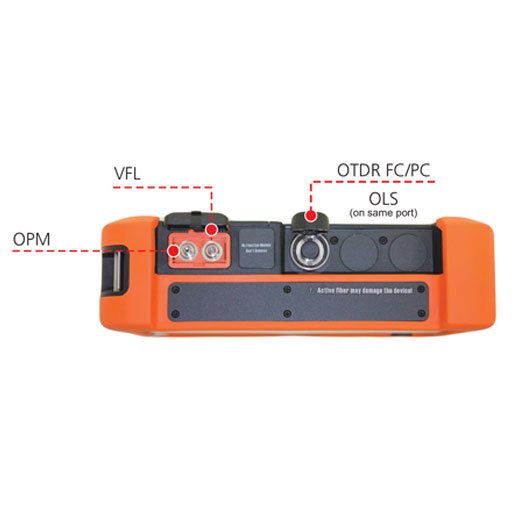

Connector	FC/UPC (1310/1550)
OLS	+same wavelength and connector as OTDR
OPM	+26~-50dBm,850/1300/1310/1490/1550/1625nm,2.5mm universal connector
VFL	10mW , 2.5mm universal connector
Storage	Internal memory or TF card (optional)
Battery	10400mAh L G lithium ion battery or latest
Size	215mm152mm64mm
Weight	About 1kg
Storage Temperature	-40~+70ºC, <95%RH
Operation Temperature	-10~+50ºC, <95%RH
