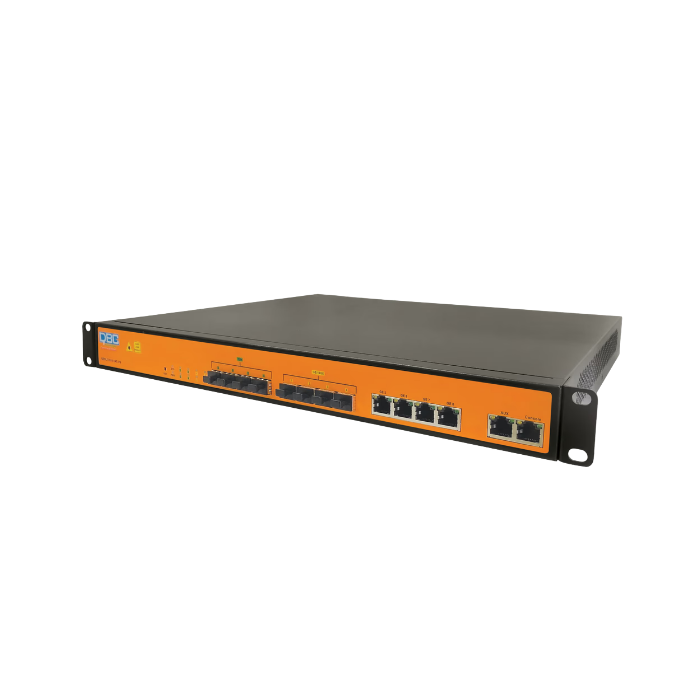

DBC 4 port EPON OLT EPOLT-3304-4TE-2AC-L3

Introducing 4 Port EPON OLT: the compact solution for high-speed Ethernet Passive Optical Network deployment. With four ports, it delivers reliable connectivity, scalability, and easy integration for modern networks. Upgrade now for seamless performance and efficiency.

Introduction:
EPOLT-3304-4TE-2AC-L3 is 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible,
easy todeploy and high performance. It is appropriate to be deployed in compact room environment. The OLT’ can be used for
“Triple-Play”, VPN, IP Camera, Enterprise LAN and Internet service provider applications.
EPOLT-3304-4TE-2AC-L3 provides 4GE(copper) and 4*SFP/SFP+ slots independent interface for uplink, and 4*EPON OLT
ports for downlink. It can support overall 256 ONU’s with 64 ONU’s per PON port.

Management Ports
• 1*10/100BASE-T out-band port,
1*CONSOLE port
PON Port Specification
• Transmission Distance: 20KM
• EPON port speed” Symmetrical
1.25Gbps
• Wavelength: TX-1490nm,
RX-1310nm
• Connector: SC/UPC
• Fiber Type: 9/125μm SMF
• TX Power: +4.5dBm~+9dBm
• Rx Sensitivity: -32dBm
• Saturation Optical Power: -8dBm
Management Mode
• SNMP/Telnet/CLI/WEB/SSH v2

Management Function

Layer 2 Feature
• 16K MAC address
• Support port VLAN and protocol
VLAN
• Support 4096 VLANs
• Support VLAN tag/Un-tag, VLAN
transparent transmission, QinQ
• Support IEEE802.3d trunk
• Support RSTP, MSTP
• QoS based on port, VID, TOS
and MAC address
• IEEE802.x flow control

• Port stability statistic
and monitoring;
• Support P2P Function
Multicast
• IGMP snooping
• 256 IP Multicast Groups
DHCP
• DHCP server
• DHCP relay
• DHCP snooping

• Fan Group Control;
• Port Status monitoring and
configuration management;
• Online ONU configuration and
management;
• User management, Alarm management

Layer 3 Features
• ARP proxy
• Static route
• 1024 hardware Host Routes
• 512 hardware Subnet Routes
• Support RIPv1/v2, OSPFv2/v3
• Support PPPoE/PPPoE+

Security Management
• Support IEEE802.1x, Radius,
Tacacs+
• Support DHCP Snooping,DHCP
Opiton82, IP Source Guard
• Support HTTPs, SSHv2
IPv6 Feature
• Support IPv6 Neighbor Discovery,
SLAAC Snooping
• Support DHCPv6 Server,DHPCv6
Relay,DHCPv6 Snooping
• Support IPV6 Static Route
• Support IPV6 Dynamic Route
Protocol: RIPng,OSPF6
• Support MLD V1/V2

• Support port-based rate limitation
and bandwidth control
• In compliant with IEEE802.3ah
standard
• Support data encryption, multi-cast,
port VLAN, separation, RSTP, etc
• Support Dynamic Bandwidth
Allocation (DBA)
• Support ONU auto-discovery/link
detection/remote upgrade of
software
• Support VLAN division and user
separation to avoid broadcast storm
• Support various LLID configuration

• Support power-off alarm function,
easy for link problem detection
• Support broadcasting storm
resistance function
• Support port isolation between
different ports
• Support ACL to configure data
packet filter flexibly
• Specialized design for system
breakdown prevention to
maintain stable system
• Support dynamic distance
calculation on EMS online

EPOLT-3304-4TE-2AC-L3

EPON Function

Technical Specifications :

• Support MLD V1/V2
• Support IPv6 ACL
• Support IPv6
SNMP,Telnet,Https,SSH
management • Support various LLID configuration
