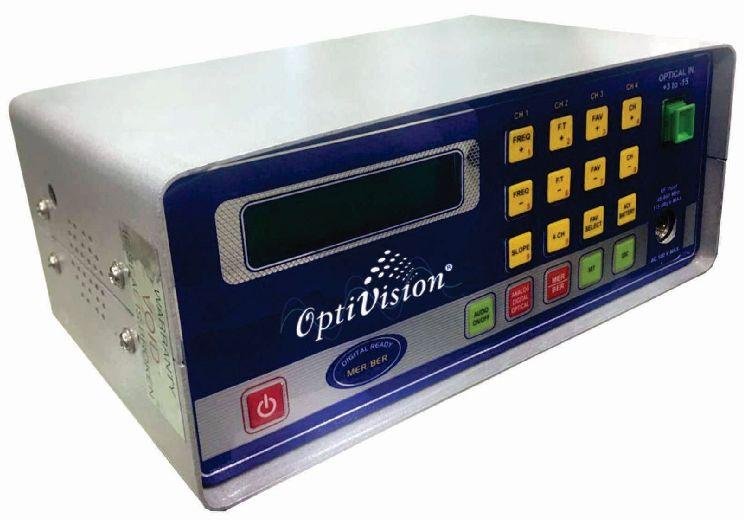

OPTIVISION Decibel Meter(6-in-1) Optical Power Tester -CATV&DVB-C

Analog CATV

• Frequency Range : 48 ~ 855 Mhz
• Level Range : 25 ~ 120 dBμV
• Accuracy : ± 2.0 dB
• RBW : 250 Khz

DVB – C

• Frequency Range : 48 ~ 860 Mhz
• Level Range : 40 ~ 110 dBμV
• Power Level Accuracy : ± 2.0
• dBMER Range : 25 ~ 40
• dBMER Accuracy : ± 2.0
• dBBER : 1E-3 ~ 1E-9
• SYMBOL RATE : 1 ~ 7.2 MSPS
• Modulation Qam Type : 16/32/64/128/256

OPTICAL POWER METER

Optical power range -15 ~ +3 dBm

Other Feature & Interface

• AC Voltage Reading : 10 ~ 90 VAC ± 2VDC
• Voltage Reading : 8 ~ 50 VDC ± 2VRF
•  Input Connector : 75 Ω F (Female)
• Battery Type : Lion 7.4 V

Accessories

Li ion Battery Charger : 1 pcs.Soft carry Case : 1 pcs.F TO F JOINTER : 1 Pcs.Manual : 1 pcs.
