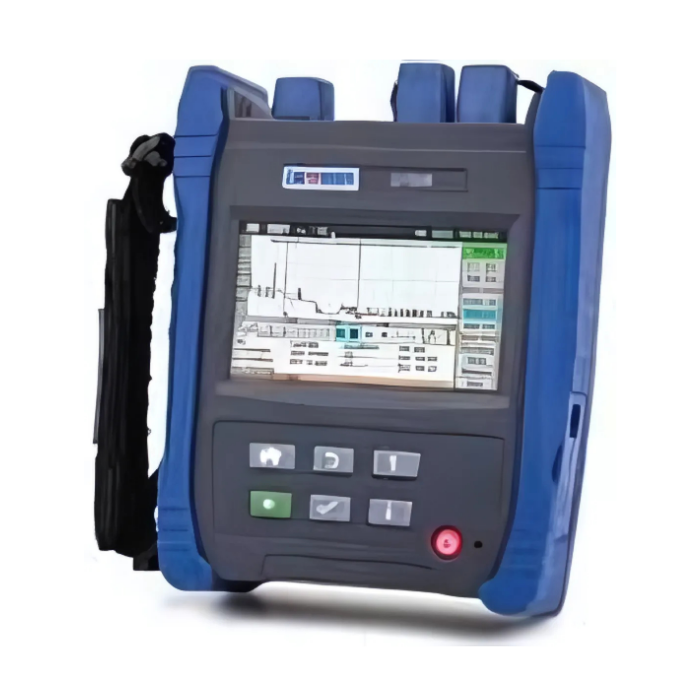

DEVISER OTDR AE1001– All-in-One FTTx Multi-Function Meter (Optical Time-Domain Reflectometer)

Overview & Purpose

The DEVISER OTDR AE1001 is a compact and rugged Optical Time-Domain Reflectometer (OTDR) designed specifically for FTTx (Fiber-to-the-X) network deployment and maintenance. Engineered with portability and simplicity in mind, it avoids unnecessary bulk and complexity—ideal for field technicians who need reliability without cumbersome gear. At under 1 kg (~2 lb), this device ensures efficient testing without fatigue or hassle.

Key Features & Highlights

1. Ultra‑portable, Field‑Ready Design

• Barely over 1 kg in weight, the AE1001 is easy to carry and operate in tight or outdoor environments.

• Its sleek, no‑fuss housing streamlines handling during live FTTx work.


2. Fast Dual-Wavelength Testing

• It supports both 1310 nm and 1550 nm wavelengths—crucial for single‑mode fiber tests.

• Capable of delivering test results in ≤ 5 seconds, it is perfect for rapid troubleshooting.


3. Stable, Long-Lasting Power

• Equipped with a 2,500 mAh Li-ion battery, providing over 4 hours of continuous testing and up to 6 hours under moderate usage.


4. Comprehensive Testing Tools: OTDR + OPM + VFL

• Beyond OTDR, the AE1001 includes:

  • A built-in Optical Power Meter (OPM) for measuring optical power levels across a broad wavelength range (850 – 1650 nm) with ±0.23 dB accuracy.

  • A Visual Fault Locator (VFL) operating at 650 nm (1 mW, Class II laser) for real-time fault pinpointing through visible red light.


5. High-Performance OTDR Capabilities

• Dynamic range: 26 dB (1310 nm) and 24 dB (1550 nm).

• Event deadzone: ≤ 3 m; attenuation deadzone: ≤ 10 m—great for detecting closely spaced splices or connectors.

• Measurement distances: From as low as 150 m to up to 80 km, with many increments in between.

• Pulse width options: 3 ns to 20 μs, allowing fine-tuned balance between resolution and range.

• Sampling: Auto or high resolution, up to 12,800 points.

• Distance uncertainty: ±(0.75 m + 0.005% × fiber length + sample resolution)—ensuring high positional accuracy.

6. User-Friendly Interface & Reporting

• A 4.3″ TFT LCD touchscreen ensures clear visibility in varied lighting conditions.

• Stores up to 160,000 OTDR traces on its 16 GB internal memory.


7. Connectivity & Build Quality

• Interfaces include USB 2.0 and optional RJ45 LAN (10/100/1000 Mbps) for data transfer and networking.

• Runs efficiently at < 3 W power consumption.

• Operates across –10 °C to +50 °C, with storage down to –40 °C and up to +70 °C—plus 0–95% non‑condensing humidity resilience.

• Compact dimensions (~180 × 145 × 55 mm), built for tough environments.


Extended Technical Specifications (Summarized)

Practical Applications & Benefits

1. FTTx Deployment & Maintenance
   Ideal for field technicians to quickly validate fiber installations, detect faults, and pinpoint losses or breaks—thanks to its rapid dual-wavelength testing and VFL support.

2. Portability for Field Work
   Lightweight and durable, it’s perfect for routine inspections, troubleshooting in trenches or aerial installations, and multi-site deployment.

3. Multi-Functionality in One Tool
   The integrated OPM and VFL eliminate the need for separate tools—streamlining workflows and reducing kit size.

4. High Accuracy in Compact Form
   Despite its size, the AE1001 offers reliable dynamic range, fine resolution, and deadzone performance needed for precise fiber diagnostics.

5. Robust Data Management
   Touchscreen interface and substantial trace storage support organized testing and retrospective analysis.

Considerations & Real-World Insights

While the AE1001 is full-featured for its class, it’s important to note limitations highlighted by industry users:

This suggests that, even for well-specified tools like the AE1001, awareness of waveform artifacts and proper technique (such as using launch cables) remains crucial for dependable diagnostics.

Availability & Pricing

In India, the AE1001 is typically priced a per unit, though prices may vary with VAT, vendor, and optional features.

Final Summary

The DEVISER OTDR AE1001 stands out as a lightweight, multi-functional, and field-ready OTDR ideal for FTTx networks. It combines quick dual-wavelength OTDR testing with built‑in optical power metering and visual fault location capabilities, all in a rugged, easy-to-operate package. With strong battery life, ample data storage, and clear touchscreen interface, it’s a robust asset for telecom technicians.

For optimum results, users should:

• Use appropriate launch cables to overcome potential dead zones.

• Stay aware of event resolution limits—especially on very short spans.

• Maintain probe cleanliness and calibrate the OPM as needed for precise measurements.
