Mikrotik RB1100AHx4 | High-Performance 1U Rackmount Router with 13 Gigabit Ports

Mikrotik RB1100AHx4 | High-Performance 1U Rackmount Router with 13 Gigabit Ports - Image 3

Mikrotik RB1100AHx4 | High-Performance 1U Rackmount Router with 13 Gigabit Ports - Image 4

Mikrotik RB1100AHx4 | High-Performance 1U Rackmount Router with 13 Gigabit Ports

Original price was: ₹29,999.00.Current price is: ₹27,999.00.

Specifications

Details
Product code	RB1100x4
Architecture	ARM 32bit
CPU	AL21400
CPU core count	4
CPU nominal frequency	1.4 GHz
Switch chip model	RTL8367
Dimensions	443 x 148 x 44 mm
RouterOS license	6
Operating System	RouterOS
Size of RAM	1 GB
Storage size	128 MB
Storage type	NAND
MTBF	Approximately 200’000 hours at 25C
Tested ambient temperature	-40°C to 70°C
IPsec hardware acceleration	Yes

Compare

Description
Reviews (0)

Mikrotik RB1100AHx4 | High-Performance 1U Rackmount Router with 13 Gigabit Ports

Introducing Mikrotik RB1100AHx4, 13x Gigabit Ethernet ports Router, powered by Annapurna Alpine AL21400 CPU with four Cortex A15 cores, clocked at 1.4GHz each, for a maximum throughput of up to 7.5Gbit. The device supports IPsec hardware acceleration (up to 2.2Gbps with AES128).

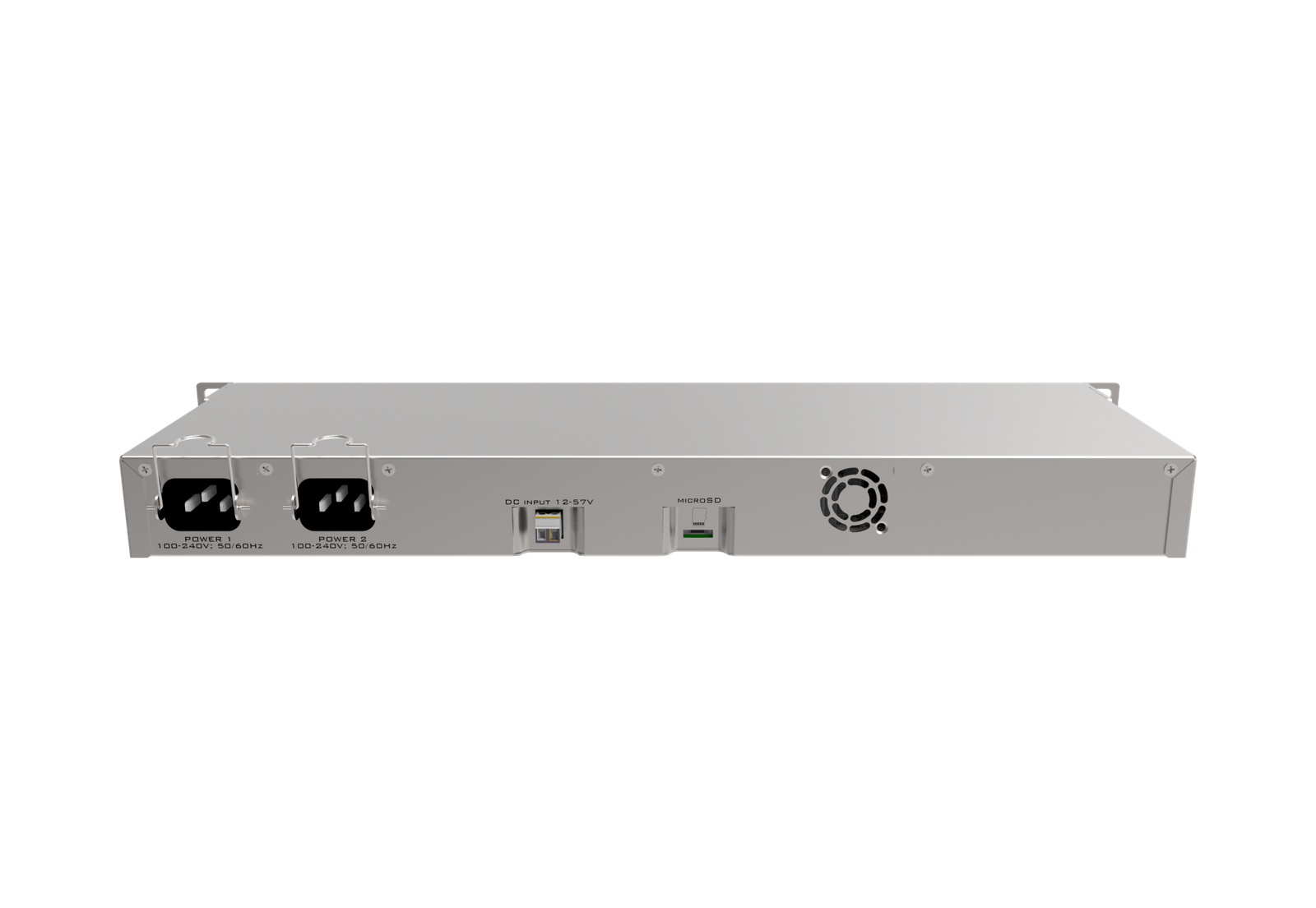

Unit comes with 1U rackmount case, RS232 serial port and dual redundant power supplies (with -48v DC telecom power and 802.3at/af support).

Powering

Details
Number of AC inputs	2
AC input range	100-240
Number of DC inputs	2 (2-pin terminal, PoE-IN)
2-pin terminal input Voltage	-48, 12-57 V
Max power consumption	20 W
Cooling type	Passive
PoE in	802.3af/at
PoE in input Voltage	20-57 V

Ethernet

Details
10/100/1000 Ethernet ports	13

Peripherals

Details
Memory card type	microSD
Memory Cards	1
Serial console port	RS232

Other

Details
Current Monitor	Yes
PCB temperature monitor	Yes
Voltage Monitor	Yes
Mode button	Yes
Beeper	Yes

Certification & Approvals

Details
Certification	CE, EAC, ROHS
IP	IP20

Included parts

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
