Signal Fire AI-5 Optical Fiber Fusion Splicer

Signal Fire AI-5 AI Fusion Splicer – Fully Automatic, 5200mAh Battery, GPS & Bluetooth

Original price was: ₹63,000.00.Current price is: ₹50,430.00.

Usage/Application	Splicing Fiber
Brand	Signal fire
Function Type	Fully Automatic

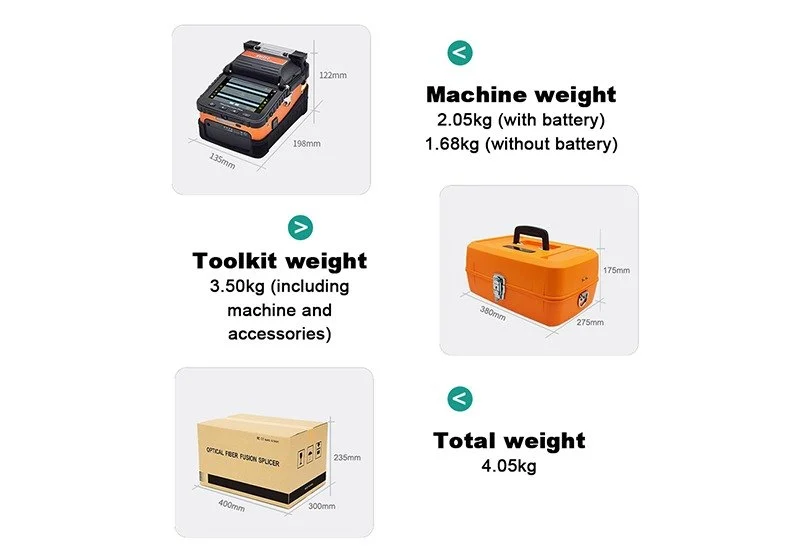

Dimensions	135mm x 198mm x 122mm
Internal Data Storage	Unlimited (Cloud Storage)
Deal In Machine Type	Artificial Intelligence Fully Automatic (Can Be Operate Manually)
Export Category	A++, Export to 120 Countries
Importer	Exclusively Import by FASTBALL in India
Price	Lowest Gauranted
Area Serve	PAN INDIA (NORTH,EAST,WEST,SOUTH)
Distributor	Available in Mumbai, Telangana, Kolkata, Delhi, Lucknow
Model	AI-5
motor	04
Splicing Type	Clad/Clad and Core/Core both
GPS	Available (latitude/longitude co-ordinates)
Locking facility	Available (Timewise Lock also Available)
Battery	5200mAH Lithium-ion
shock Proof	Yes
Dust Proof	Yes
Water Resistance	Yes
Drop Test	1.5 mtr
Body Type	Fully Metal Body (Design by Japanese)
Mobile App	Available (iOS/Android both)
Bluetooth	Available
Self Learning	Available (Complete Guide Available Foe Fresh Splicer)
Competitor	No Competiton in This Category (World Frist Artificial Intelligence Machine)

Categories: Fiber Testing Measurements Devices, SPLICING MACHINE Tags: AI-5 fiber jointing device, AI-5 fiber splicer, Buy Signal Fire AI-5 fusion splicer online, Core alignment splicing machine, fiber cable joint machine, Fiber cable jointing machine, Fiber fusion machine with touchscreen, Fiber Fusion Splicer, Fiber optic fusion splicer, Fiber optic splicing equipment, Fiber splicer dealer, Fiber splicer machine IndiaFiber splicer machine India, fiber splicing tool India, FTTH fusion splicer, FTTH splicer tool, FTTH tool supplier, Fusion splicer for fiber network, Fusion splicer for ISP, Fusion splicer for telecom, fusion splicer kit, Optical Fiber Splicing Machine, optical splicer, Portable fiber splicer, Signal Fire AI-5, Signal Fire AI-5 fusion splicing tool, Signal Fire distributor, Signal Fire fiber splicer, Signal Fire splicing machine supplier, SPLICING MACHINE, Splicing machine for BSNL, Splicing machine for BSNL / JioFiber, Splicing machine for JioFiber, Splicing machine for optical fiber Brand: Signal Fire

Description
Reviews (0)

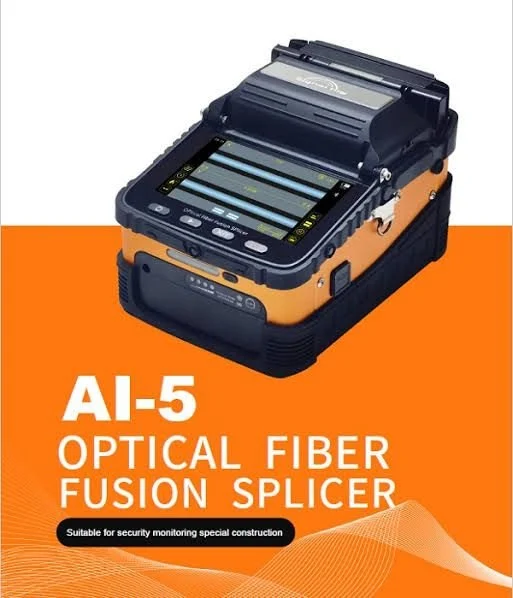

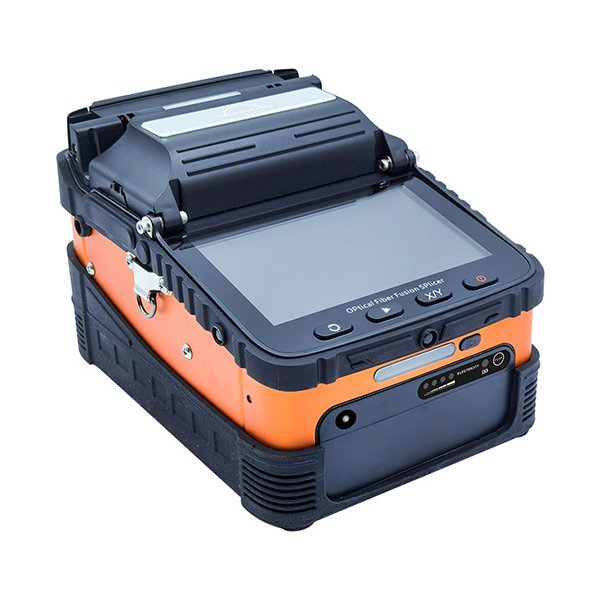

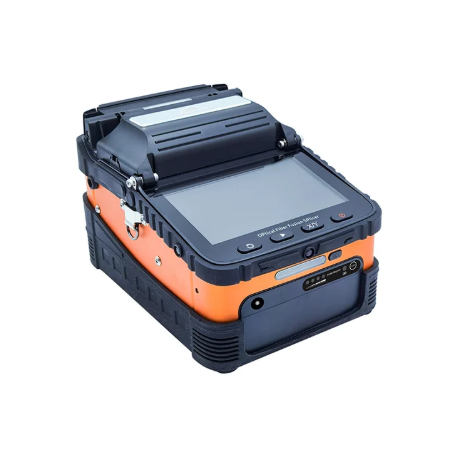

Signal Fire AI-5 Optical Fiber Fusion Splicer

The Signal Fire AI-5 Fusion Splicer is a next-gen, AI-powered fiber splicing machine, engineered for both professionals and newcomers. Thanks to its intelligent auto-alignment system, 4 high-precision motors, and 320x magnification, it delivers fast and accurate splicing within just 8 seconds.

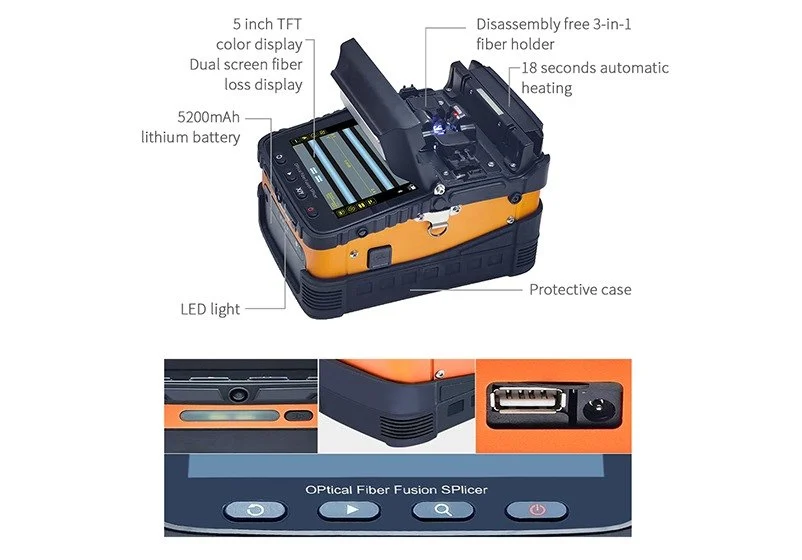

Moreover, it features a 5-inch color screen, intuitive interface, and durable metal body that withstands dust, water, and shock. With Bluetooth and GPS support, real-time monitoring and location-based operations become effortless. The 5200mAh battery ensures up to 160 splicing cycles per charge, ideal for fieldwork.

Additionally, the companion mobile app allows you to manage, update, and operate the splicer remotely. Whether you’re working on security systems, telecom lines, or enterprise networking, the Signal Fire AI-5 Fusion Splicer delivers unbeatable performance and reliability — all at the lowest guaranteed price in India.

Specifications – Signal Fire AI-5

Specification	Details
Brand	Signal Fire
Model	AI-5
Function Type	Fully Automatic (AI-Based), Manual Option Also Available
Usage/Application	Optical Fiber Splicing
Splicing Type	Clad/Clad and Core/Core
Fiber Alignment	Core/Cladding
Motor Count	4 Motors (0.5μm accuracy)
Splicing Time	8 Seconds
Heating Time	18 Seconds (Adjustable)
Battery Capacity	5200mAh Lithium-ion (Up to 160 cores per charge)
Charging Time	≤ 3.5 Hours
Internal Storage	1,000 Local Sets + Unlimited Cloud Storage
Screen	5-inch TFT Color Display
Magnification	320X (Single Axis), 160X (Dual Axis)
Applicable Fibers	SMF, MMF, BIF, Drop Cable, Tail Fiber, Invisible Fiber
Fiber Diameter	Cladding: 80~~150μm; Coating: 100~~1000μm
Fiber Cleave Length	8–16mm (<250μm); 16mm (250–1000μm)
Splicing Loss	0.02dB (SM), 0.01dB (MM), 0.04dB (DS/NZDS)
Fiber Holder	3-in-1 Holder (250μm, 900μm, 2mm/3mm/Flat Drop Cable)
Heat Shrink Tube Sizes	25mm, 40mm, 50mm, 60mm
Tension Test	Standard 2N
Return Loss	>60dB
Protection	Waterproof, Dustproof, Shockproof
Drop Resistance	Up to 1.5 Meters
Body Material	Full Metal (Designed in Japan)
Bluetooth	Yes (v4.2, 60m Range)
GPS	Yes (Real-time Latitude/Longitude)
Mobile App	Yes (iOS & Android)
Software Upgrade	Via Mobile App, Bluetooth Sync
USB Port	Type-A – Supports Mobile Charging & External LED

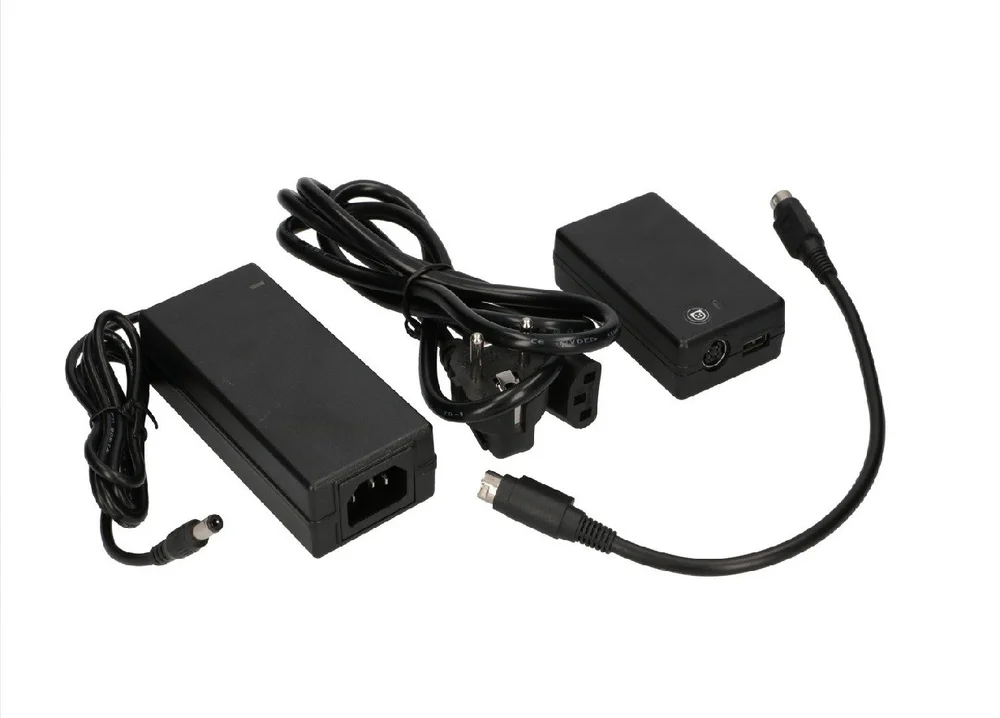

Power Input	100–240V AC, 50/60Hz
Power Output	13.5V DC / 4.8A
Operating Temperature	-15°C to +50°C
Humidity Tolerance	0–95% RH
Altitude Range	0–5000 meters
Wind Resistance	≤ 15m/s
Boot Time	1 Second
Wireless Communication	Bluetooth 4.2 (2.4GHz, Up to 60m)
Remote Management	Yes – Welding Log, Usage, Time Tracking via App
Importer (India)	Exclusively Imported by FASTBALL
PAN India Support	North, South, East, West (Distributors in Delhi, Mumbai, Kolkata, etc.)
Competitor Claim	World’s First AI Fusion Splicer – No Competition in this Category
