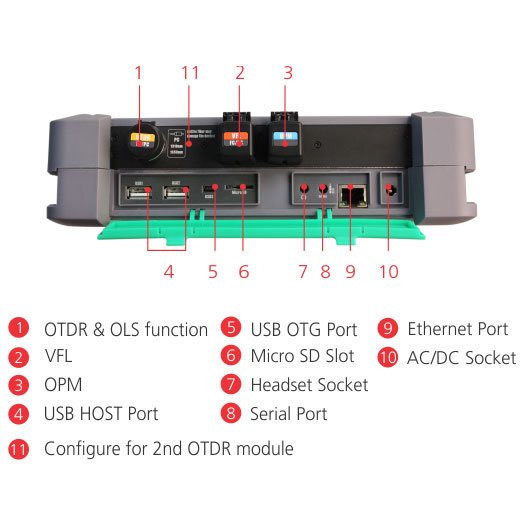

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 2

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 3

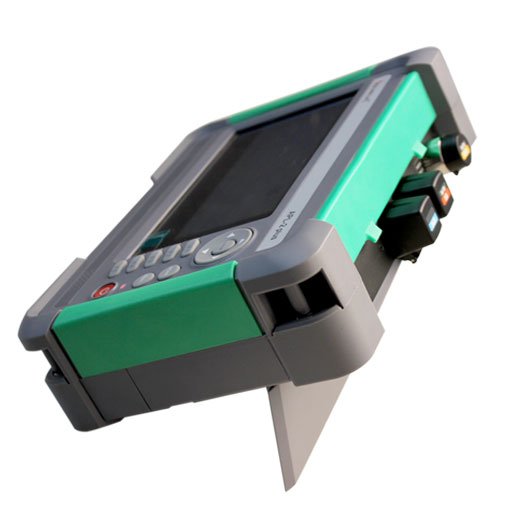

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 4

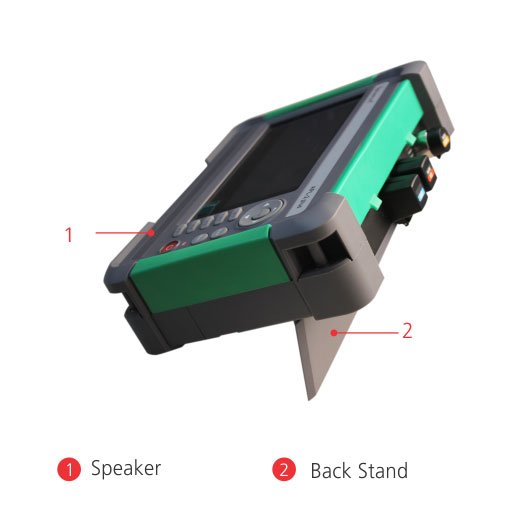

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 5

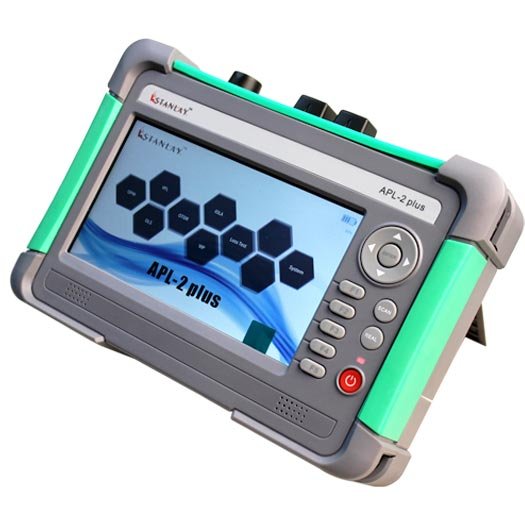

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 6

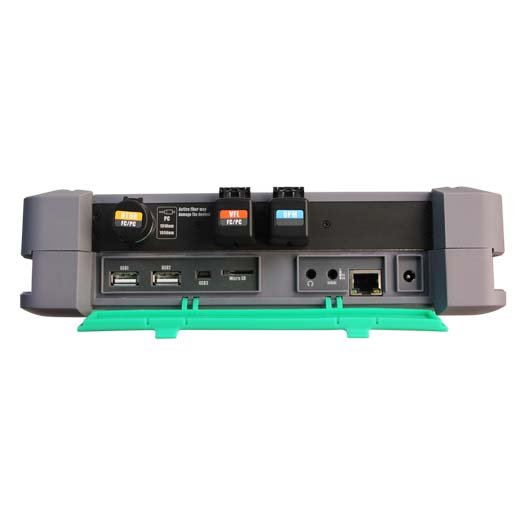

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing - Image 7

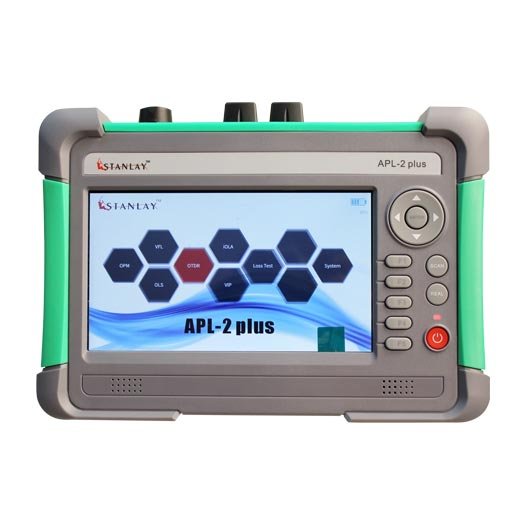

Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing

Name: Stanlay APL-2+ 7 inch Advanced OTDR with dynamic range up to 45 dB for long distance fiber testing
Brand: Stanlay
SKU: 22009
Availability: InStock

Original price was: ₹345,000.00.Current price is: ₹245,000.00.

APL 2 Plus OTDR is a multi touch screen platform OTDR, feature rich with built in optical light source, optical power meter & visual fault locator, for testing of terrestrial, long distance or datacom optical fiber networks.

APL 2 Plus is available in Single mode, Multimode and PON model variant with the option to customize the OTDR for availability of up to 5 wavelengths (by configuring up to 2 distinct OTDR modules in the same OTDR unit). APL 2 Plus offers 40 dB, 43 dB & 45 dB dynamic range options for long distance terrestrial fiber network testing.

Multi touch screen LCD – 7inch
Built-in Optical light source and real-time monitoring Optical power meter, Built-in Visual fault locator
Built-in temperature test, humidity test, gradienter, ping test
Map link with pass/fail setting
OTDR self- test function
Multi-wavelength testing and display
Injection/receiving fiber settings
Optional : GPS

Compare

Category: Fiber Testing Measurements Devices Tags: APL2+ OTDR, APL2+ OTDR 7 inch touch screen, APL2+ OTDR built-in OPM and VFL, APL2+ OTDR datasheet, APL2+ OTDR manual PDF, APL2+ OTDR price in India, APL2+ OTDR specifications, APL2+ OTDR Stanlay, APL2+ OTDR with visual fault locator, otdr, STANLAY OTDR Brand: Stanlay

Description
Reviews (0)

Stanlay APL-2+ 7 inch Multi Touch Screen Optical Time Domain Reflectometer

APL2+ OTDR

Brand	Stanlay
Touch Screen	7-inch colour LCD,Multi-touch screen
Model	APL-2
Connector	FC/PC (850/1300/1310/1550),FC/APC (1625) interchangeable adapter or customize
Pulse Width	5ns,10ns,25ns,50ns,100ns,250ns,500ns,1us,2.5us,5us,10us,20us
Attenuation Dead Zone	4.0 m
Event Dead Zone	1.5 m
Min Distance Resolution	0.1 m
Loss Resolution	0.001 dB
Distance Uncertainty	+-(0.8+0.005% x Testing Distance + Resolution)
OPM Function	T+8~-70dBm or C+26~-50dBm,850/1300/1310/1490/1550/1625nm,FC or SC adapter
VFL Function	1 mW
Storage	>10000 results
Battery	7.4V/4.6AH Rechargeable lithium-ion batteries
Dimension	246.5mm x 173.5mm x 70mm
Weight	About 1.55 kg
Storage Temperature	-20 to +60 deg C,< 90%RH
Operation Temperature	-10 to +50 deg C,< 90%RH

APL-2 Optical time Domain Reflectometer is color multi-touch screen platform OTDR with inbuilt standard optical power meter and visual fault locator. APL-2 can measure the length to a fault or the length of single mode and multimode fiber optic cables, also can test through splitter.

Features:
